SM-6000
Libérez-vous des limites. Libérez-vous du statu quo.
Dimensions
Spécification
Portées | Max 6kg | Max 15kg/ 30lb | Max 30kg | |
---|---|---|---|---|
Mono échelon | 1/ 3,000 | e = 2g | e = 5g/ 0.01lb | e = 10g |
1/ 6,000 or 1/ 7,500 | e = 1g | e = 2g | e = 5g | |
Portées | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
Multi echelons | 1/ 3,000 | e = 1/ 2g | e = 2/ 5g | e = 5/ 10g |
General
Résolution écran | 1/3,000, 1/6,000, 1/7,500 | ||||
---|---|---|---|---|---|
Nombre de touches | 18 × keypad (For 8" Operator only) | ||||
Ticket linerless | Linerless with Auto-cutter | ||||
Diamètre rouleau ticket linerless | Max 95mm | ||||
Largeur d'impression ticket linerless | Max 60mm | ||||
Largeur rouleau ticket linerless | Max 62mm | ||||
Vitesse d'impression ticket linerless | Max 150mm / second* | ||||
Resolution d'impression | 300 dpi | ||||
Energie | Compile to 80PLUS Power Saving** | ||||
Température de fonctionement | -10°C to +40°C | ||||
Humidité de fonctionnement | 15% to 85% RH Non-Condensation | ||||
Ports | Ethernet 10 /100 Base T, 4×USB 2.0, RJ11 |
** 100-120Vac Gold (Amérique du Nord, Canada et Japon)
210-240Vac Silver (Europe, Royaume-Uni et la plupart des pays d’Asie)
Model | Type | Dimensions LxPxH (mm) |
Ecran vendeur | Ecran client | Poids net |
---|---|---|---|---|---|
SM-6000 EV | Clavier haut | 364 x 464 x 606 | 8" TFT WVGA tactile (480 x 800) |
8" TFT WVGA (480 x 800) |
13.3 kg |
SM-6000 EV PLUS | 411 x 460 x 766 | 15" TFT XGA (768 x 1024) |
14.9 kg | ||
SM-6000 EV (15) | 411 x 464 x 762 | 15" TFT XGA tactile (768 x 1024) |
8" TFT WVGA (480 x 800) |
14.9 kg | |
SM-6000EV (15) PLUS | 411 x 460 x 766 | 15" TFT XGA (768 x 1024) |
17.4 kg | ||
SM-6000 EV HC | Clavier latéral | 518 x 284 x 429 | 8" TFT WVGA tactile (480 x 800) |
8" TFT WVGA (480 x 800) |
12.5 kg |
SM-6000 EV HC PLUS | 636 x 284 x 459 | 15" TFT XGA (768 x 1024) |
14.1 kg | ||
SM-6000EV (15) HC | 586 x 284 x 576 | 15" TFT XGA tactile (768 x 1024) |
8" TFT WVGA (480 x 800) |
14.1 kg | |

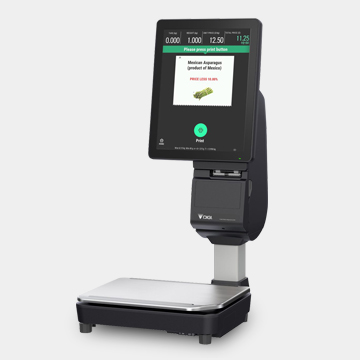

SM-6000 SSP | Libre-service | 364 x 464 x 762 | ― | 14.9 kg | |
SM-6000 SSR (8) | 515 x 284 x 549 | 8" TFT WVGA tactile (480 x 800) |
13.7 kg | ||
SM-6000 SSR (15) | 583 x 284 x 708 | 15" TFT XGA tactile (768 x 1024) |
15.6 kg |
