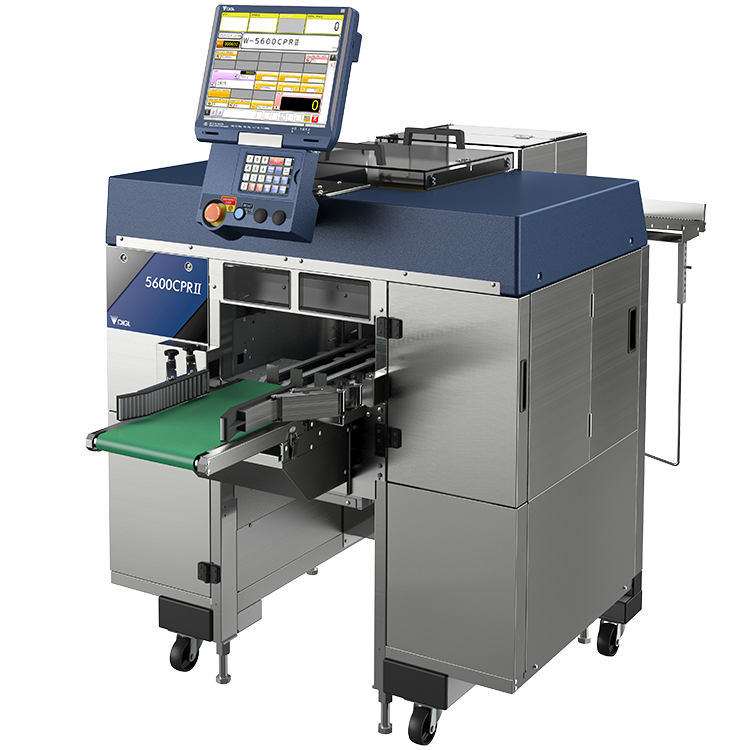

W-5600CPRII
The latest in-line automatic wrapping solution
Dimensions
Wrapping
Wrapping Speed | Max. 30 packages/min. |
---|---|
Package Size | Width: 130-350 mm/ 5.1-13.8 inches Height: 10-150 mm/ 0.4-5.9 inches Depth: 80-230 mm/ 3.1-9.0 inches Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated. The available sizes of package also depends on the film size. |
Film width | One |
Film Size | 300 to 500 mm |
Operation console
Display panel | TFT LCD color (15 inches) touch panel |
---|---|
Operation keys | Mechanical keys and touch screen |
Mechanical keys and touch screen | 18 GB |
General
Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW 220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW |
---|---|
Net Weight | Approx. 340 kg |
