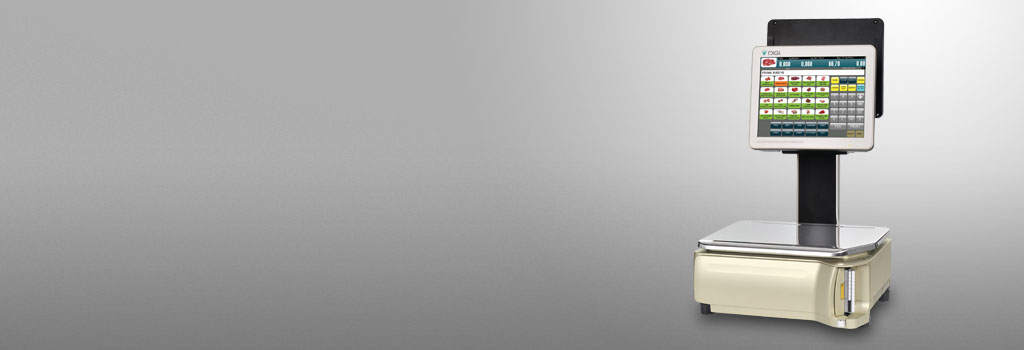

SM-5500G

PC based system scale with outstanding advanced features

Dimensions

Elevated Type (12.1") PLUS

*Elevated Type (12.1") PLUS

Elevated Type (12.1") PLUS

*Elevated Type (12.1") PLUS

sm5500G_WP05_03

Weighing

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g


General

Display Resolution 1/ 3,000, 1/ 6,000, 1/ 7,500
Number of Preset Keys 28 Preset Keys/ 23 Alphanumeric Function Keys (For 7" Operator WVGA with Touch)
Liner Label/ Receipt Roll Diameter 125mm (max)
Linerless Label/ Receipt Roll Diameter 95mm (max)
Liner Label/ Receipt/ 2nd Receipt Paper Width 80mm (max)
Linerless Label/ Receipt/ 2nd Receipt Paper Width 60mm (max)
Liner Label & Linerless Label/ Receipt/ 2nd Receipt Printing Speed Up to 150mm/s*
Power Source AC 100/ 110/ or 220/ 230/ 240 Volts (50/60Hz) Auto Switch
Operating Temperature -10°C to +40°C
Humidity 15% to 85% RH
Standard Interface RS232C, Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11
* To achieve maximum high speed, high sensitivity thermal paper is necessary. Contact DIGI for details.


Model Type Dimension WxDxH (mm) Operator display Customer display Net weight
SM-5500G B Bench 385x446x148 7" with Touch (800x480) 7" WVGA (800x480) 12.0 kg
SM-5500G B (12.1) 385x507x148 12.1" TFT SVGA with Touch (800x600) 16.4 kg
SM-5500G P Pole 385x446x581 7" with Touch (800x480) 14.3 kg
SM-5500G P (12.1) 385x559x581 12.1" TFT SVGA with Touch (800x600) 13.8 kg
SM-5500G EV Elevated 385x478x532 7" with Touch (800x480) 16.5 kg
SM-5500G EV (12.1) 385x480x568 12.1" TFT SVGA with Touch (800x600) 16.6 kg
SM-5500G EV (12.1) PLUS 385x479x651 12.1" TFT SVGA with Touch (800x600) 12.1" TFT SVGA with Touch (800x600) 20.3 kg
SM-5500G EV with 2nd printer 385x491x517 7" with Touch (800x480) 7" WVGA (800x480) 18.0 kg
SM-5500G H Hanging 359x369x883 12.1" TFT SVGA with Touch (800x600) 12.1" TFT SVGA with Touch (800x600) 16.3 kg
SM-5500G SSP (15") Self-Service 385x436x579 18.8 kg
SM-5500G MODULAR MODULAR 385X345X162 12.1" TFT SVGA with Touch (800x600) 12.1" TFT SVGA with Touch (800x600) 15.3 kg
