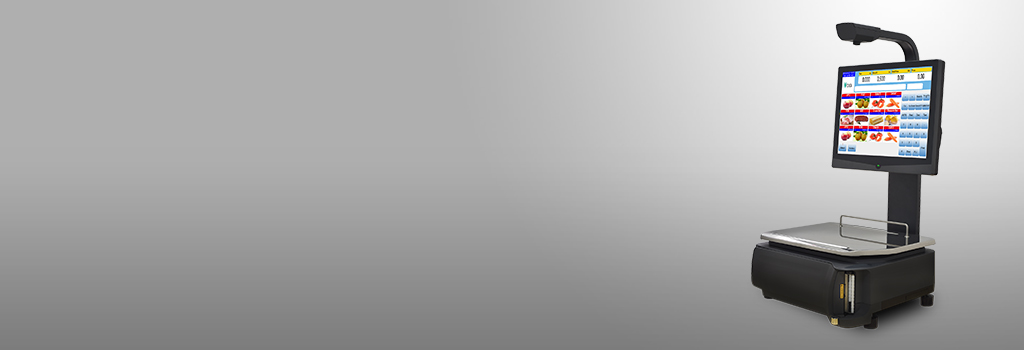

RM-5800BS AI

Easy-to-operate AI-powered self-service scale


Model RM-5800BS AI
Capacity Single Interval Type 1/6000 Max 6kg/ 6lb Max 12kg/ 12lb Max 30kg/ 30lb
e= 1 g e= 2 g e= 5 g
Multi Interval Type 1/3000 Max 3/6 kg Max 6/15 kg Max 15/30 kg
e= 1/2 g e= 2/5 g e= 5/10 g
CPU J1900 2.0 GHz
Memory 4G DDR3L (UP to 8G)
Storage 32G SSD (Optional 128G SSD)
OP Display 15 inches 1024 x 768 pixels
Touch panel Resistive Touch panel
Bottom Printer
- High reliability thermal head printer
- Resolution: 300dpi for cassette type
- Printing width: 73mm for cassette type
- Paper width: 80mm for cassette type
- Printing speed: maximum 110mm/sec
- Life span: 1 million pulses/100 km or more paper printing
- Optical size: 1/2.5 inches COMS sensor
- Sensor resolution: 2592(H) x 1944(V)
- Unit pixel dimension: 2.0um x 2.0um
- Color filter: RGB Bayer patten
- Shutter type: Electronic rolling shutter
- Maximum frame rate: 30fps@2K
- Viewing angle: 62˚
- Focus: 50-150cm
I/O 1 x RJ9 Cash Drawer, 1 x RJ45, 1 x RS232, 4 x USB2.0
Power Source AC 100V to 264V 50/60Hz
