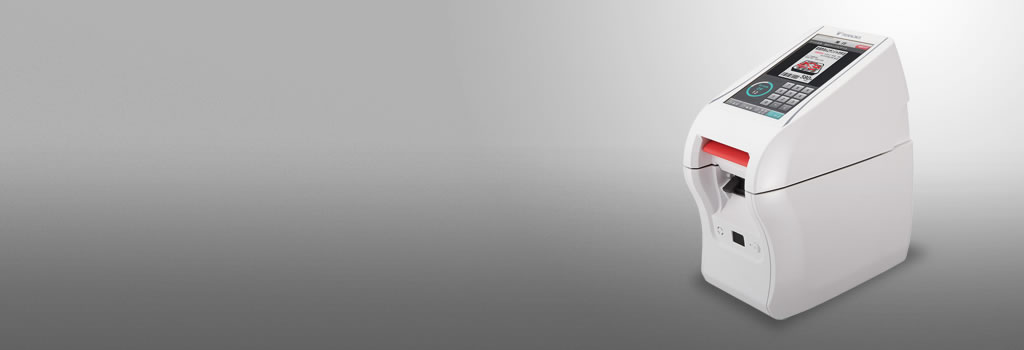

acamo (GP-1500)

Two-color Linerless label printer (red & black simultaneously) for attractive labels that add emphasis with red color. And a drop-in label roll design makes roll replacement stress-free!

Dimensions

gp1500-WP05-01
gp1500-WP05-02
gp1500-WP05-03
Display panel 7.0 inches Touch Panel LCD color with backlight, WVGA 800 x 480 dots
Method Thermal paper(Linerless labels)only
Speed 100mm/sec.
Print head width 12dot/mm.(305dpi)
Print head width 50mm.(*Maximum print width 47mm.)
Label size Width: 59mm, Length: 30 to 165mm (1roll=59mm.×50m)
Memory items 500items
Modes Linerless(Present、Automatic cut: 600,000 times)
Barcodes JAN、EAN、UPCA、UPCE、CODE39、ITF、NW7、MATRIX2of5、CODE128、EAN28
QR Code、PDF417
Fonts UND Motoya TB Ceder×6、
UND Motoya TB Mincho×6、
UND Motoya TB Maruberi×3 (Note 1)
Communication interface USB×2、LAN (Note 2)
Dimension/Net weight 142mm.(W)×250mm.(L)×280mm.(H) /5kg
Operating temperature 5 ℃ to 35℃
Operating humidity Under 80% RH (non-condensing)
Power supply AC100V±10% 50/60Hz 120W
Note 1: UND Motoya is an additional commercial font supplied by Teraoka Seiko.
Note 2: Connect a USB keyboard to input characters.
