LI-700ED-WS02

Entry level dynamic weigh price labeller

LI-700D

Food Industry

Main Features

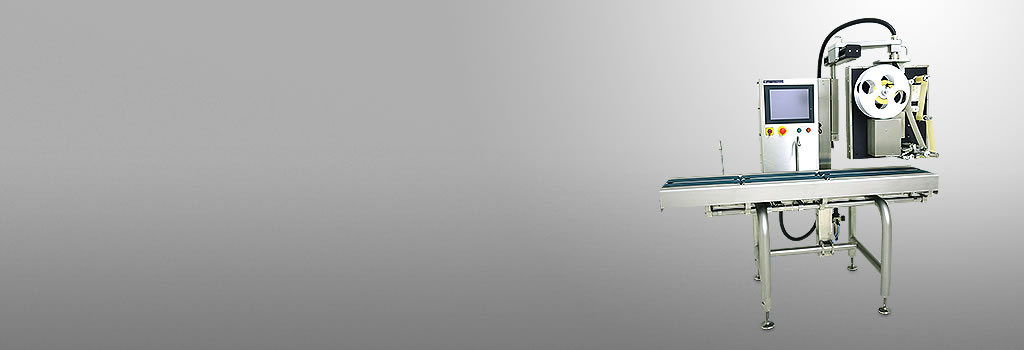

Single framed modular design dynamic weigh price labeller. This 3 conveyor machine offers an entry level dynamic weighing machine for line speeds up to 65 packs per minute.

LI-700ED-WP04-1

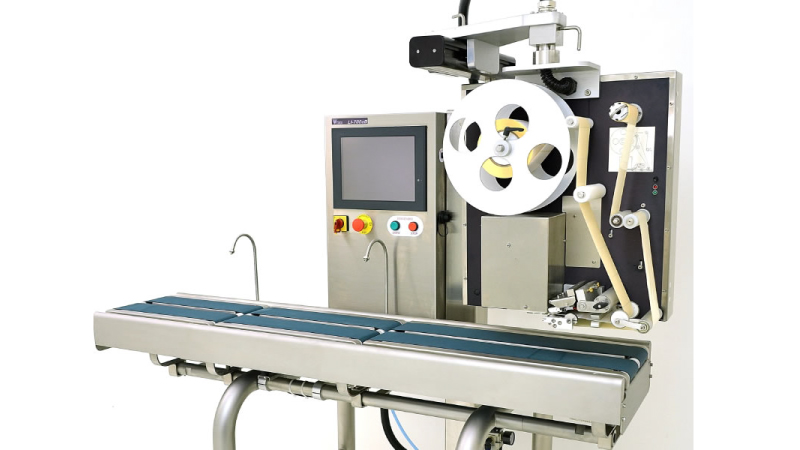

Compact design

The compact single frame design of the LI-700D allows this machine to be fitted into production lines where line length is limited. Three conveyor machine, dynamic weighing with classic labeller fitted as standard.

LI-700ED-WP04-2

LI-700D operation system

The LI-700D uses an industrial PC with IP65 ingress protection. Using embedded software on a Windows® operating system this machine offers flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring.

LI-700ED-WP04-3

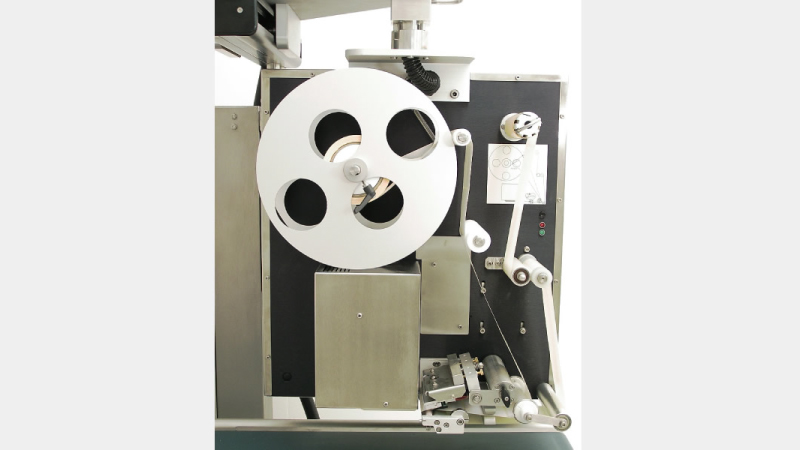

Classic labeller

The classic labeller is the standard labeller for the LI-700D.
This flexible labeller offers a choice of thermal head sizes and label applicators.

Specifications

Dimensions

  • LI-700ED-WP05-1
  • LI-700ED-WP05-2
  • LI-700ED-WP05-3

Weighing

Capacity Max 6 kg Max 10 kg
Single Interval e= 1g e=2g

Display

Screen 12.1 colour high brightness TFT LCD
Touch panel Sealed resistive touch screen

Operation and general specification

Pack speed up to 65 packs per minute (dynamic weigh)

Pack size

Pack size capable Length: 80 to 300mm, Width: 40 to 250mm, Height: 180mm maximum

for standard length scale of 470mm long

Labeller - Classic

Label size width: 30 to 120mm, Height: 28-150mm
Label roll max 300mm diameter, 76mm core, inside/outside wound
Label application system Airbox, 9 finger touch, concave shoe, stamp
Print speed 50 to 260mm/sec
Print head 80mm at 300dpi, 108mm at 300dpi

Variations

LI-700ED-WP07-1

Long scale (650mm) LI-700D

LI-700D long scale

A long scale version with a scale length of 650mm is available for the LI-700D. This allows products up to 475mm long to be weighed at a pack rate of up to 40ppm.

Options

LI-700ED-WP09-1

Labeller option - LC labeller

This labeller has an 80mm, 300dpi thermal head
Air box applicator
label size: width: 36 to 90mm, Height: 40 to 105mm
label roll: max 300mm diameter, 36mm & 76mm core, inside/outside wound
Print speed: 50 to 200mm/sec
	 LI-700ED-WP09-1

Labeller option - Cassette type

Separate cassette units are pre-loaded with the required labels to obtain quick label changes.
Hinged label applicator: allows the label applicator to be moved away from the thermal head area for good access for thermal head cleaning / inspection
Thermal head sizes: 80mm at 11.8dots/mm (300dpi)
Applicator: 11 finger touch
Label size: Width: 40 to 80 mm, Height: 28 to 80mm
Label roll: Roll diameter 190mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 200mm/sec
LI-700ED-WP09-1

Additional printers

The flexibility of the LI-700D allows other industrial type printers that support TCP/IP communication to be connected.
LI-700ED-WP09-1

Label applicators

If using the classic labeller there is a range of label applicators to reliably apply many shapes and sizes of labels to the pack.

Options

  • LI-700D-WP09-1
  • LI-700D-WP09-2
  • Gravity outfeed rollersA gravity roller kit can be fixed to the outfeed of the machine.Two lengths are available.Once fixed to the machine the angle of which the roller assembly sits can be adjusted.
  • LI-700D-WP09-4

  • Frame heightTo cater for various height production lines, there are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, the medium 850-1015mm and the tall frame option gives a conveyor height range of 945-1110mm.
  • LI-700D-WP09-6

FAQ

  • Can the flow direction of the machine be left to right or right to left?
    The machine can be built to either flow direction.
  • Can the labeller use thermal ribbon?
    A thermal transfer ribbon kit can be fitted to the Classic labeller to allow the use of thermal ribbon.
  • What is the longest pack the LI can weigh?
    The standard scale can weigh a product up to 300mm long. A long scale option is available to weigh products up to 475mm long.
  • What is the widest pack the LI can weigh?
    The conveyors can handle a pack up to 250mm wide.
