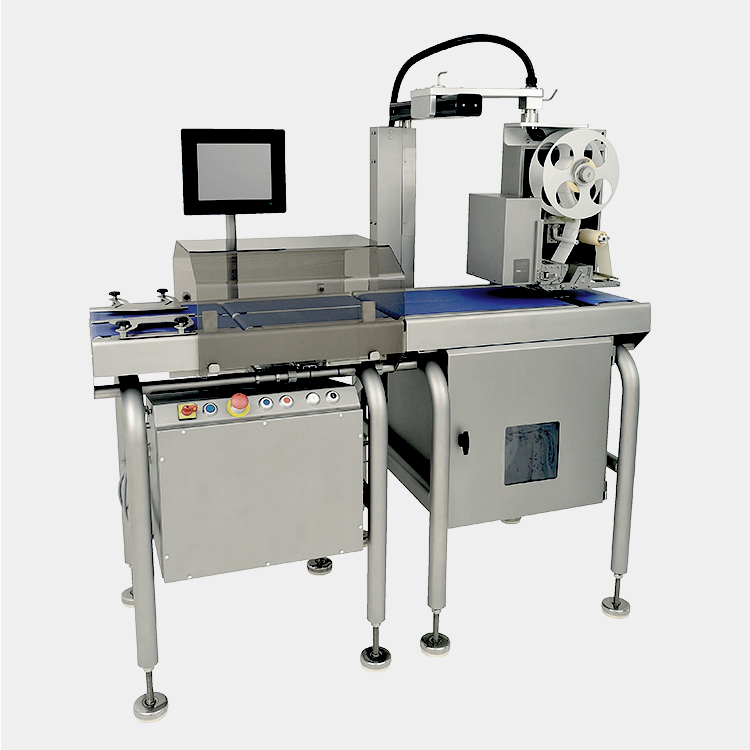

High speed dynamic weigh price labeler


Food Industry

Main Features

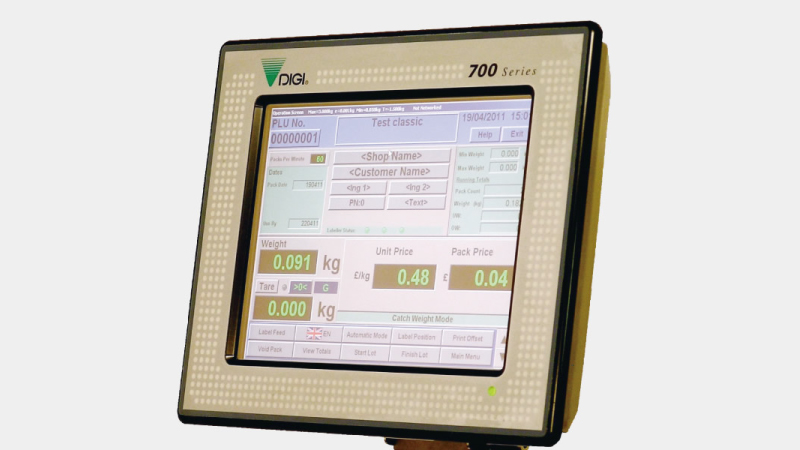

The HI-700's high speed and flexible label handling offers increased production line efficiency. The PC based machine allows easy integration with existing machines and networking. Dynamic weighing and in motion weighing with a high speed labeler allows up to 120ppm. Color touch screen for easy and quick programming and plu selection. Quick release conveyor system.


High productivity

The dynamic weighing and in motion weighing with high speed label operation allows the HI-700 to weigh and label packs up to 120 per minute.


High speed labeler

The dynamic weighing and high speed label operation allows the HI-700 to weigh and label packs up to 120 per minute.


HI-700 operation system

The DIGI-700 series uses an industrial PC utilising embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring.



  • HI-700-WP05-1
  • HI-700-WP05-2
  • HI-700-WP05-3


Capacity Max 6 kg Max 12 kg
Single Interval e= 1g or greater e= 2g or greater


Screen 12.1 colour LED display
Touch panel 12.1 pen/finger resistive type

Operation and general specification

Pack speed up to 120 packs per minute

Pack size

Pack size capable Length: 80 to 300mm, Width: 40 to 250mm, Height: 180mm maximum

for standard length scale of 470mm & standard with (250mm) scale

Labeler - high speed

Label size width: 30 to 120mm, height: 28 to 150mm
Label roll max 300mm diameter, 76mm core, inside/outside wound
Label application system 9 finger touch, Multijet air box
Print speed 50 to 260mm/sec
Print head 80mm at 300dpi, 108mm at 300dpi



Top and bottom labeling

HI-700 top and bottom labeler

One or more base labelers can be integrated into the weigh price labeler, giving the extra flexibility to label both top and under side of each pack simultaneously  The base belt applicator can feed a label 40-110mm wide and 28-130mm high.

Long scale

HI-700 long scale

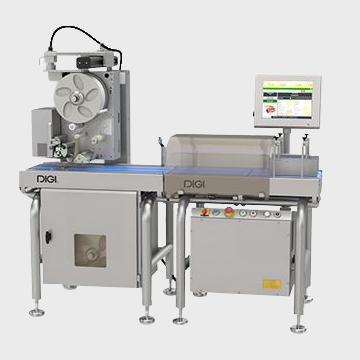

Long scale (650mm) version of the HI-700
Possible pack size: 80-475mm long
40-250mm wide
180mm maximum height

Multi labeler

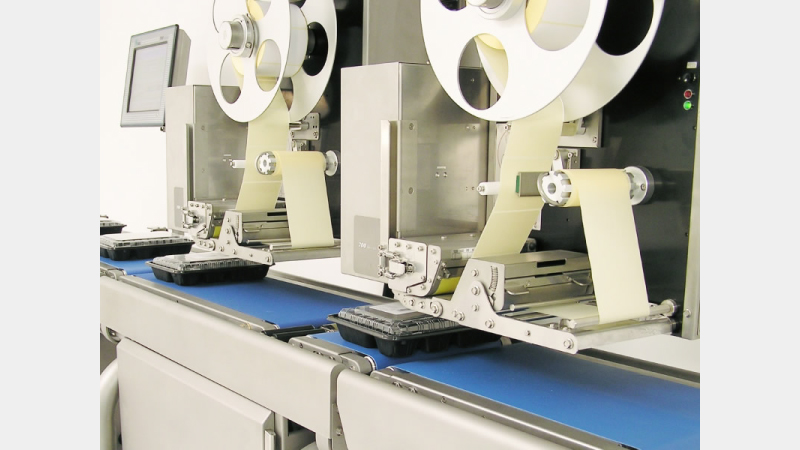

HI-700 twin top and twin base labeler

HI-700 with two top labelers and two base labelers. This system will allow auto switching of labelers when one has run out of labels.

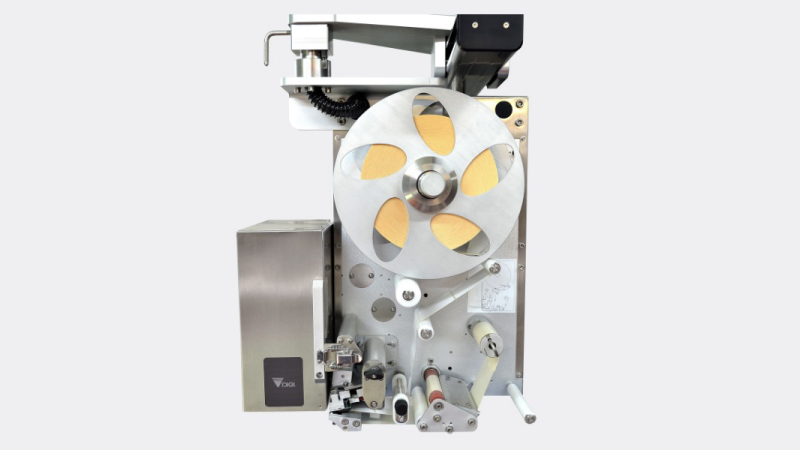

Labeler option - Classic type

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)

Applicators: touch, air box, concave shoe, stamp
Label size: Width: 30 to 120 mm, Height: 28 to 150mm
Label roll: Roll diameter 300mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 260mm/sec
Platen roller

Labeler option - Cassette type

Separate cassette units are pre-loaded with the required labels to obtain quick label changes.
Hinged label applicator: allows the label applicator to be moved away from the thermal head area for good access for thermal head cleaning / inspection
Thermal head sizes: 80mm at 11.8dots/mm (300dpi)
Applicator: 11 finger touch
Label size: Width: 40 to 80 mm, Height: 28 to 80mm
Label roll: Roll diameter 190mm, Core diameter 76mm, Outside or inside wound
Print speed: 50 to 200mm/sec

Additional printers

The flexibility of the HI-700 allows other industrial type printers that support TCP/IP communication to be connected.

Label applicators

Digi has a range of label applicators to reliably apply many shapes and sizes of labels to the pack.


  • HI-700-WP09-1
  • V deckWhen salami / sausage or a similar shaped product is to be used on the 700 series weigh price labeler (e.g. HI, MI, LI) an optional V conveyor system is available.The central part of the conveyor deck has a V shaped profile and using wider conveyor belts the product can be transferred along the V without rolling sideways.Suitable pack guides can be used to aid stability.
  • HI-700-WP09-1
  • Gravity outfeed rollersA gravity roller kit can be fixed to the outfeed of the machine.Two widths and two lengths are available.Once fixed to the machine the angle of which the roller assembly sits can be adjusted

  • HI-700-WP09-1
  • HI-700-WP09-1
  • Combination with Sleever machineThe HI-700 can be combined with sleever / C’wrap type machines.The unique software and hardware communication package combined with the ease of a multi pin connection makes the combining of these machines a trusted and reliable process.
  • HI-700-WP09-1


  • Can the flow direction of the machine be left to right or right to left?
    The machine can be built to either flow direction.
  • Can the labeller use thermal ribbon?
    A thermal transfer ribbon kit can be fitted to the Classic labeller to allow the use of thermal ribbon.
  • What is the longest pack the HI can weigh?
    The standard scale can weigh a product up to 300mm long. A long scale option is available to weigh products up to 475mm long.
  • What is the widest pack the HI can weigh?
    The standard width conveyor can handle a pack up to 250mm wide. A wide version HI is available for packs up to 410mm wide.
