Printer with multi-font capability and
LAN connector for network printing

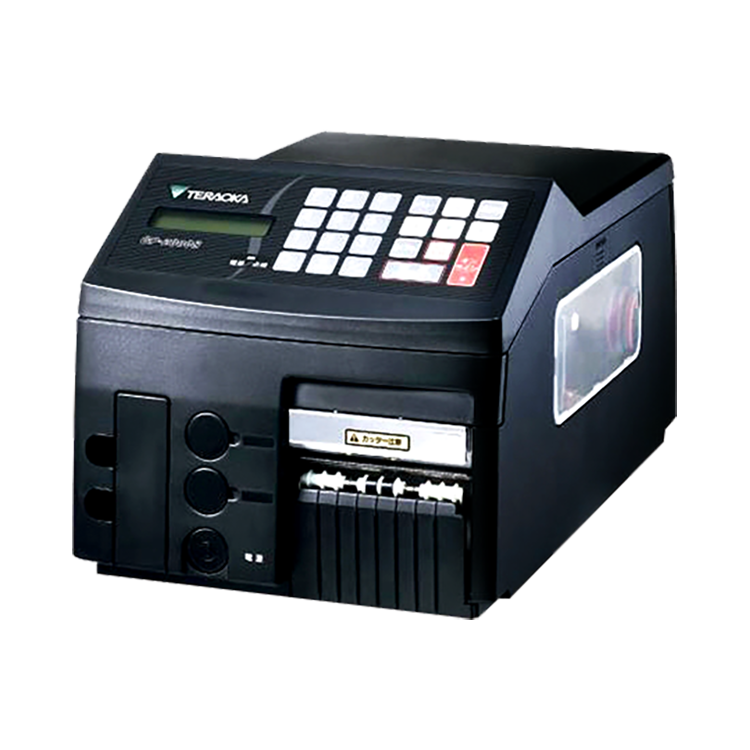

GP-2000S
LogistiekBelangrijkste kenmerken
Network label printer allows printing in a variety of text styles using fonts installed on your computer. A print density of 12 dots/mm (300dpi) assures clear print even with small characters. "Dr. Label" software for Windows® provides label management capability from label creation to printing. Together with a free printer driver, this software allows you to print labels using existing software, and can easily be introduced as a part of your system to for use in various ways.
Specificaties
Afmetingen
| Type | Normal type | Auto-cutter built-in type |
|---|---|---|
| Method | Direct thermal/ thermal transfer | |
| Speed | 70 to 150mm/sec. | |
| Print head width | 80mm | |
| Thermal head density | 12 dots/mm (300 dots/inch) | |
| Label size | Width: 20 to 80mm, Length: 23 to 500mm | |
| Memory items | 512 items (1.8MB) | |
| Modes | Present, Tear-off, Rewind (optional) | Auto-cutting, Tear-off |
| Printer driver available | Windows® 2000/XP/Vista/7(32bit) | |
| Barcodes | EAN/ UPCA/ UPCE/ CODE39/ ITF/ NW-7/ MATRIX2 of 5/ CODE128/ EAN128/ QR Code/ PDF417 | |
| Communication interface | LAN, RS-232C | |
| Operating temperature | 5℃ to 35℃(10℃ to 35℃ for thermal transfer) | |
| Operating humidity | Under 80% RH (non-condensing) | |
| Power supply | AC100V±10%(50/60Hz)/Max. 200W | |
| Net weight | 8.3kg | 8.9kg |
Variaties
Model with auto-cutter
GP-2000S with auto-cutter
This model us equipped with an auto-cutting function that automatically cuts specified quantities of labels printed. Specify this option at time of order.
Opties
External label winder for GP-2000
This is an external winding device for labels printed out by the printer.
Ink ribbon cassette for GP-2000
This cassette holds ink ribbon used in thermal transfer printing. （Shown: Cassette with red ribbon.)
Dr. Label
This Windows®-compatible label management software lets you design and print labels on a PC.
FAQ
-
Can the printer be connected to scales for printing weight data?Using the optional "Dr. Label" software (a label management application for Windows®), the printer can be used to print weight data when connected to scales such as the DS-470, DI-80, DI-170, and DC-180.
