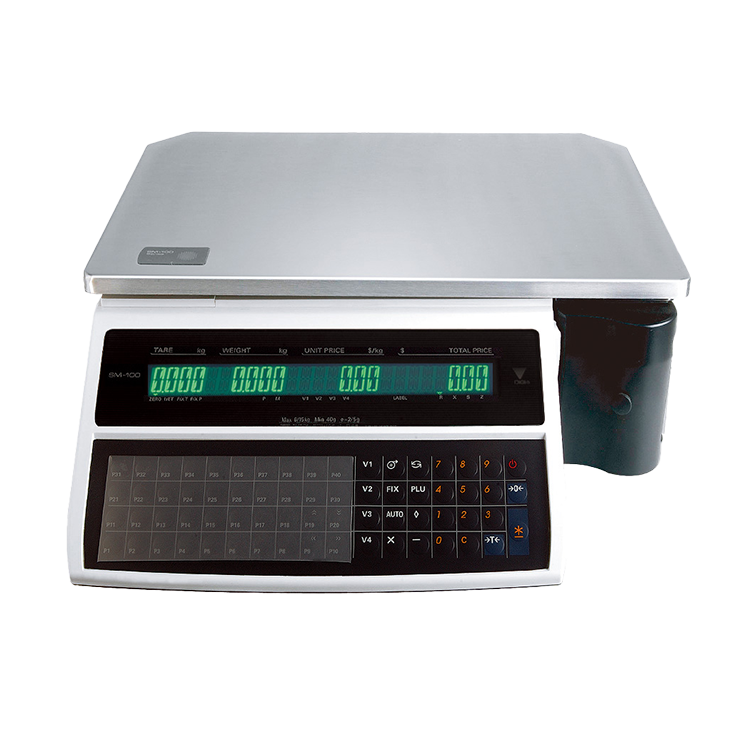

SM-100-WS02

Scale printer

SM-100

Retail

Belangrijkste kenmerken

High speed direct thermal printing with user-friendly features.

- Highly-visible 19-segment green LCD display
- Automatic date & time update with a built-in clock

Specificaties

Afmetingen

  • SM-100-WP05-1
  • SM-100-WP05-2

Weighing

Capacity 3/6kg 6/15kg 15/30kg
Multi Interval e=1/2g e=2/5g e=5/10g

Display

Operator Display 19-segment LCD with green backlight

Operation and General Specification

SM-100B SM-100P SM-100H SM-100EV
Number of Preset Keys 40 40 76 74
Memory Capacity 1MB
Standard Interface Cash Drawer, RS-232C, Ethernet

Labeling

Label Printing Size Max W: 60 x L: 220 mm
Paper Width Max 60mm
Printing Speed 80mm/sec for label, 105mm/sec for receipt

Options

Memory Expansion Board (2MB)
Wireless LAN (IEEE 802.11b)

Variaties

SM-100-WP07-1

Bench Type

SM-100B

Dimensions (mm) W: 386 x D: 416 x H: 128
SM-100-WP07-3

Pole Type

SM-100P

Dimensions (mm) W: 385 x D: 478 x H: 485
SM-100-WP07-5

Hanging Type

SM-100H

Dimensions (mm): W: 340 x D: 310 x H: 860
SM-100-WP07-7

Elevated Type

SM-100EV

Dimension (mm): W: 386 x D: 416 x H: 550
