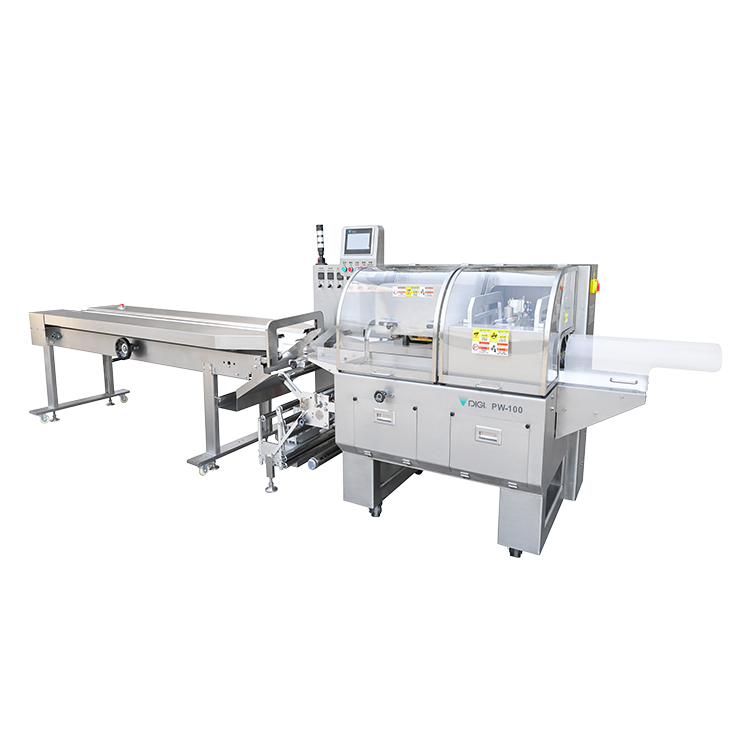

pw100_WP02_01

Fully-automated high-speed vegetable flow wrapper

PW-100

Industrie

Belangrijkste kenmerken

The PW-100 is a fully-automated high-speed vegetable flow wrapper that is especially suited for packing elongated and leafy vegetables. Advanced length-sensing technology ensures accurate and speedy packing. This product has a number of features that reduce packing errors and lock in freshness for a shelf-ready product.

PW-100 – Speedy and uniform wrapping

This flow wrapper excels at packing vegetables, such as elongated and leafy varieties. It protects the product from being damaged, giving you a fresh, long lasting and presentable product for your customers. Both POF shrink film or BOPP film options are available.

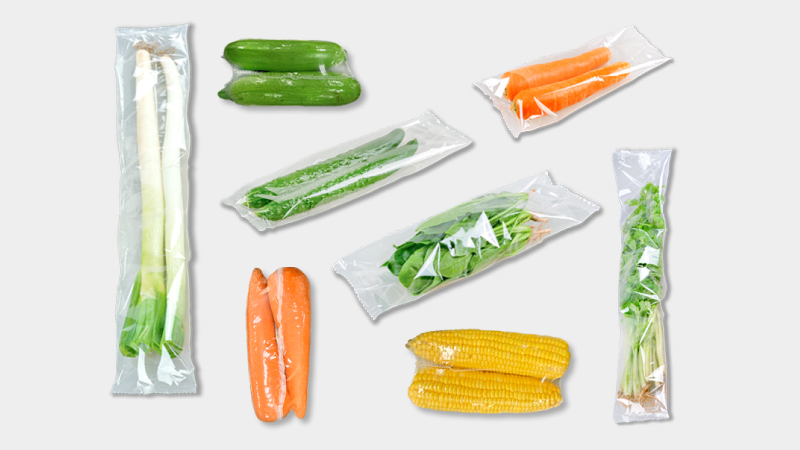

pw100_WP04_01

Advanced length-sensing & anti-pinch technology

Auto-length measuring ensures that items fit comfortably in the package, and an anti-pinch feature prevents leafy ends from being sealed. Cutting protection also keeps packed produce from being cut, assuring consistent packing quality. This feature also allows for mixed items to be packed in one line.

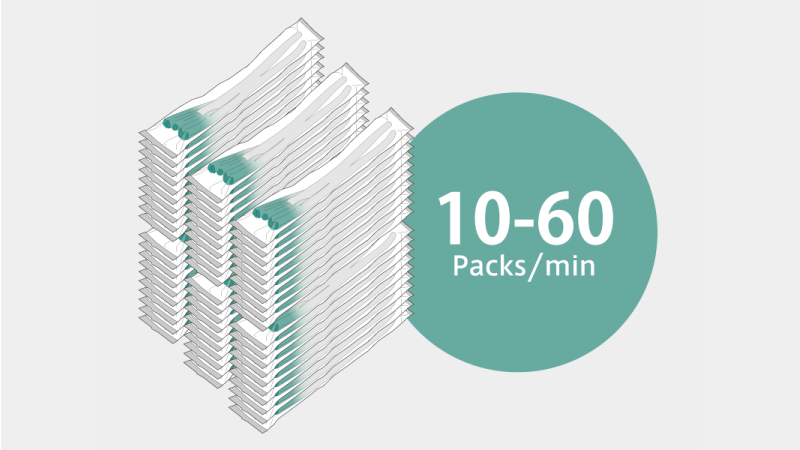

pw100_WP04_02

Ideal for elongated and leafy vegetables

PW-100 uses advanced length-sensing technology for accurate and speedy packaging. Use to pack elongated and leafy vegetables, root vegetables, and fruits at speeds of 10-60 packages per minute, and 26 meters of film per minute.

The reliability is in the hardware

Because packing is all about quality, our machinery employs technology such as double pinching roll heating and a reciprocating cutter, and large hole punch jigs which allows the produce to breathe and stay fresh.

Specificaties

Afmetingen

  • pw100_WP05_01
  • pw100_WP05_02
Type PW-100B PW-100P
Film Material BOPP POF
Structure Reciprocating
Packing Speed 10-60PPM 10-50PPM
Max Packing Size H: 130 mm
W: 280 mm W: 210 mm
Max Packing Size W: 580 mm W: 450 mm
Φ: 330 mm
Max Packing Speed 26m/min 20m/min
Cutting Length Range 180-900mm
Dimension (mm) 5062 (L) * 1000 (W) * 1530 (H)
Power Consumption 5.0kW
Power Supply AC220V 50/60Hz



Opties

Shrink Tunnel

The shrink tunnel uses heat shrinkable film that fits to the shape of the produce for enhanced presenation.

Dimension: 2850 (L) x 540 (W) x 1400 (H)
Speed: 9 - 21 (m/min)
Shrinkage size: H: 130 (mm)  W: 300 (mm)
