Main Features
ECOA delivers pure, delicious and safe water with three types of filtration systems including reverse osmosis systems. It removes most organic contaminants, such as trihalomethanes and nitrate nitrogen, as well as radioactive materials. By providing water of reliable quality to local residents, ECOA increases the frequency of customer visits and enhances your corporate image.

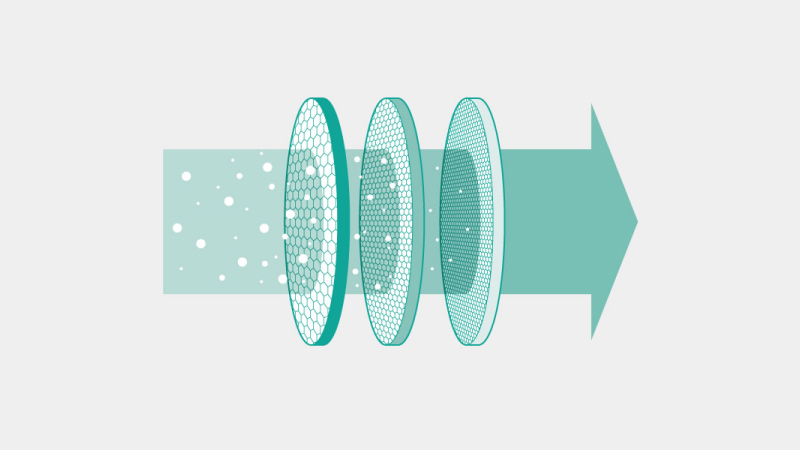

High water purification performance
Almost all organic contaminants are removed from tap water using a 3-stage filtration system. Elimination of radioactive material has also been demonstrated, with 600Bq/kg of radioactive iodine removed from tap water to the extent that it cannot be detected. (Kaken Report No. 10X03228O-2）
Safety features
Before water is dispensed, water in the system is drained so that fresh, pure water is supplied each time. A variety of functions are also provided to assure water security, including a locking mechanism for the water supply door, an automatic cleaning function for all water paths, and a UV sterilization function for caps.
Specifications
Dimensions
| Models | V100SW | V100S | V100L-SD | V100L-S | V80CⅡ |
|---|---|---|---|---|---|
| Water filling speed | 4 liters per 24 seconds | 4 liters per 48 seconds | 4 liters per 30 seconds | 4 liters per 48 seconds | 2 liters per minute |
| External dimension (mm） | W: 595 × D: 595 × H: 1830 | W: 595 × D: 595 × H: 1830 | W: 897 × D: 595 × H: 1363 | W: 897 × D: 595 × H: 1363 | W: 400 × D: 595 × H: 1450 |
Variations
Type with high-speed water dispenser

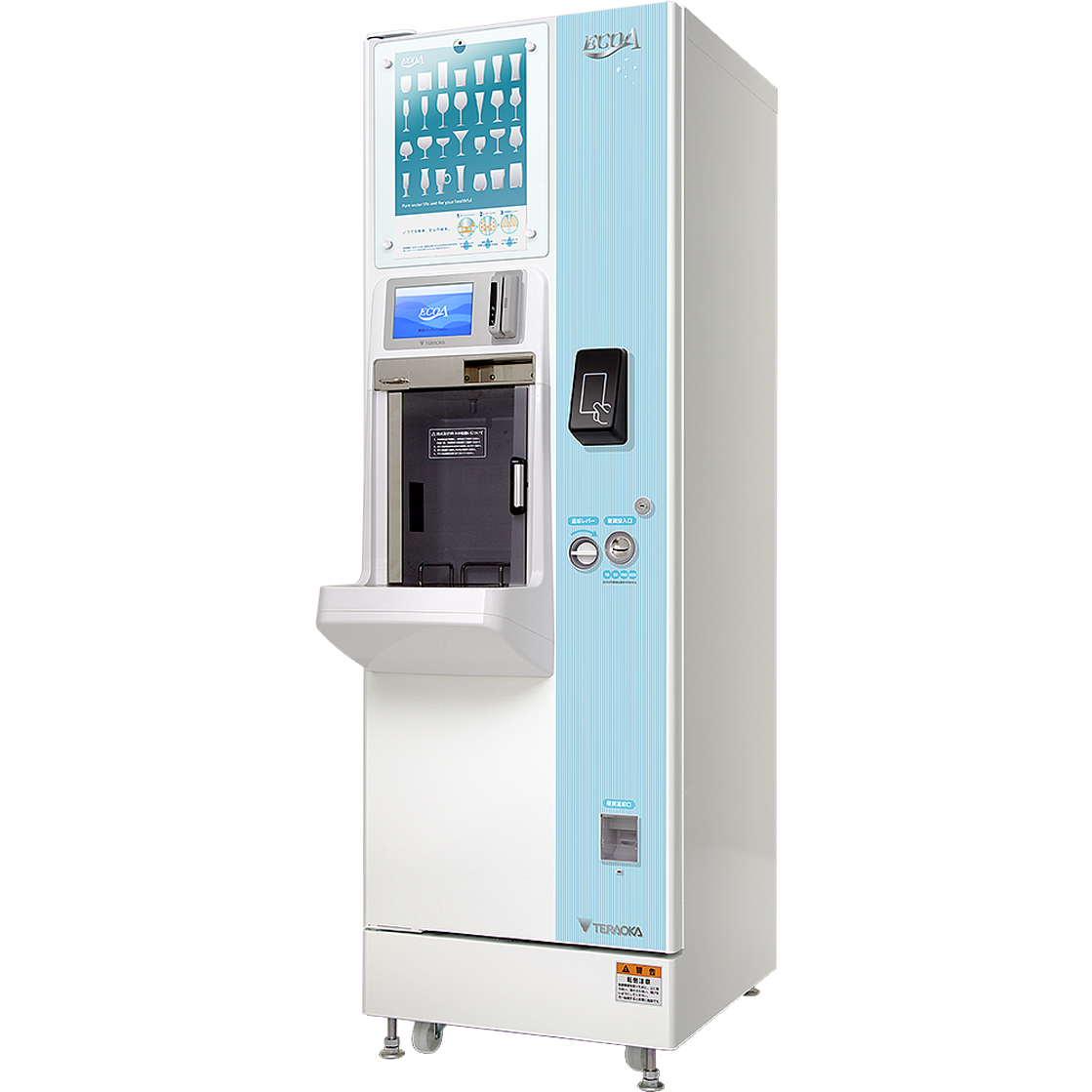

ECOA-V100SW
This model dispenses water at the rate of about 4L/24 seconds, helping to keep lines from forming even in busy stores. Its slim, 595mm-wide profile requires only a small installation space. It comes equipped with a coin mechanism as a standard feature, and can be used either for cash sales or free dispensing.
Water dispensing speed: 4L/24 seconds
Standard type
ECOA-V100S
Its slim, 595mm-wide profile requires only a small installation space. It comes equipped with a coin mechanism as a standard feature, and can be used either for cash sales or free dispensing.
Water dispensing speed: 4L/48 seconds
Double type with twin water dispensers
ECOA-V100L-SD
Equipped with twin water dispensers, this model can dispense water to two people simultaneously. This helps avoid lines even in stores with many dispenser users. It has a low-profile universal design, allowing it to be installed just about anywhere.
Water dispensing speed: 4L/30 seconds
Model with built-in bottle washing sink
ECOA-V100L-S
This model has one water dispenser. Equipped with a bottle washing sink, it eliminates the need for a separate sink for bottle washing (confirmation of health authority approval required). When equipped with an optional coin mechanism, can also be used for cash sales. It has a low-profile universal design, allowing it to be installed just about anywhere.
Water dispensing speed: 4L/48 seconds
Space-conserving 400mm width type
ECOA-V80CⅡ
This compact model measures just 400mm in width, and can be freely installed in just about any location. It is for free water distribution only (but can be used with a membership card).
Water distribution speed: 2L/60 seconds
Options
Bottle washer
This bottle washing machine is for exclusive use with ECOA bottles. It is integrated with a sink, so also can be used for washing hands.
External dimensions (W x D x H): 510 x 595 x 1430 mm
