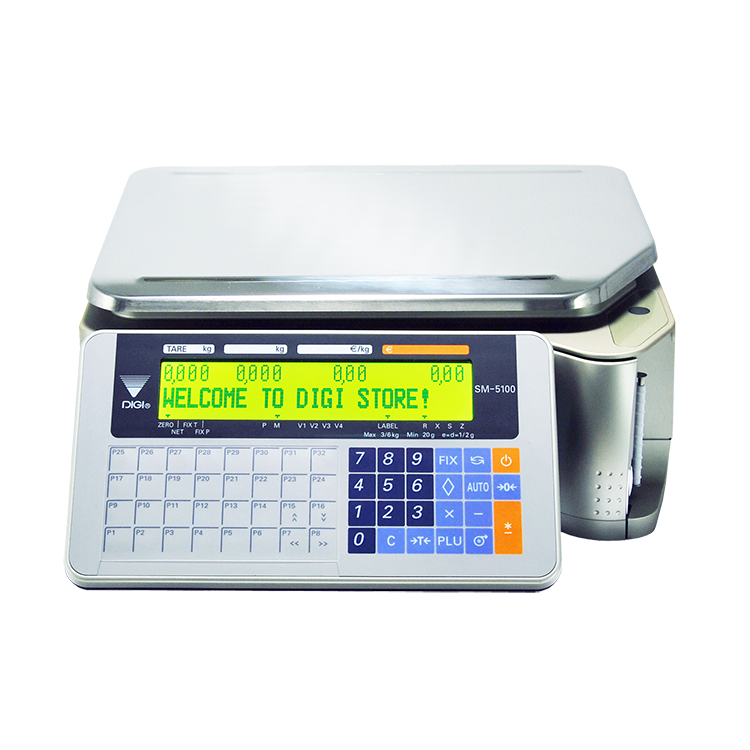

SM-5100-WS02

Scale printer

SM-5100

Retail

Main Features

The SM-5100 increases throughput of counter transactions with speedy weighing and printing operation. Its robust yet sophisticated appearance looks good on counters in modern stores, providing added value for your store operation.

Easy-to-see customer display

LCD with backlight display makes it easy for customers to check necessary information.

SM-5100-WP04-2

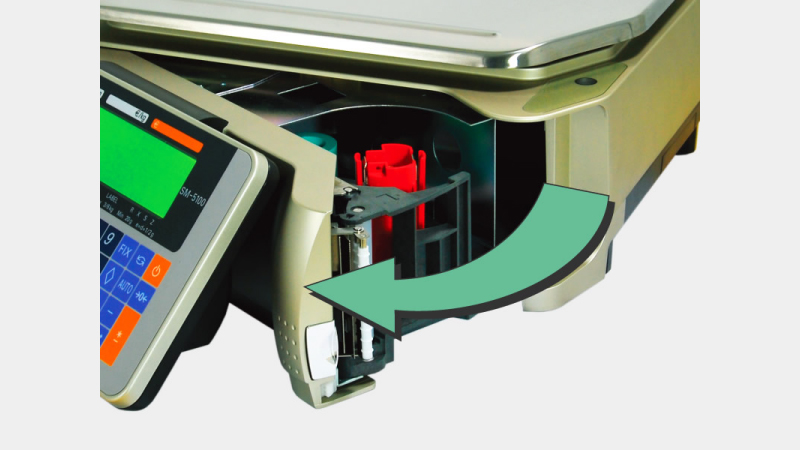

Easy to change label/receipt rolls

Scale front opens wide, making changing label/receipt rolls extremely easy  and quick.

SM-5100-WP04-3

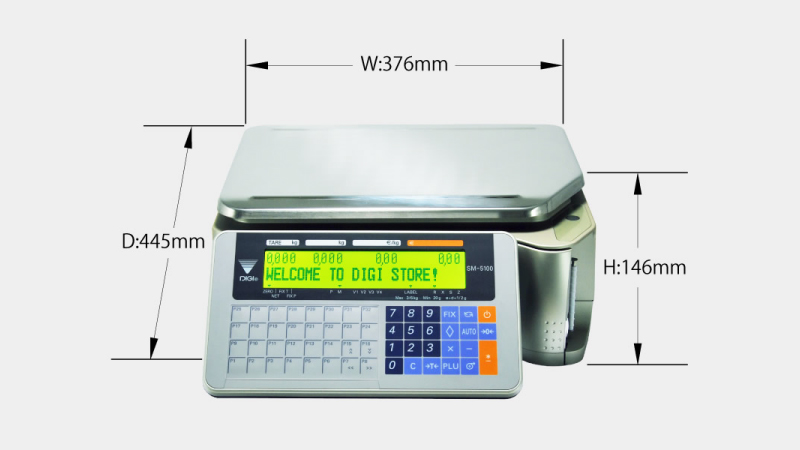

Space saving design

Compact design makes for effective use of valuable sales space and minimizes the distance between shopper and operator.

Adjustable angle of operator panel

The operation panel angle is adjustable to suit operators.

Water resistant keyboard

Water resistant membrane keyboard stands up to frequent use.

Specifications

Dimensions

  • Top View
  • Front View
  • Side View


Weighing

Capacity Max 6 kg Max 15kg or 30lb Max 30kg
Single Interval 1/ 3000 e= 2g e= 5g or 0.01lb e= 10g
1/ 6000 or 1/ 7500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/3000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

Display

Operator display  green LCD with backlight 32x202 dots
Customer display green LCD with backlight  32x202 dots

Specification by Model variation

Variation SM-5100B SM-5100P SM-5100EV SM-5100BS
Number of Preset Keys 32 56 56 72
Memory Capacity 2MB (Expandable up to 8MB)
Standard Interface RS232C, Ethernet, Cash Drawer I/F

Labeling

Label Printing Size Max. 60mmW x 220mmH
Paper Width 60mm for Label   60mm for Receipt
Printing Speed-Label Up To 150mm/s*

* To achieve maximum high speed, high sensitivity thermal paper is necessary. Contact DIGI for details.

Options

Memory Expansion Board (4MB/ 8MB)
Wireless LAN I/F (IEEE 802.11b/g)
Cash Drawer I/F

Variations

SM-5100-WP07-1

Pole Type

SM-5100P

Dimensions (mm): 385(W)x445 Max(D)x581.7(H)
SM-5100-WP07-2

Elevated Type

SM-5100EV

Dimensions (mm): 385(W)x470 Max(D)x492(H)
SM-5100-WP07-3

Self-service Type

SM-5100BS

Dimensions (mm): 385(W)x383.2 Max(D)x724.9(H)

Case Studies

Case studies



My market modernizes 150 stores in Greece with SM-5100

My Market

When My market, the fourth largest supermarket chain in Greece, bought out Veropoulos, the next largest chain, they needed to retain existing clientele, attract new customers, and renovate the newly purchased stores. 770 units of SM-5100 were ordered to replace the old equipment, making My market supermarket stores up-to-date and modern.
