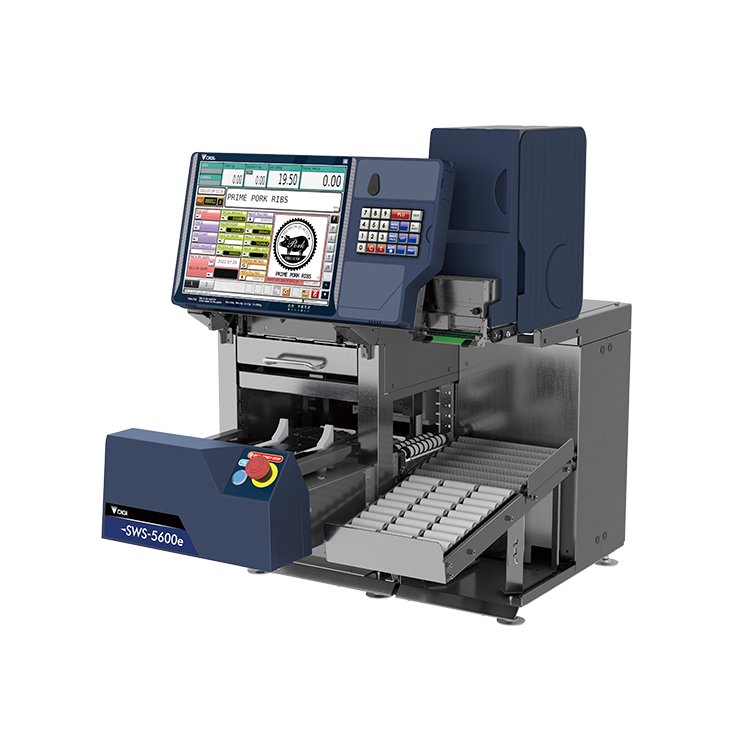

A tabletop tray sealer with integrated weigh-seal-label functionality

SWS-5600e

Retail

Weigh-Wrap-Labelers

Main Features

A tabletop weigh-seal-label system that improves backroom productivity and operational efficiency while reducing film usage.

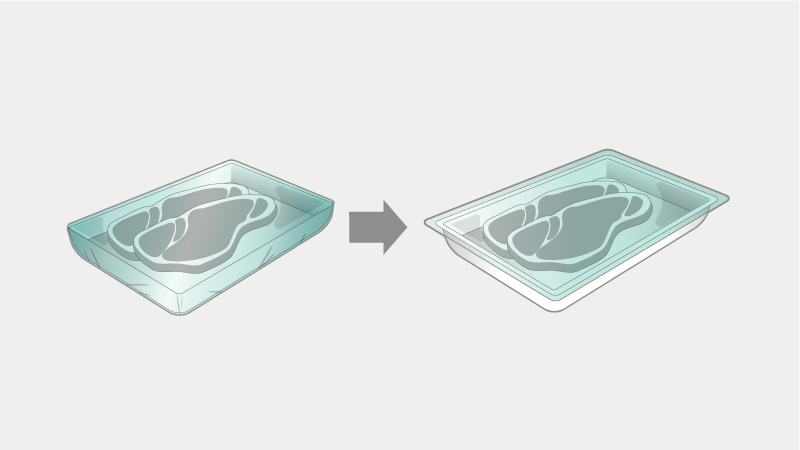

Top seal packing reduces plastic use

Rather than wrapping film the whole way around the tray, this machine utilizes top seal packing, which attaches a sheet of film to only the top of the tray. This leads to a significant decrease in film usage compared to conventional wrapping methods. The environmental impact can further be reduced by using trays made from recycled materials.

Weigh, seal, and label with a single machine

Only one machine is needed for weighing, sealing, and labeling, leading to increased productivity. It’s a solution that provides increased value for consumers, operators, and the environment.

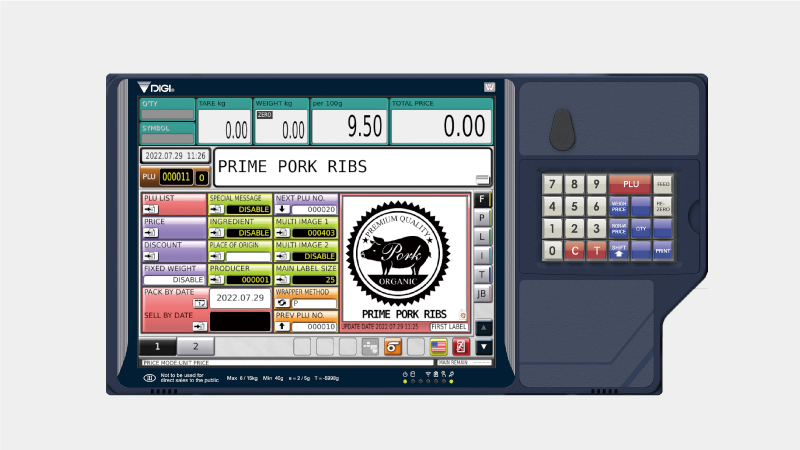

Simple operation panel

The 5600 series console boasts a large operation panel with high visibility that is easy to use. Since it is the same as other 5600 series equipment, operators familiar with other DIGI models will have no trouble adjusting.

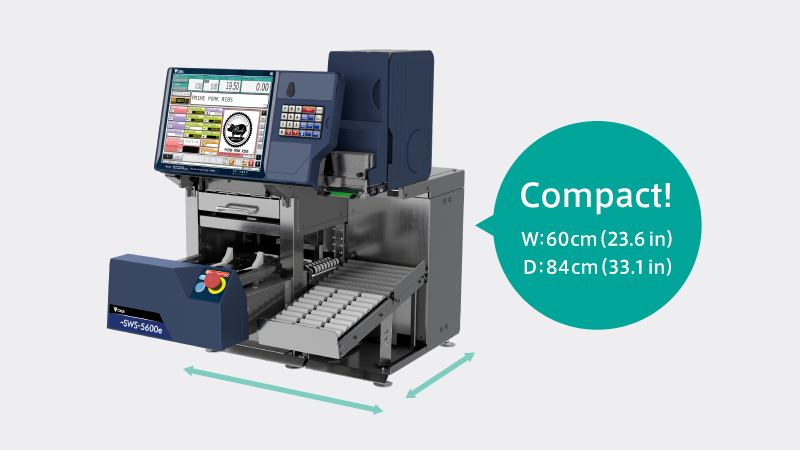

Space-saving compact footprint

The footprint of SWS-5600e is 60 cm (W) x 84 cm (D). Its compact design allows it to be easily placed in narrow spaces, such as behind the sales counter.

Specifications

Dimensions

Packing

Package Size	Width: 240mm (9.4 inches)
	Depth: 140mm or 190mm (5.5 or 7.5 inches)
	Height: 30-80mm (1.2-3.1 inches)
Packing Speed	Max. 10 packages/min
Number of Film Rolls	1 roll
Film Width	250mm (9.8 inches)

Weighing

Interval Type	Multi Interval	Single Interval
Capacity	Max. 3/6kg	Max. 30 lbs
Scale Interval	e=1/2g	e=0.01 lbs
Weighing Range	20g-6kg	0.20lb-30 lbs
Max. Packing Capacity	50g-1kg	0.11lb-2.2 lbs

Thermal Printer

Label Type	Linerless Label
Label Print Width	Max. 44/59mm (1.73/2.3 inches)
Label Print Length	Max. 300mm (11.8 inches)
Dot Density	12 dot/mm (300dpi)

General

Display Panel	TFT LCD color (15 inches) touch panel
Power Consumption	220-240V;1φ;50/60Hz;1.0Kw
Net Weight	100kg
Operating Temperature	10 to 30℃ with no condensation
Operating Humidity	80% RH (Max.) with no condensation
