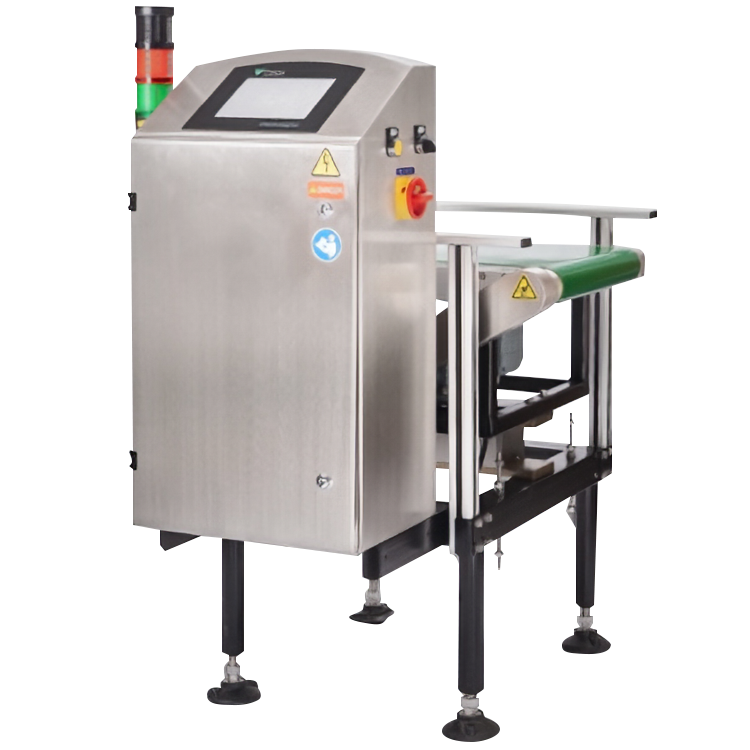

Dynamic weigh checker with high accuracy and speed
SCK Series
Food IndustryMain Features
The SCK Series offers multipurpose weighing detection for a wide range products with a minimum of 5 grams graduation. Enjoy increased efficiency with user friendly operation software with detailed report functions, diverse communication protocols. Comes in a range of carbon steel and stainless steels suitable for different working environments.
Weight range versatility with high precision and high speed
SCK accommodates a wide size and weight range for different products. The conveying speed can reach 50M/min max. The actual scale interval can be min. 5 grams
User friendly display and operation software
8.4" LCD display provides easy access for operator, supervisor and manager level.
Durable and easy to clean
Waterproof construction with high IP rating and easy to clean. With one-touch replacement of the belts, maintenance is fast and simple.
Specifications
Dimensions
| Type | SCK30 | SCK50 | SCK100 |
|---|---|---|---|
| Display | 8.4"LCD | ||
| Max capacity | 30KG | 50KG | 100KG |
| Belt length A-A mm | 600/800 | 800/1000 | 1000/1200 |
| Belt width B-B mm | 400/500 | 500/600 | |
| Loadcell | 20kg | ||
| Belt convey speed | 50m/min | ||
| Passing rate Max | 60ppm | ||
| Actual scale interval | 5g, 10g | 10g, 20g | |
| Power supply | 220VAC, 50HZ | ||
