DIX-2000 series-WP02

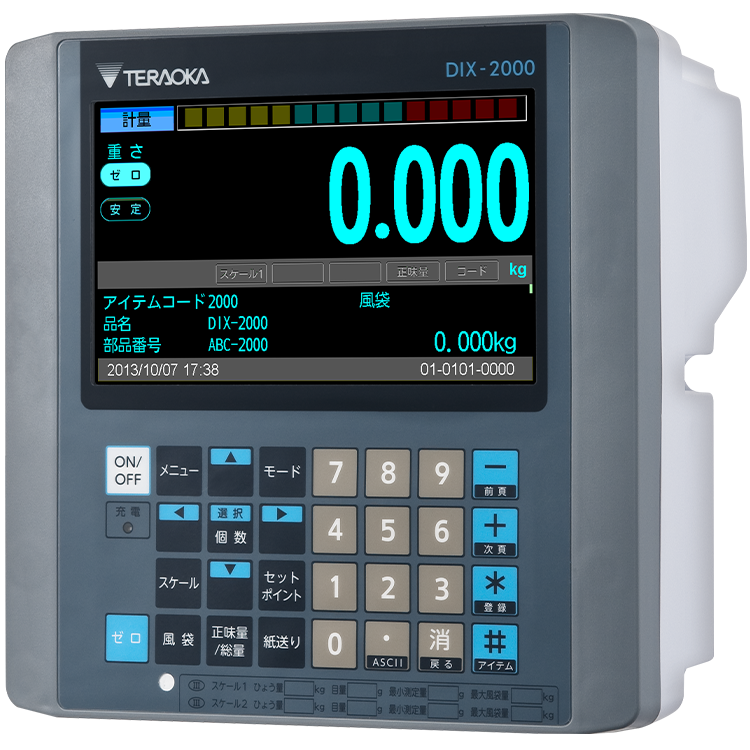

Function-rich indicator with large full-color display and high-level communications ability

DIX-2000 Series

Lojistik

Ana Özellikler

Features a 7-inch high-brightness color TFT display. With its feature-rich display and multiple interfaces, this indicator supports weighing operations of greater complexity. Variations include the ruggedly-constructed, IP65-compliant DIX-2000 Series, and the general-purpose DIX-1000 Series, providing a range of options to suit varied work environments.

DIX-2000 series-WP04-1

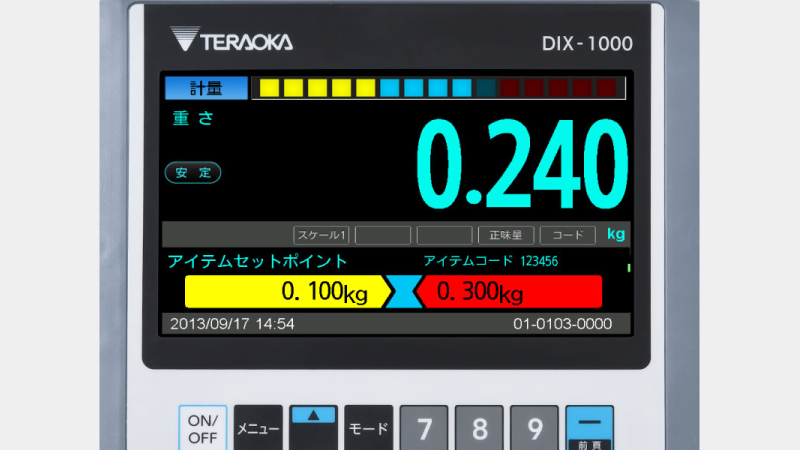

Application-enhancing sub-display

When using the weight checker function, a high-visibility color display and buzzer work together to indicate measurement of targeted weights. The weight itself is displayed in large numerals, while the degree of weight variance based on past measurements is displayed as a graph, making it easy to make QA-related decisions.

Multiple interfaces

RS-232C (1 port), set point output, external input remote key, and LAN connection function are all provided as standard features. Memory holds up to 1,000 items, and can store information on up to 5,000 weighing operations. Data can also be transferred using a special USB memory (sold separately). A powerful ally for managing weighing data.

Teknik Özellikler

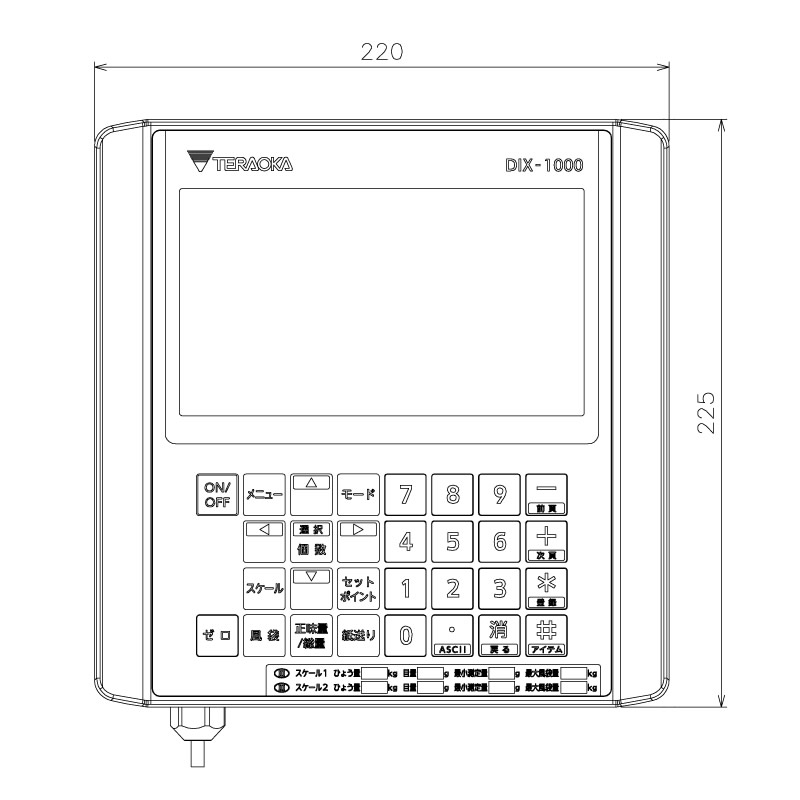

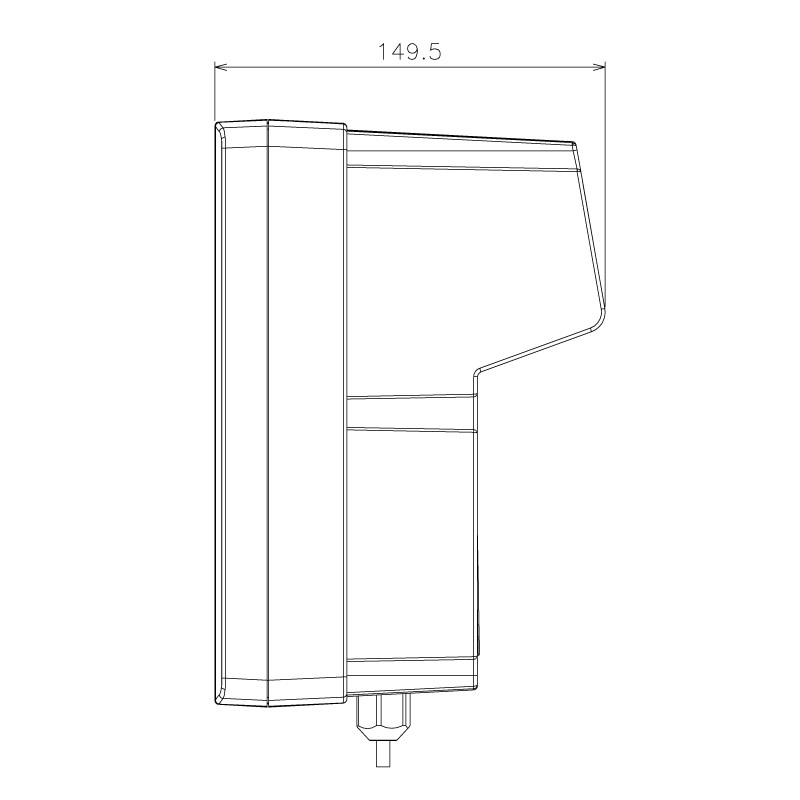

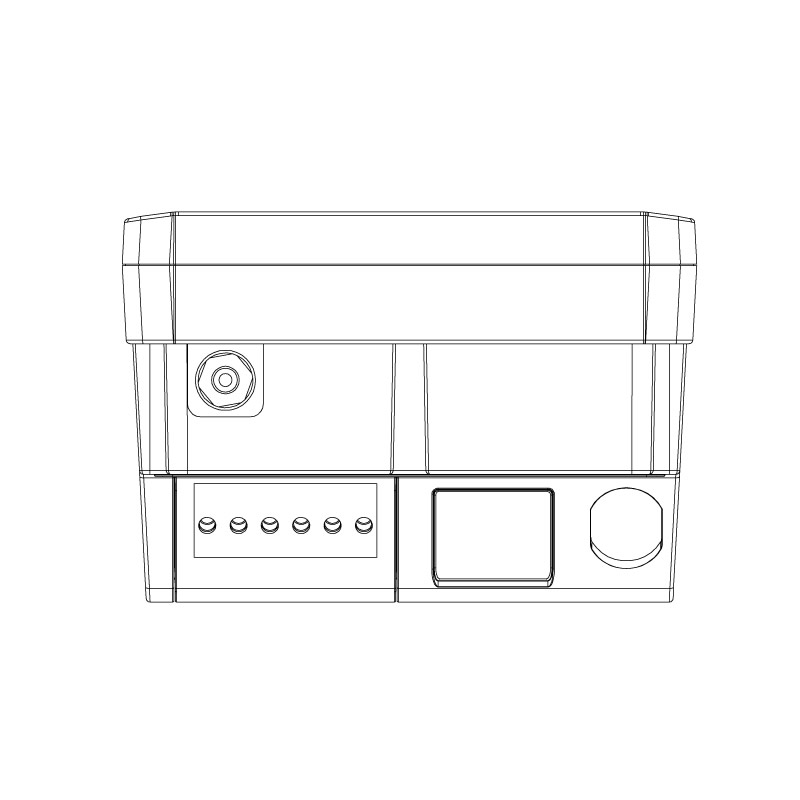

Dimensions

  • DIX-2000シリーズ-WP05-1
  • DIX-2000シリーズ-WP05-2
  • DIX-2000シリーズ-WP05-3
Model DIX-2000 DIX-1000
Weighing
Display resolution 1/60000
Internal resolution 1/1000000
Loadcell excitation
DC5±10%, Remote Sensing
Up to 2 x 350 ohm loadcells
Loadcell sensitivity 0.4mV/V~4.0mV/V
AD conversion rate 50 times/sec.
Interface
Scale control RS-232C, 2 scales, 5 set points output, 3 remote control input
Memory USB(for exclusive use USB memory), Ethernet USB(for exclusive use USB memory)
Printing (for built-in printer type only)
Printing method  Dot impact
Roll Size Width: 44mm, Outer Diameter: 50mm, Inner Diameter: 12mm, Length: 23m
General
Standard type/ built-in printer type AC100V±10%(50/60Hz)
Standard type/ built-in battery type
100V/240V with AC Adapter
Power source: 36V, 1.81A
Charging time: Approx. 6 hours
Power consumption
Standard Type: Max. 11W
Built-in Printer Type: Max. 13W
Built-in Battery Type: Max. 36W(operating while charging)
Service environment
Temperature:  -10 to 40 degrees C (no condensation)
Humidity: 15-85%(no condensation)
International Protection compliance IP65(standard type/ built-in battery type only)

Modeller

DIX-2000シリーズ-WP07-1

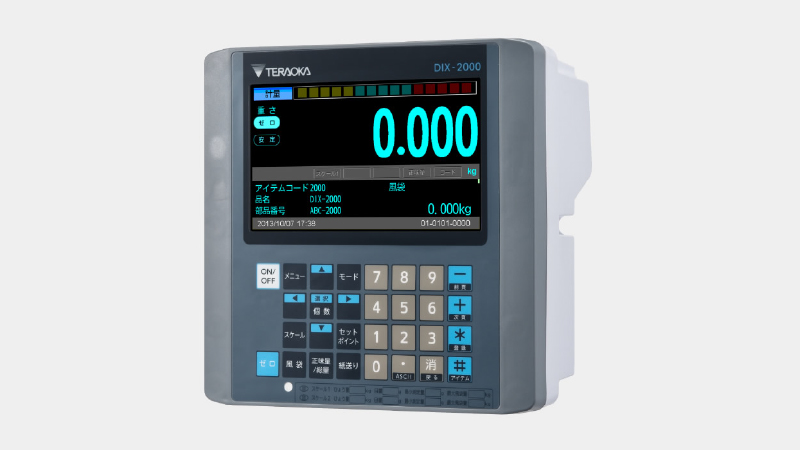

DIX-2000 Series

DIX-2000 (standard type, type with built-in printer, type with built-in battery)

Select from among standard type, type with built-in dot matrix printer, and type with built-in battery according to your application.
DIX-2000シリーズ-WP07-2

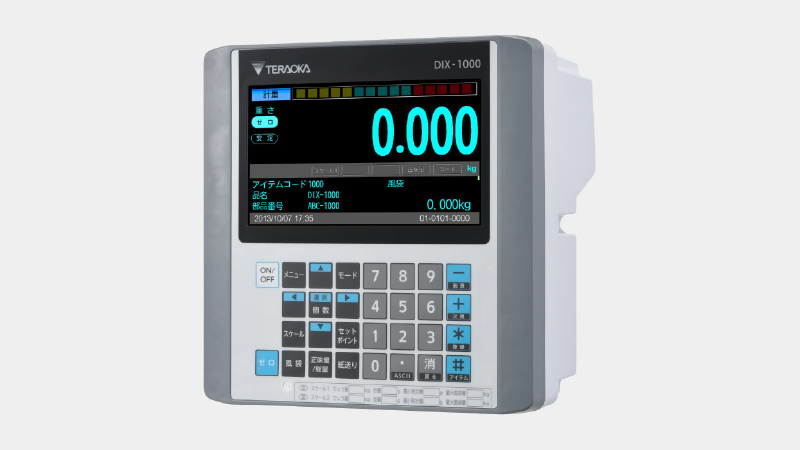

DIX-1000 Series

DIX-1000 (standard type, type with built-in printer, type with built-in battery)

This is a general purpose unit without water resistance. Besides the standard type, available with built-in dot matrix printer or built-in battery.

Seçenekler

DIX-2000シリーズ-WP09-1

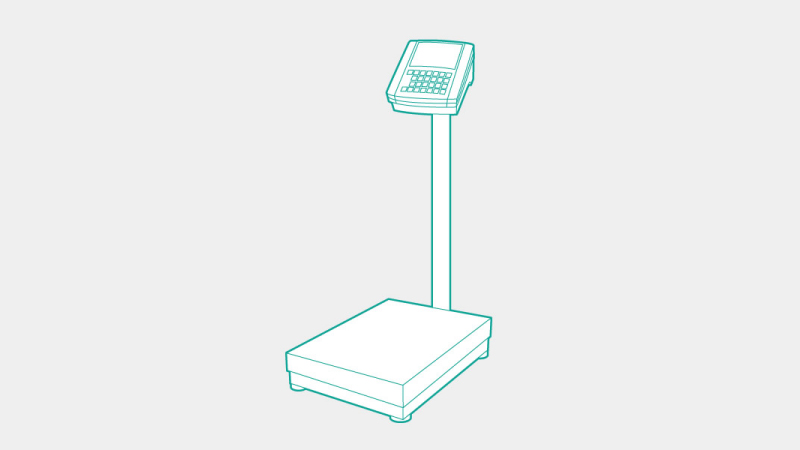

Long/short pole kits for DIX Series

This option lets the DIX-2000 to be attached to a scale, allowing it to be used as a built-in scale indicator.
Pole height:  Approx 80 cm extended, approx 40 cm retracted
Pole material:  Stainless steel
DIX-2000シリーズ-WP09-1

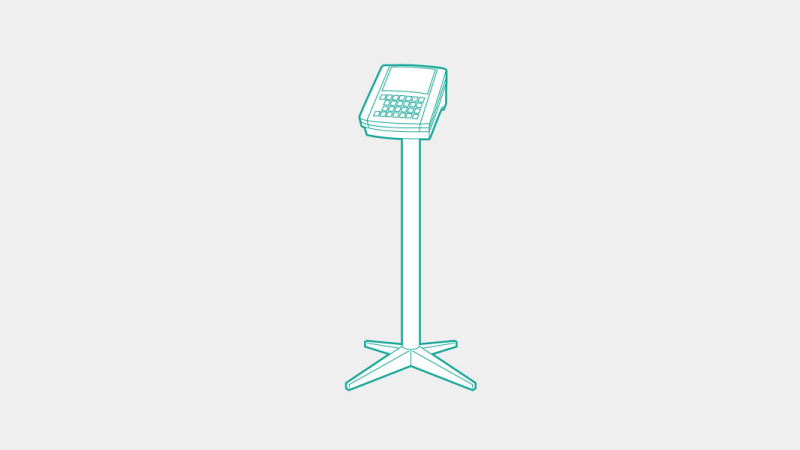

Separate pole kit for DIX Series

This is a special stand for the DIX-2000 series. Select this option when using the DIX-2000/DIX-1000 apart from scales.
Pole height:  Approx 80 cm
Pole material:  Stainless steel (with aluminum legs)
