Function-rich indicator with large full-color display and high-level communications ability
DIX-2000 Series
LojistikAna Özellikler

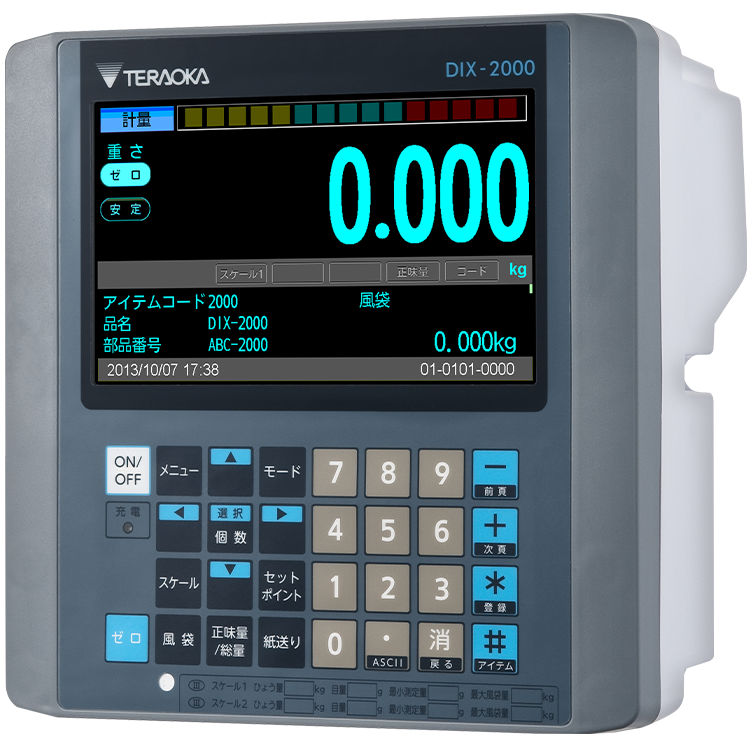

Features a 7-inch high-brightness color TFT display. With its feature-rich display and multiple interfaces, this indicator supports weighing operations of greater complexity. Variations include the ruggedly-constructed, IP65-compliant DIX-2000 Series, and the general-purpose DIX-1000 Series, providing a range of options to suit varied work environments.

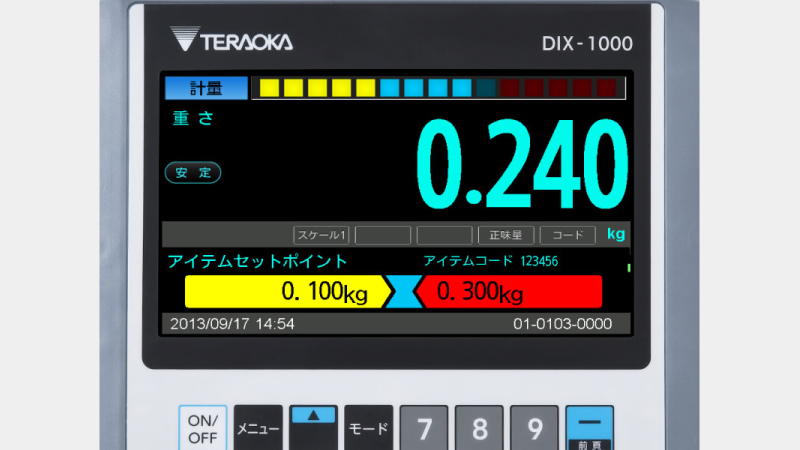

Application-enhancing sub-display
When using the weight checker function, a high-visibility color display and buzzer work together to indicate measurement of targeted weights. The weight itself is displayed in large numerals, while the degree of weight variance based on past measurements is displayed as a graph, making it easy to make QA-related decisions.
Multiple interfaces
RS-232C (1 port), set point output, external input remote key, and LAN connection function are all provided as standard features. Memory holds up to 1,000 items, and can store information on up to 5,000 weighing operations. Data can also be transferred using a special USB memory (sold separately). A powerful ally for managing weighing data.
Teknik Özellikler
Dimensions
| Model | DIX-2000 | DIX-1000 |
|---|---|---|
| Weighing | ||
| Display resolution | 1/60000 | |
| Internal resolution | 1/1000000 | |
| Loadcell excitation |
DC5±10%, Remote Sensing
Up to 2 x 350 ohm loadcells
|
|
| Loadcell sensitivity | 0.4mV/V～4.0mV/V | |
| AD conversion rate | 50 times/sec. | |
| Interface | ||
| Scale control | RS-232C, 2 scales, 5 set points output, 3 remote control input | |
| Memory | USB（for exclusive use USB memory), Ethernet | USB（for exclusive use USB memory) |
| Printing (for built-in printer type only) | ||
| Printing method | Dot impact | |
| Roll Size | Width: 44mm, Outer Diameter: 50mm, Inner Diameter: 12mm, Length: 23m | |
| General | ||
| Standard type/ built-in printer type | AC100V±10%（50/60Hｚ） | |
| Standard type/ built-in battery type |
100V/240V with AC Adapter
Power source: 36V, 1.81A
Charging time: Approx. 6 hours
|
|
| Power consumption |
Standard Type: Max. 11W
Built-in Printer Type: Max. 13W
Built-in Battery Type: Max. 36W（operating while charging)
|
|
| Service environment |
Temperature: -10 to 40 degrees C (no condensation)
Humidity: 15-85%(no condensation)
|
|
| International Protection compliance | IP65(standard type/ built-in battery type only) | |
Modeller
DIX-2000 Series
DIX-2000 (standard type, type with built-in printer, type with built-in battery)
DIX-1000 Series
DIX-1000 (standard type, type with built-in printer, type with built-in battery)
Seçenekler
Long/short pole kits for DIX Series
