WIW-700-WP02

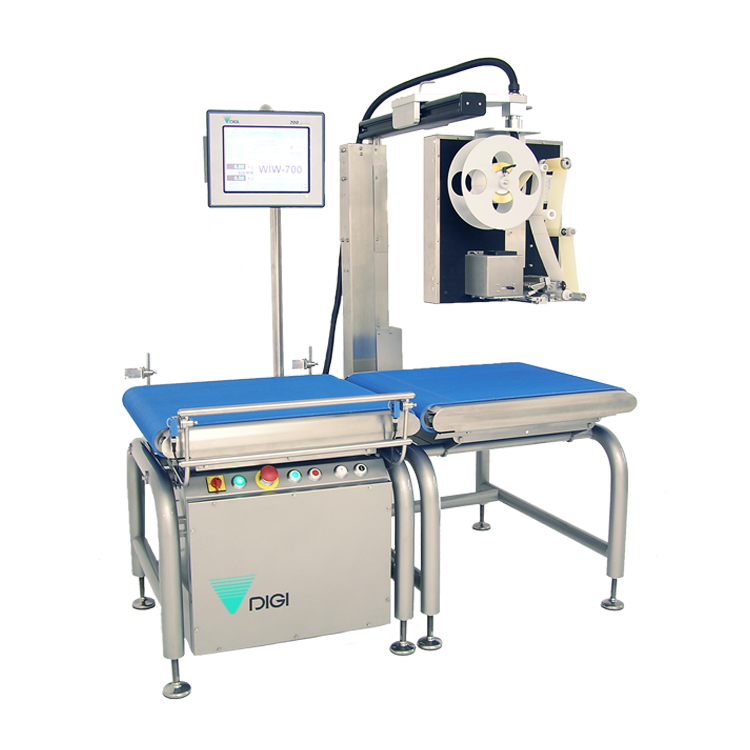

Automatic heavy duty weigh price labeler

WIW-700

Food Industry

Main Features

The WIW-700 is a high capacity dynamic weigh price labeling machine. The powerful drum motor conveyors can carry large heavy loads up to 60kg with a typical crate/tray size of 600mm long x 600mm wide (wide heavy packages). This PC based machine allows easy integration with existing machines and networking and comes with color touch screen for easy programming and plu selection.

WIW-700-WP04-1

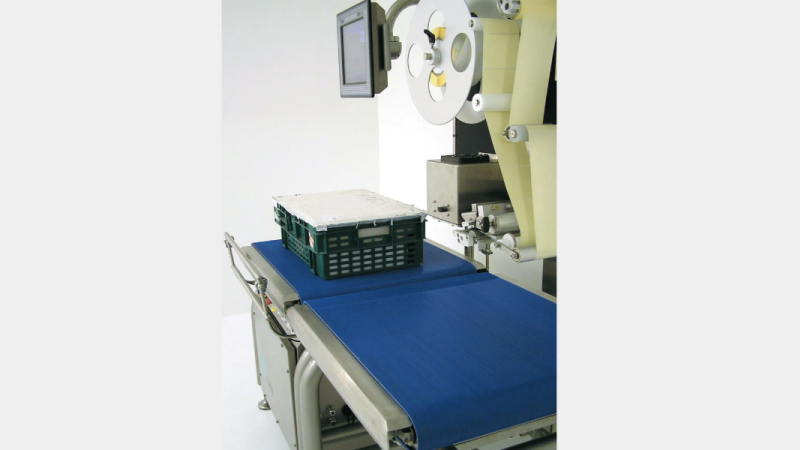

Large crate capacity

The powerful drum conveyor motors will transport products up to 60kg (heavy weight) and with the large size deck a crate of up to 600mm long x 600mm wide (large wide packages) can be weighed and labeled.

WIW-700-WP04-2

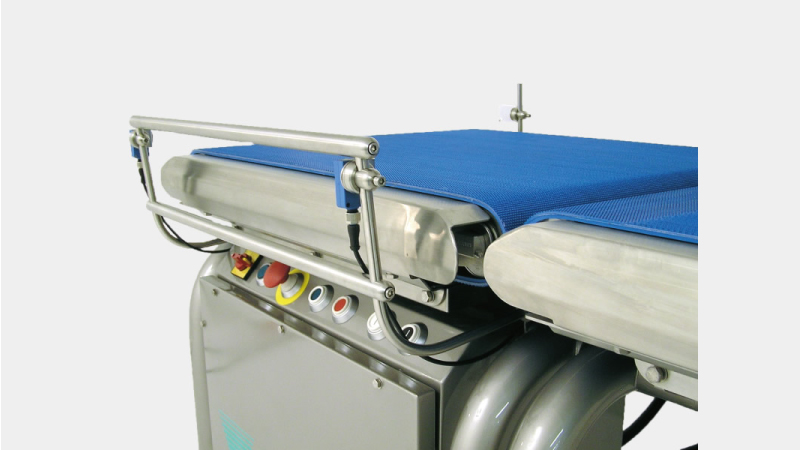

Wide sensors

The extra wide sensor positioning ensure the widest of products pass through the machine correctly - Food Industry Equipment

WIW-700-WP04-3

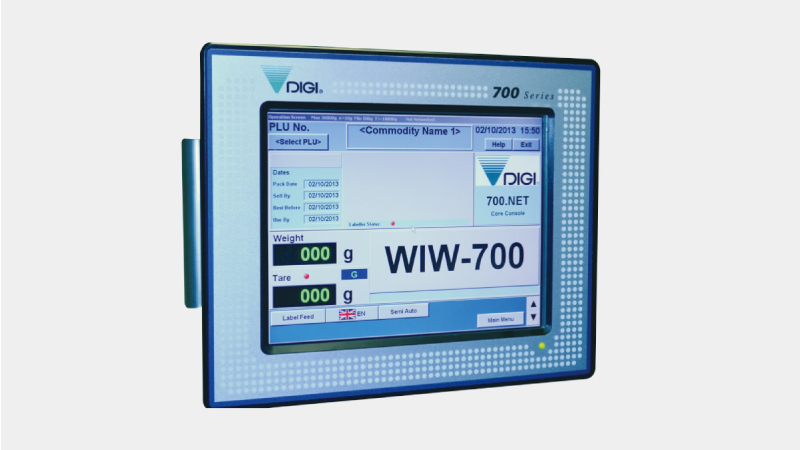

WIW-700 operation system

The DIGI-700 series uses an industrial PC utilising embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring - PC Based, Windows with Touch Screen Scale.

WIW-700-WP04-4

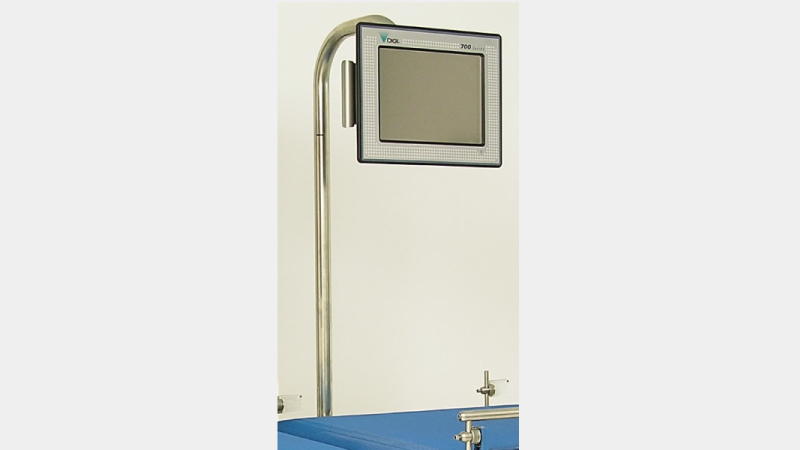

Adjustable screen position

The WIW-700 has the color touch screen mounted on a multi position swivel assembly. This allows custombizable screen for the operator to have easy access to the screen without being restricted by the large conveyors - PC Based, Windows with Touch Screen Scale.

Specifications

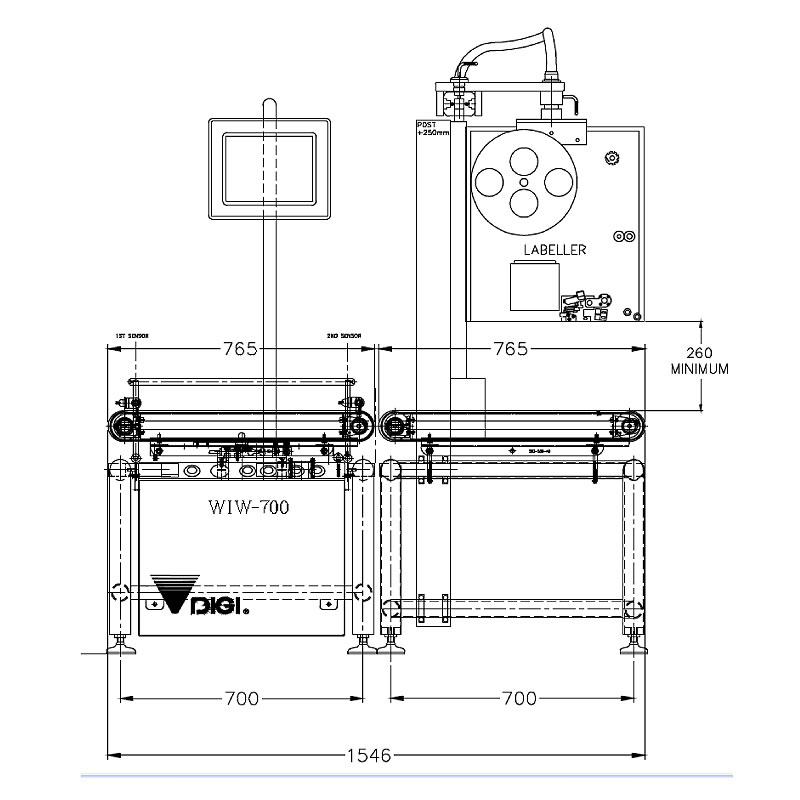

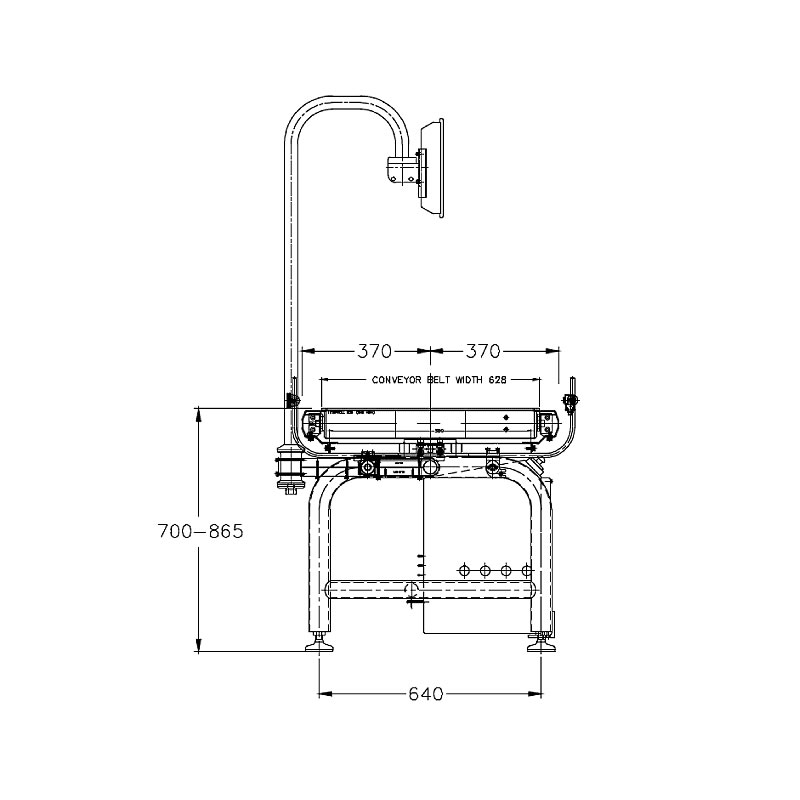

Dimensions

  • WIW-700-WP05-1
  • WIW-700-WP05-2

Weighing

Capacity Max 30 kg Max 60 kg
Single Interval e= 10g e= 20g

Display

Screen 12.1 Color LED display
Touch panel 12.1 pen/finger resistive type

Operation and general specification

Conveyor speed Pre-set fixed speed of 15 to 24m/min (18-30ppm)
Conveyor lengths Infeed(option): 765mm, Scale: 765mm, Outfeed: 765mm (classic labeler)

Pack size

Pack size capable Length: up to 600mm, Width: up to 600mm, Height: 240 to 400mm

Labeler - Classic

Label size Width: 30 to 120mm, Height: 28 to 150mm
Label roll max 300mm diameter, 76mm core, inside/outside wound
Label application system 9 finger touch, Multijet air box
Print speed 50 to 260mm/sec
Print head 80mm at 300dpi, 108mm at 300dpi

Options

WIW-700-WP09-1

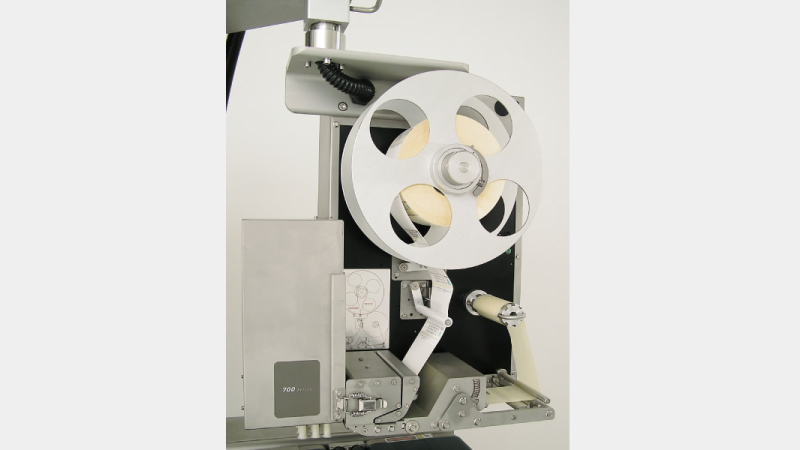

High speed labeler

80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators  - touch, air box,
Label size  -  Width: 30 to 120 mm
                      Height: 28 to 150mm
Label roll - Roll diameter 300mm
                  Core diameter 76mm
                  Outside or inside wound
Print speed  -  50 to 260mm/sec
Near edge printing

When the high speed labeler is used the outfeed conveyor is increased in length to 992mm
WIW-700-WP09-1

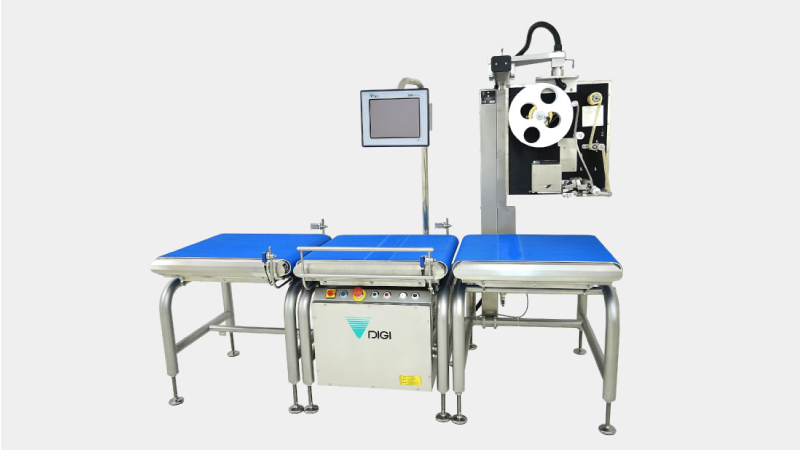

Optional infeed conveyor

An optional infeed conveyor can be added to the WIW-700. This infeed conveyor is the same length as the scale conveyor (765mm).
WIW-700-WP09-1

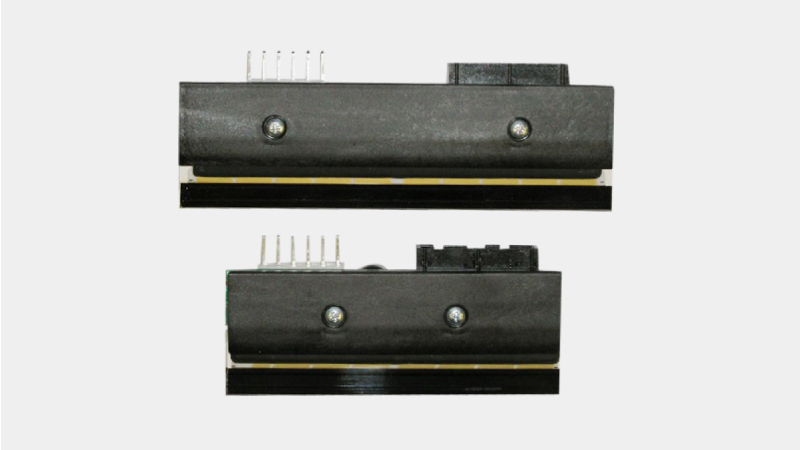

Thermal heads

As standard an 80mm wide thermal head is fitted to high speed and classic labelers. A 108mm wide thermal head is available for these two labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).
WIW-700-WP09-1

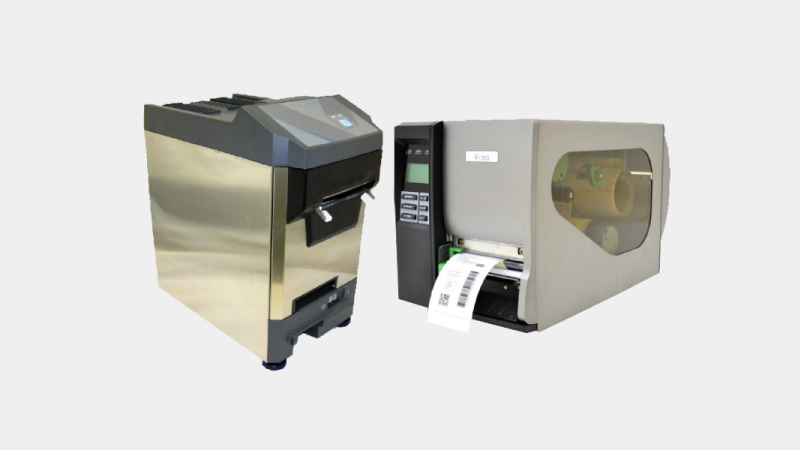

Additional printers

The flexibility of the WIW-700 allows other industrial type printers that support TCP/IP communication to be connected.

Leading-edge (front) applicator

The leading-edge applicator applies label to front of case as it moves through the conveyor.

FAQ

  • Can the flow direction of the machine be left to right or right to left?
    The machine can be built to either flow direction.
  • Can the labeler use thermal ribbon?
    A thermal transfer ribbon kit can be fitted to the Classic labeler to allow the use of thermal ribbon.
  • What is the longest pack the WIW can weigh?
    The WIW-700 can weigh a product up to 600mm long.
  • What is the widest pack the WIW can weigh?
    The WIW-700 conveyor can handle a pack up to 600mm wide.
  • What is the conveyor speed of the WIW?
    The WIW is a single fixed speed machine with a conveyor speed pre-set to between 15 and 24m/min which will give a maximum throughput of 30ppm.
