hi700ll_WP02_01

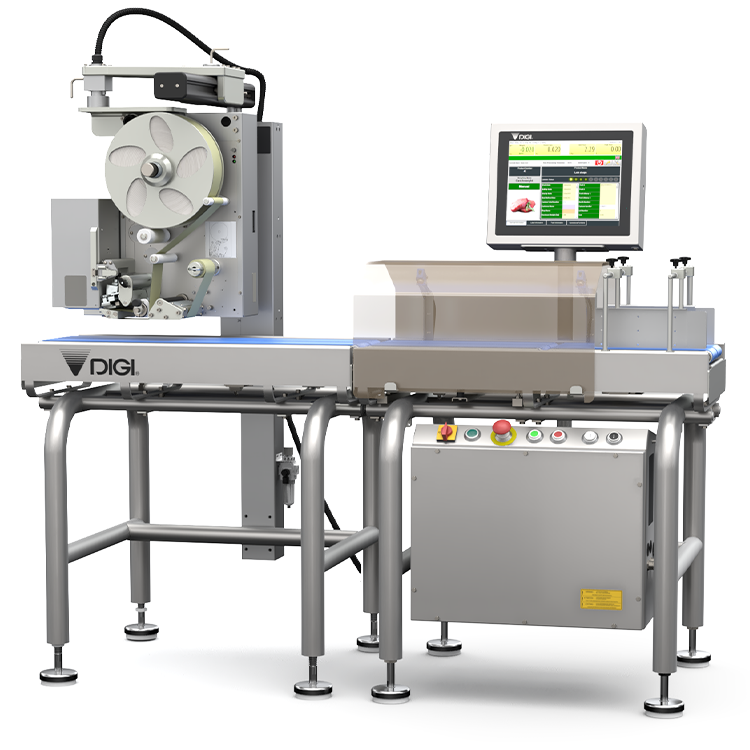

HI-700II

High Speed Dynamic Weigh Price Labeler

Additional printers

The flexibility of the HI-700ll allows other industrial types of printers that support TCP/IP communication to be connected.
  • HI700ll_WP09_01

Label applicators

DIGI has a range of label applicators to choose from, ensuring many sized and shaped labels can be successfully applied to different types of packages.
  • hi700uk_WP09_01

Sub infeed

An additional infeed (sub infeed) can be added. This option can be used to increase the spacing between packs on the conveyor.
  •  hi700uk_WP09_02

Options

hi700uk_WP09_06

Gravity outfeed rollers

Gravity outfeed roller assembly can be fitted to allow a smooth transfer of product away from the machine.

hi700uk_WP09_07

Pack guides

There are various pack guides to suit different types of packs. Examples of these are the infeed rod guides, outfeed rod guides, HDPE material type and tall version of the standard HI guides.

hi700uk_WP09_08

Thermal heads

As standard, an 80mm wide thermal head is fitted to DIGI high speed labellers. A 108mm wide thermal head is also available for these labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).

hi700uk_WP09_09

Frame height

To cater for various height production lines, there are three frame height options. The standard height frame gives a conveyor height range of 755-920mm, medium frame 850-1015 and the tall frame option gives a conveyor height range of 945-1110mm.

hi700uk_WP09_11

Pack sensors

To ensure reliable sensing of packs, different types of pack sensors are available and can be mounted horizontally or over head.

hi700uk_WP09_12

Conveyor belts

A wide range of conveyor belts are available to cater for a wide range of applications and environments.
