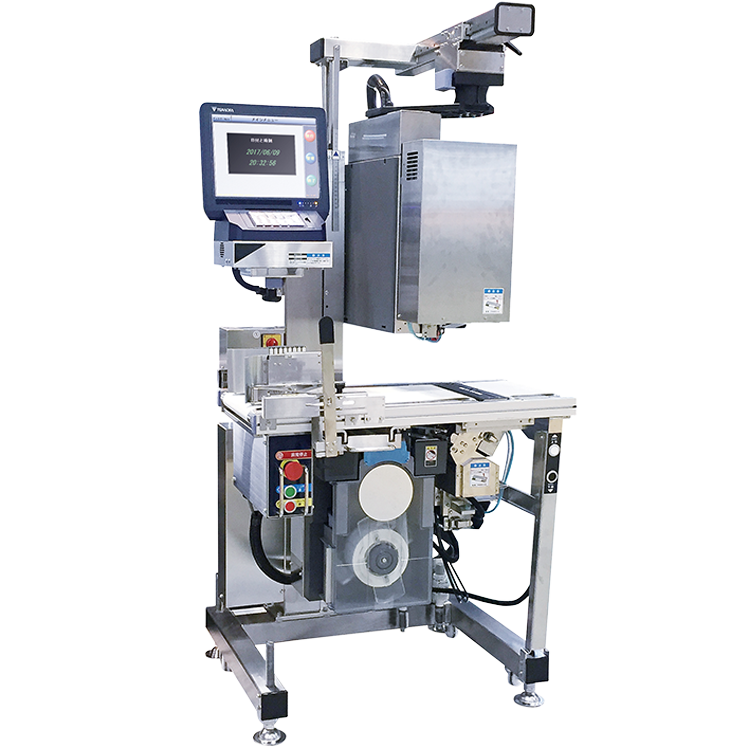

AP-800
A state-of-the-art general purpose automatic thermal labeler that handles a wide variety of label formats
Dimensions
Label Applicator type | U | UB | B | ||
---|---|---|---|---|---|
Printing method | Thermal printing (300dpi) | ||||
Label print speed | Max. 200 mm/sec. | ||||
Package size | Width | 50 to 240 mm | |||
Length | 50 to 350mm | 70 to 350 mm | |||
Height | 15 to 190 mm | ||||
Label size | Upper Applicator *Standard applicator |
Width | 40 to 80 mm | ||
Length | 28 to 100 mm | ||||
Upper Applicator *Rotary applicator |
Width | 40 to 80 mm | |||
Length | 28 to 100 mm | ||||
Bottom Applicator | Width | 40 to 80 mm | |||
Length | 28 to 130 mm | ||||
Label outer diameter |
Max. φ190 mm
(Core inner diameter φ76 mm)
|
||||
Dimensions of main unit | Width | 750 mm | |||
Length | Standard applicator | 670 mm | 640 mm | ||
Rotary applicator | 680 mm | ||||
Height (Min. Height) |
Standard applicator | 1410 mm | 1410 mm | ||
Rotary applicator | 1550 mm | ||||
Conveyor Height | 800 mm ± 50 mm | ||||
Direction of product flow | Right flow or Left flow | ||||
Power supply | 100V Single phase | ||||
Power consumption | 235 W | 340 W | 185 W | ||
Conveyer speed (m/min.) | 5.5 to 50 (Variable) | ||||
Air consumption | Upper Applicator | Max 1.61 ℓ/ sheet | |||
Bottom Applicator | Max 2.36 ℓ/ sheet | ||||
Weight of main unit | 115 kg | 135 kg | 90 kg | ||
Noise level | Max. 83 dB | ||||
Operating temperature | 5 ℃ to 35 ℃ (without condensation) |
