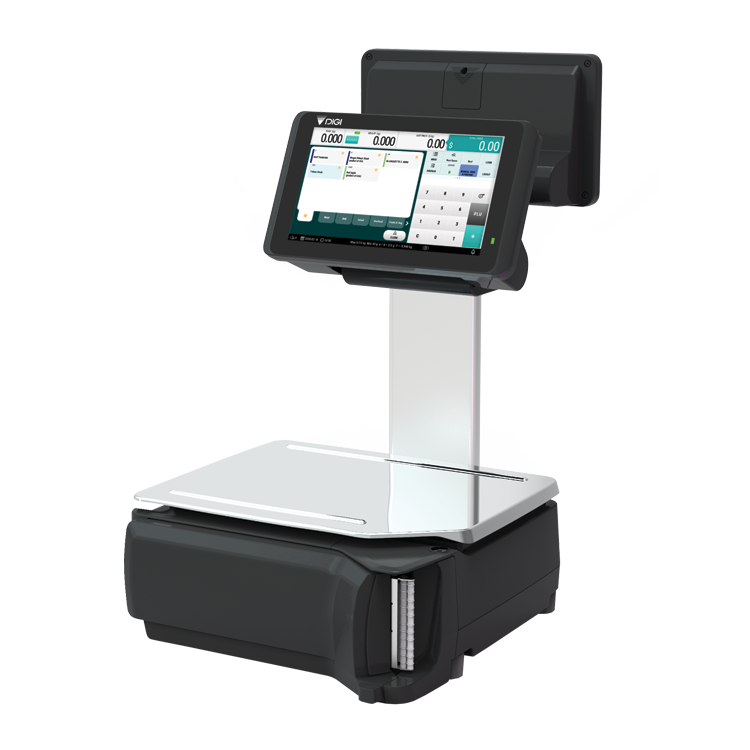

sm5300x_WP02_01

SM-5300 X

Designed to Excite, Crafted to Excel

Dimensions

sm5300x_WP05_01
sm5300x_WP05_02
sm5300x_WP05_03

Specification

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

SM-5300 X
Model
Bench Pole Elevated Hanging Self-Service 12.1" Self-Service 19"
Dimension
W x D x H (mm)
360 x 472 x 143 360 x 500 x 542 360 x 510 x 574 400 x 339 x 816 360 x 481 x 637 442 x 480 x 761
Operator Display 10.1" WSVGA with Capacity Touch
(1024 x 600)
12.1" TFT SVGA with Touch        (800 x 600)
19" TFT SVGA with  Touch
(1280x1024)
Customer Display 7" WVGA  (800 x 480)
10.1" WVGA (1024 x 600)
Display Resolution 1/3000, 1/6000, 1/7500
Label / Receipt Types Liner  Linerless with Auto-cutter
Roll Diameter Max 125mm Max 95mm
Roll Width Max 73mm Max 62mm
Print Width 60mm 61mm
Printing Speed Up to 150mm / second*
Print Resolution 300 dpi
Power Source AC 100 / 110 or 220 / 230 / 240 Volts (50/ 60 Hz) Auto Switch
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH
Standard Interface Ethernet 10 /100 Base T, 4 x USB 2.0, 1 x RJ11
Net Weight 10.7 kg 11.7 kg 13.2 kg 14.0 kg 13.3 kg 17.0 kg

*  To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
** Console variant is available.
