aiobs_WP02_01

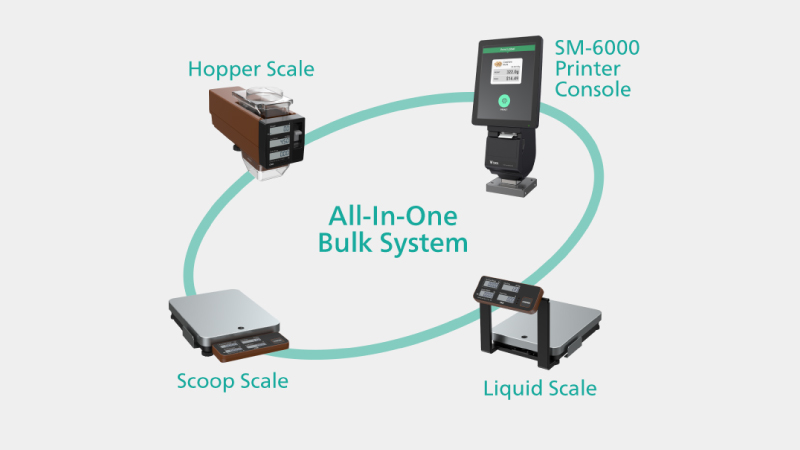

All-In-One Bulk System

No Tare, No Fuss, More Fun.

Dimensions

aiobs_WP05_01
aiobs_WP05_02
aiobs_WP05_03

Specification

Capacity Model Resolution Weighing Range Deviation
Max 1.5kg Hopper Scale 1 / 1,000 0 - 0.5kg e = 0.5g
1 / 1,500 0.5 - 1.5kg e = 1g
Max 30kg Scoop and Liquid Scale 1 / 6,000 0 - 30kg e = 5g


Model Hopper Scale Scoop Scale Liquid Scale SM-6000 Printer Console
Dimension W x D x H (mm) 100 x 347 x 214 210 x 357 x 54 210 x 365 x 271 280 x 206 x 576
Display  3 x 7 Segments LCD
(6 digits)
4 x 7 Segments LCD
(5 digits and 6 digits x 2 each)
15" TFT XGA with Capacitive Touch
(768 x 1024)
Keyboard 1 x Confirm Button
Label / Receipt Types Linerless With Auto-Cutter
Roll Diameter Max 95mm
Roll Width Max 62mm
Print Width Max 61mm
Printing Speed  Max 150mm / second*
Print Resolution 300 dpi
Power Source DC 7V (Max 100mA) AC - DC Power Adapter
Interface (with DC Power) RS-485 (RJ-45 Connector)
Maximum Connection Support up to 100 units of Hopper, Scoop and Liquid Scales per SM-6000 Printer Console
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Net Weight 1.4 kg 3.3 kg 3.7 kg 8 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
