Enchant

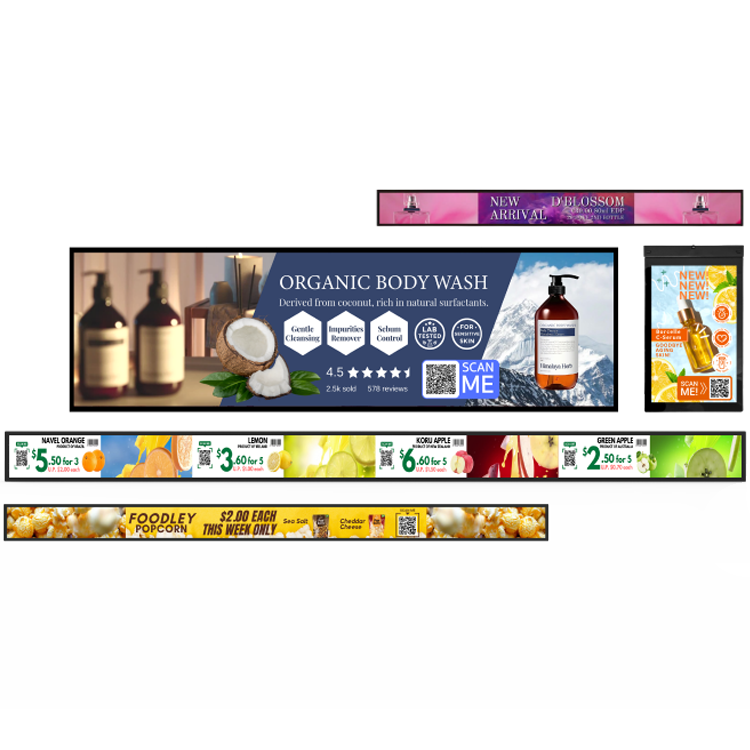

Shelf Edge Display | Digital Signage
Specification
| Model (Shelf Edge Display) |
Enchant 23.1" (EG-2310) |
Enchant 35" (EG-3500) |
Enchant 47.1" (EG-4710) |

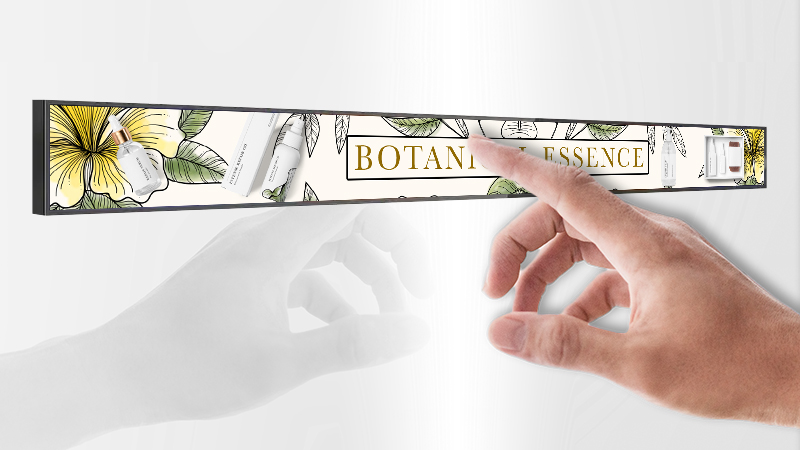

Enchant 23.1" with Touch (EG-2310T) |
Enchant 36" (EG-3600) |
||
|---|---|---|---|---|---|---|---|
| Dimension W x H x D (mm) |
597 x 60 x 16 | 892 x 60 x 16 | 1212 x 68 x 26 | 594 x 63 x 20 | 900 x 270 x 34 | ||
| Screen Size and Type | 23.1" | 35" | 47.1" | 23.1" with Touch | 36" | ||
| Display Size | Pixels | 1920 x 158 | 2880 x 158 | 3840 x 158 | 1920 x 158 | 1920 x 532 | |
| mm | 588 x 50 | 880 x 50 | 1196 x 50 | 588 x 50 | 881 x 242 | ||
| Operating Temperature | 0°C to 40°C | 0°C to 40°C | |||||
| Display Technology | TFT LCD | TFT LCD | |||||
| Compliance | CE, TELEC, RoHS | CE, TELEC, RoHS | CE, RoHS | CE, RoHS | |||
| Operating Humidity | 20% to 80% RH Non-Condensation | 20% to 80% RH Non-Condensation | |||||
| Operating System | Android | Android | |||||

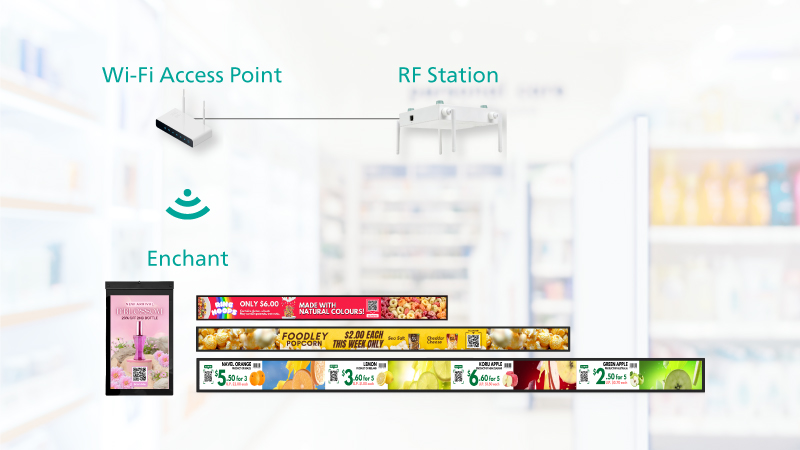

| Communication Mode | WiFi 2.4G | WiFi 2.4G | |||||
| Power Source | DC12V | DC12V | |||||
| Hardware Interface | Mircro USB x1, TF Card x1, DC_IN x1 |
USB2.0 x1, Mircro USB x1, Micro SD Card x1 |
USB2.0 x1, USB OTG x1, TF Card x1, DC_IN x1, RESET x1 |
Mircro USB 2.0: Host x1, OTG x1 |
Mircro USB 2.0 x1 | ||
| Content Format | JPEG, PNG, BMP, GIF, MP4, MKV | JPEG, PNG, BMP, GIF, MPEG-1/2, MVC, GOOGLE VP8, H.263, MOTION JPEG |
JPEG, PNG, BMP, GIF, MP4, MKV | ||||
| Net Weight | 0.66kg | 1.09kg | 2.72kg | 0.82kg | 7kg | ||

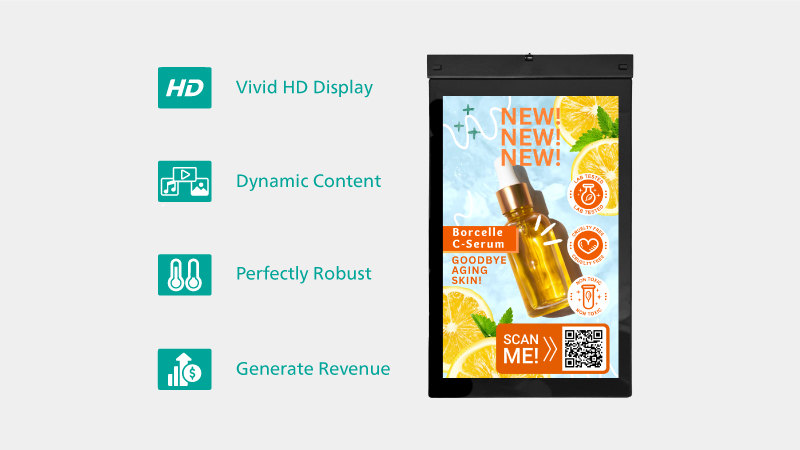

| Model (Digital Signage) |
Enchant 10.1" Single-Sided (EC-1011) |
Enchant 10.1" Double-Sided (EC-1012) |
|
|---|---|---|---|
| Dimension W x H x D (mm) |
160 x 264 x 14 | ||
| Screen Size | 10.1" | ||
| Display Type | Single-Sided | Double-Sided | |
| Display Size | Pixels | 800 x 1280 | |
| mm | 135 x 216 | ||
| Operating Temperature | 0°C to 40°C | ||
| Display Technology | Full Colour IPS | ||
| Compliance | CE, ROHS, FCC, MIC | ||
| Operating Humidity | 45% to 70% RH Non-Condensation | ||
| Water Protection (IP-Rating) | IP68 | ||
| Communication Mode | WiFi 2.4G | ||
| Power Source | DC 19.5V | ||
| Hardware Interface | Power Rail | ||
| Content Format | JPEG, PNG, BMP, MP4, GIF | ||
| Net Weight | 0.62kg | ||
