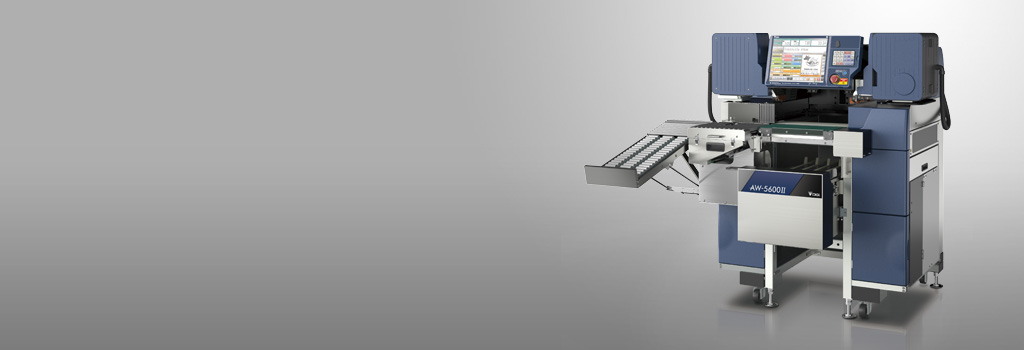

aw5600-2_WP02_01

Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness

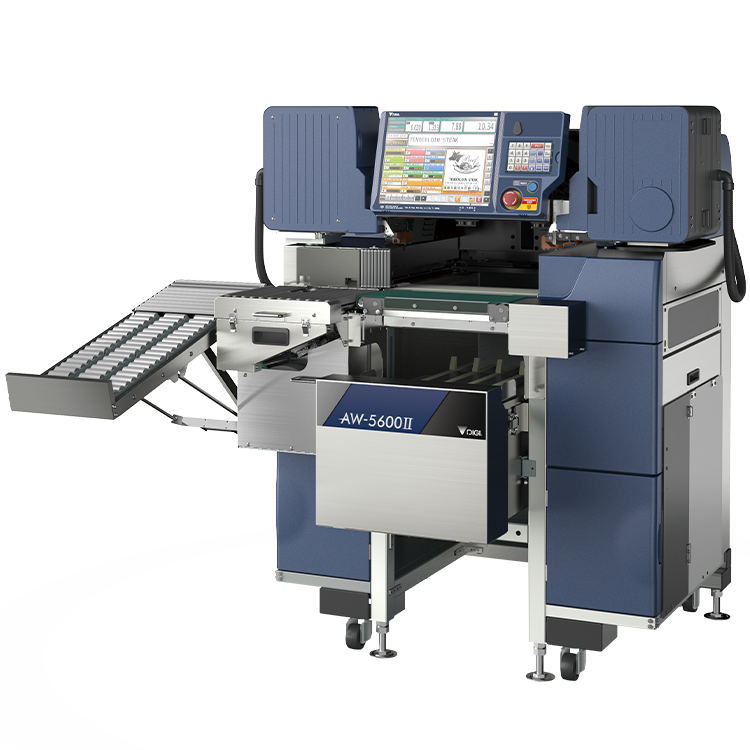

AW-5600ATII

Retail

Présentation

AW-5600ATII is a high-performance automatic weigh-wrap-label system designed for operational comfort and environmental friendliness. Reduces work load with easy and simplified operation, and conserves film and label consumption to achieve lower cost and a smaller environmental footprint.

All-in-one Wrapping Solution

With the AW-5600ATII, you can weigh, wrap, and label all with a single machine and one operator.
The operation itself is a cinch.
Please enjoy the following video to learn about the concept and benefits of this solution.

aw5600-2_WP04_04

High productivity

Increases productivity with high speed processing of up to Max.36 packages a minute, reduced need for film replacement, and a larger operation panel. Label content can be checked on the display at any time, helping to prevent labeling errors. Automatically determines the optimum wrapping conditions for commodity sizes fed into the machine.

aw5600-2_WP04_05

Economical & Ecological

Super-stretch technology makes the best use of film and helps reduce film usage, while linerless labels eliminate wasteful margins and help reduce label consumption. An energy conservation mode helps reduce power consumption while the machine is not operating. These features provide both economy and a smaller ecological footprint.

aw5600-2_WP04_05

Effective presentation by various labels

Flexible label design without restriction to a single label size enables you to highlight not only common product information, but also product characteristics and freshness. Printing information such as recipe tips for consumers enhances promotional value. Shelf labels help improve productivity, while wrap-around labels deliver an impression of quality.  Linerless labels can be applied by all labelers, including the bottom labeler.

Caractéristiques

Dimensions

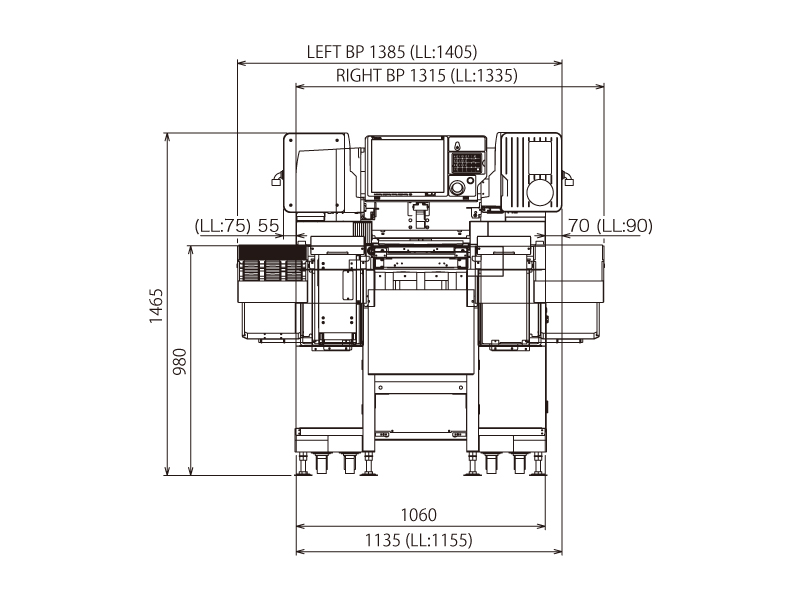

  • aw5600-2_WP05_01

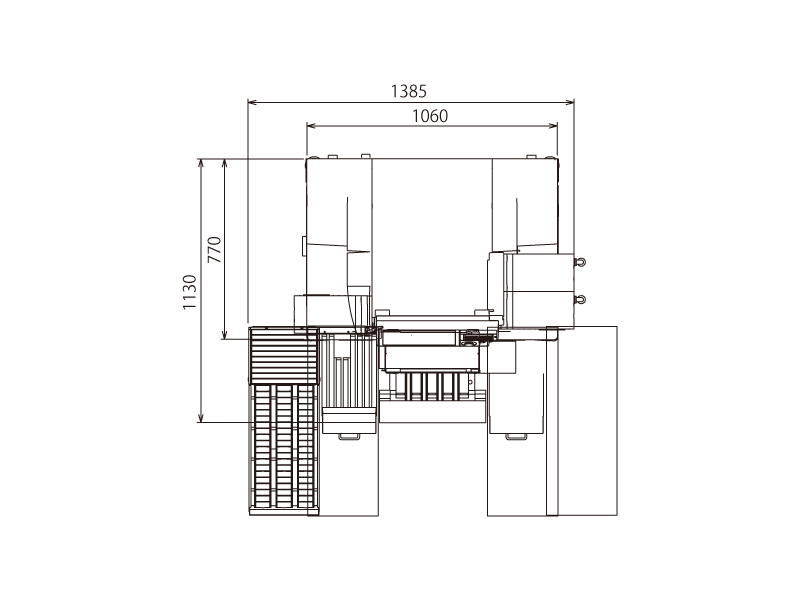

  • aw5600-2_WP05_02

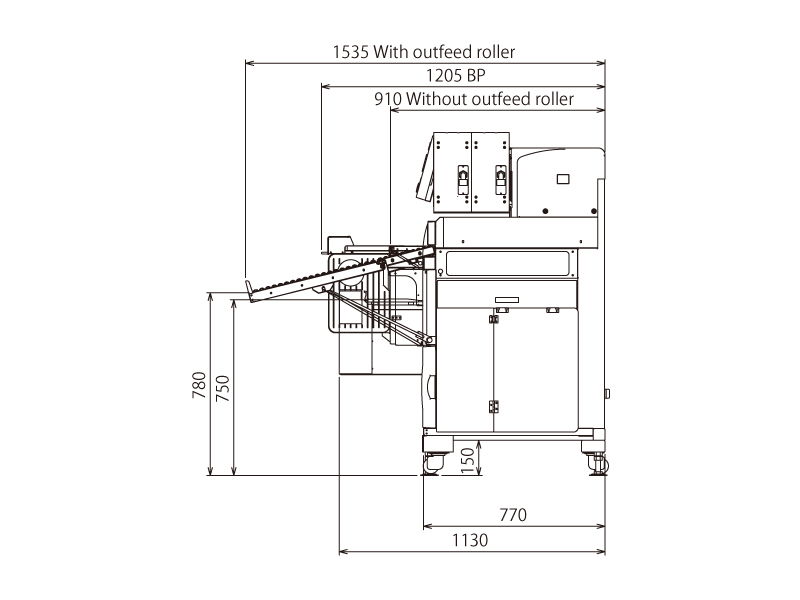

  • aw5600-2_WP05_03

Wrapping

Wrapping speed Max. 36 packages/min.
Package size Width: 130 to 380 mm / 5.1-15 inches
Height: 10 to 130 mm /0.4-5.1 inches
Depth: 80 to 254 mm / 3.1-10 inches

The combination of maximum size of each dimensions cannot be used.
The size of the package that can be wrapped also depends on the film to use.
Film roll capacity One
Film width 300 to 450 mm


Weighing

Interval type Multi interval Single interval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Labeling

Label type Thermal printer
Labeling application Automatic
Label width 40-80 mm/1.6-3.1 inches
Label length 28-105 mm/1.1-4.1 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.2 kW
220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.2 kW
Net weight Approx. 400 kg / 882 lb


Modèles

WP07

Model with pack accumulator

AW-5600ATII

This model is equipped with a pack accumulator to accommodate trays after wrapping and labeling.
WP07

Model with promotional labeler

AW-5600ATII POP

In additional to product labels, this model is equipped with a labeler for promotional labels. The machine can automatically apply both product labels and promotional labels simultaneously.
Linerless labels can be applied by all labelers.
WP07

Model with bottom labeler

AW-5600ATII BP

In additional to product labels, this model is equipped with a labeler for bottom label. The machine can automatically apply both product labels and bottom labels simultaneously.
Linerless labels can be applied by all labelers.

Étude de cas



Pam Panorama chooses DIGI as sole supplier to implement innovative solutions and reduce costs

Pam Panorama

‘’With DIGI, we feel confident about the future, because the technology we chose can adapt to our future needs.’’ Diego Berta, Pam Panorama, ICT Manager




Cutting Costs and Language Barriers: Broward Meat & Fish Bilingual AW-5600ATll

Broward Meat & Fish

For over 30 years, Broward Meat & Fish has been serving the South Florida community. With the help of the AW-5600ATll's Spanish and English Bilingual capabilities, the store can cut both language barriers and costs. It's 4x faster than employees, saving money and making it easier for staff management.

AW-5600ATll Solves Demand for High-Volume Supermarket needs at McKinnon's in Wilmington, MA.

McKinnon's Supermarkets

AW-5600ATll keeps up with demand at McKinnon's high-volume supermarket in Wilmington, MA, along with making data compatible with their other store locations.

AW-5600ATll: DIGI’s Automatic Wrapper resolves labor concerns at Piggly Wiggly in Heflin, AL

Piggly Wiggly

Piggly Wiggly employs DIGI’s weigh-wrap-labeler to reduce labor cost and downtime, and give products a consistent wrapping finish.
