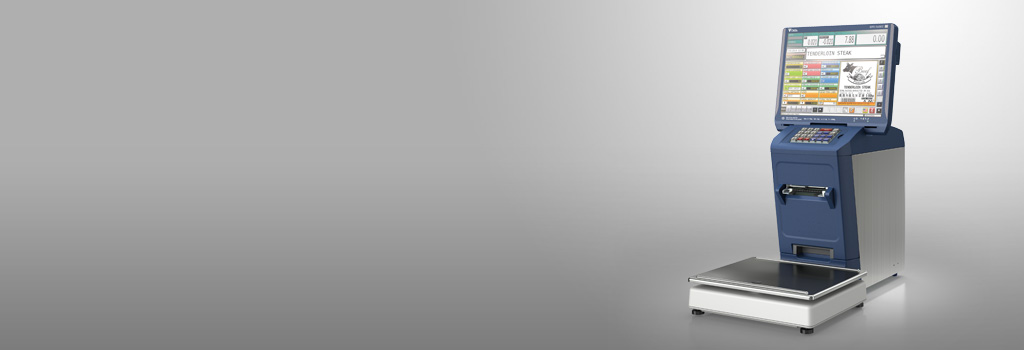

dps5600-2_WP02_01

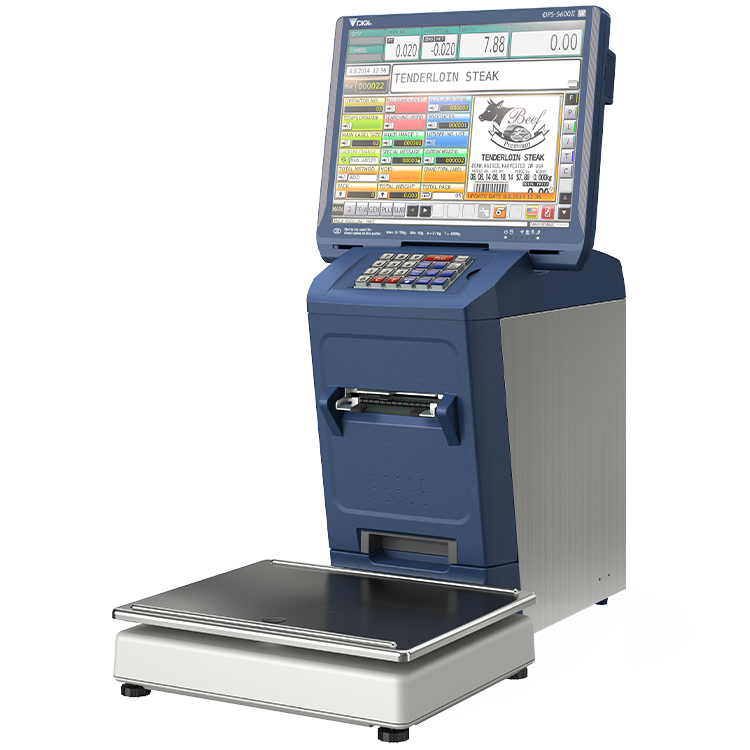

High performance pre-pack scale printer

DPS-5600II

Retail

Présentation

DPS-5600II is a high-performance pre-pack scale printer. It reduces work load with easy and simplified operation, and conserves label consumption by linerless label auto-sizing and auto-cut feature to achieve lower cost and a smaller environmental footprint.

High performance prepack scale printer

DIGI's linerless solution with auto-cutting, auto-sizing technology. This realizes flexible label format from a single roll.

dps5600-2_WP04_01

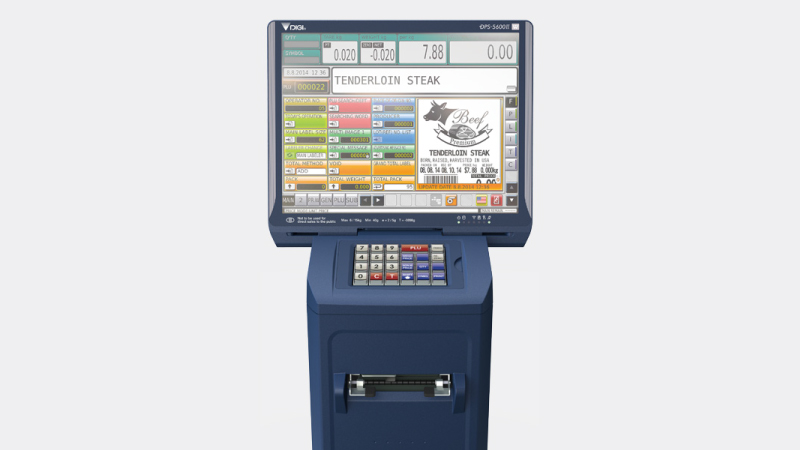

High productivity

Reduces work load by aggregating two labels into one. The 15-inch color touch screen provides easy operation. Label contents can be easily checked on the display at any time, helping to prevent labeling errors.

dps5600-2_WP04_02

Economical & Ecological

The linerless auto-label-sizing function compresses wasteful margin areas, thereby helping in the conservation of label usage. Use of linerless labels also minimizes waste and waste disposal efforts, making the daily operation more efficient and environmentally friendly.

dps5600-2_WP04_03

Effective presentation through various labels

Flexible label design without restriction to a single label size enables you to highlight not only the common product information, but also product characteristics and freshness. Printing information such as recipe tips for consumers enhances promotional value. Shelf labels help improve productivity, while wrap-around labels deliver an impression of quality.

Caractéristiques

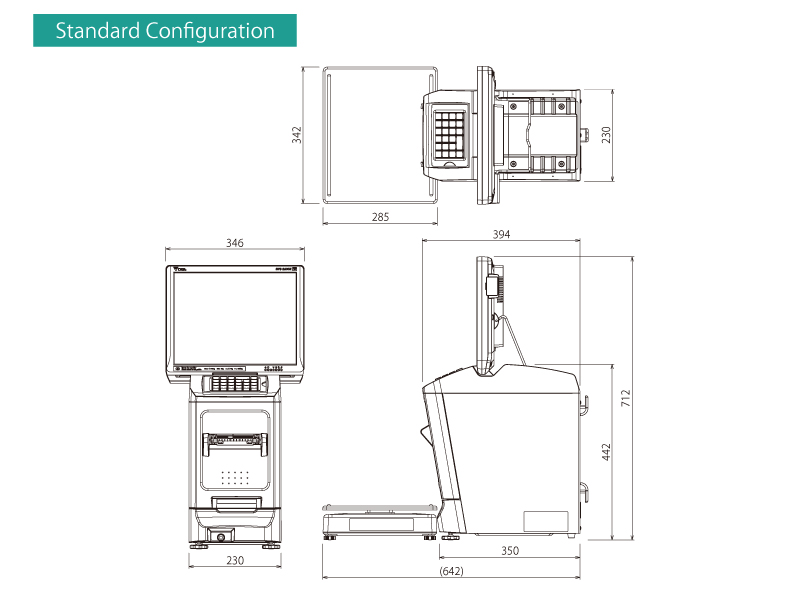

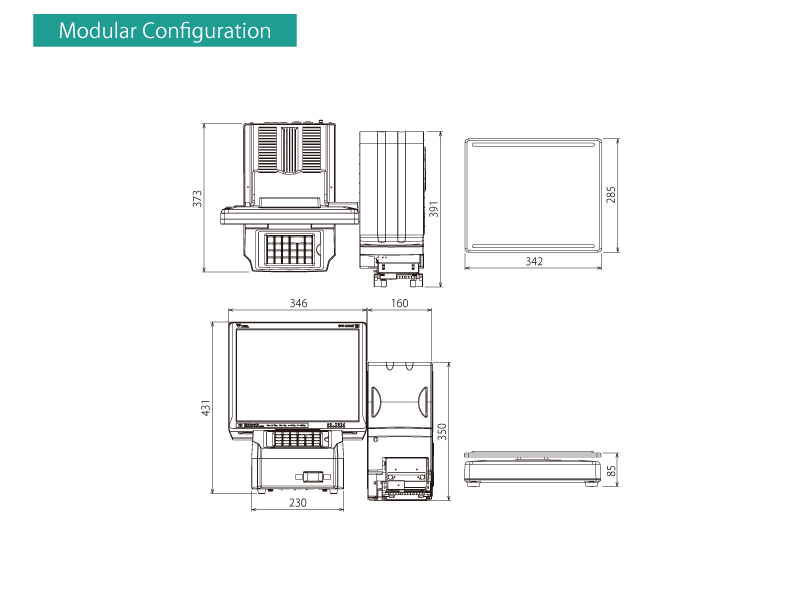

Dimensions

  • dps5600-2_WP05_01
  • dps5600-2_WP05_02

Capacity

Interval type Multi interval Single inerval
Capacity Max 3/6 kg Max 6/15 kg Max 15/30 kg Max 30/60 lb Max 30 lb
Scale interval e=1/2 g e=2/5 g e=5/10 g e=0.01/0.02 lb e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 100 g-30 kg e=0.01-0.02 lb 0.20-30 lb


Thermal printer

Label type Die-cut label Linerless label
Label width 25 - 80 mm/0.98-3.1 inches 44-59 mm/1.73-2.3 inches
Label length 20-150 mm/0.79-5.9 inches 20-500 mm/0.79-19.7 inches
* Maximum printing length is 300 mm/11.8 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption AC120 V;  60 Hz; 1.5 A,125 W
AC220-240 V;  50/60 Hz; 1.0 A,125 W
Net weight Main unit (Standed configuration)
Single labeler type:16.5 kg/36.4 lb
Main unit (Modular configuration)
Single labeler type:19.7 kg/43.4 lb
Twin labeler type:25.7 kg/56.7 lb
Scale platform
3.8 kg/8.4 lb


Modèles

dps5600-2_WP07_01

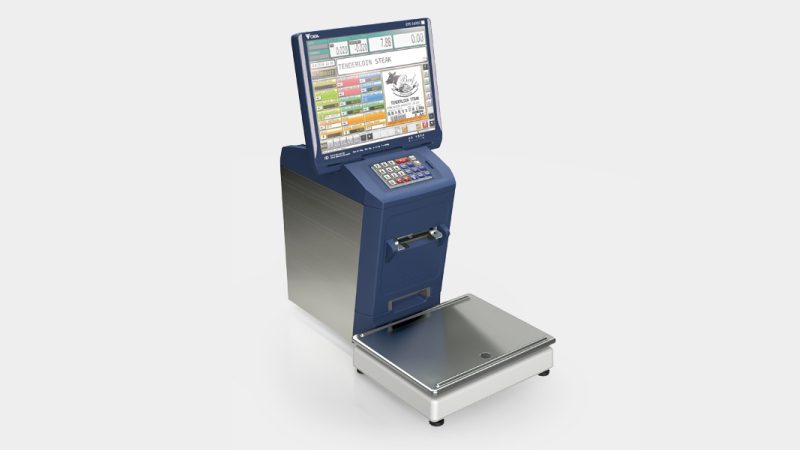

Standard configuration

DPS-5600II LL

DPS-5600II requires less floor space and labels can be easily removed from the angled design.
dps5600-2_WP07_02

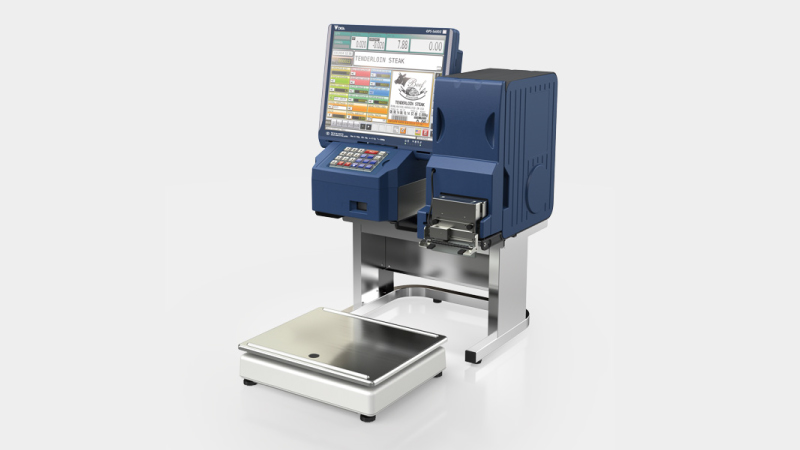

Modular Configuration

DPS-5600MII LL

DPS-5600MII provides flexibility in the layout of the console and labeler, even mounting on a hand wrap station.
