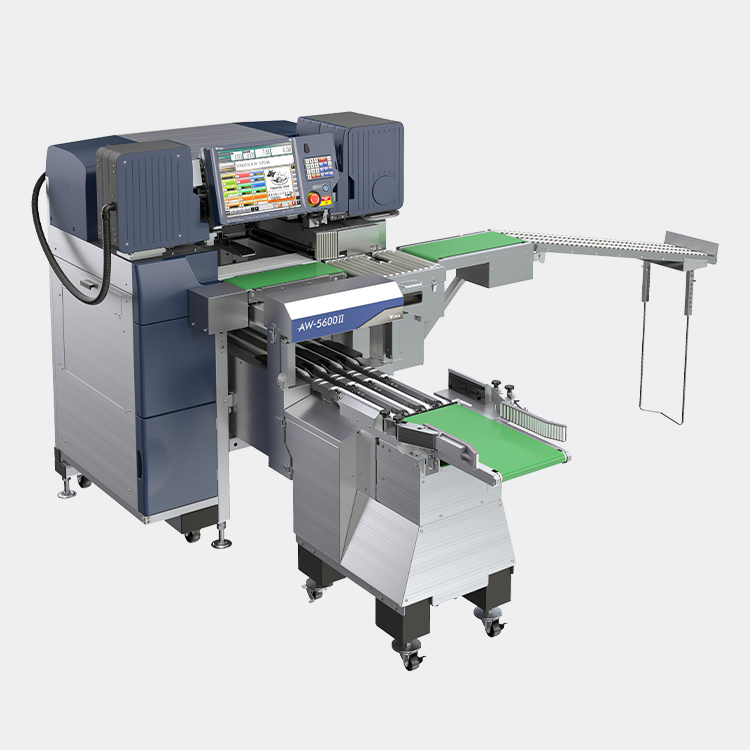

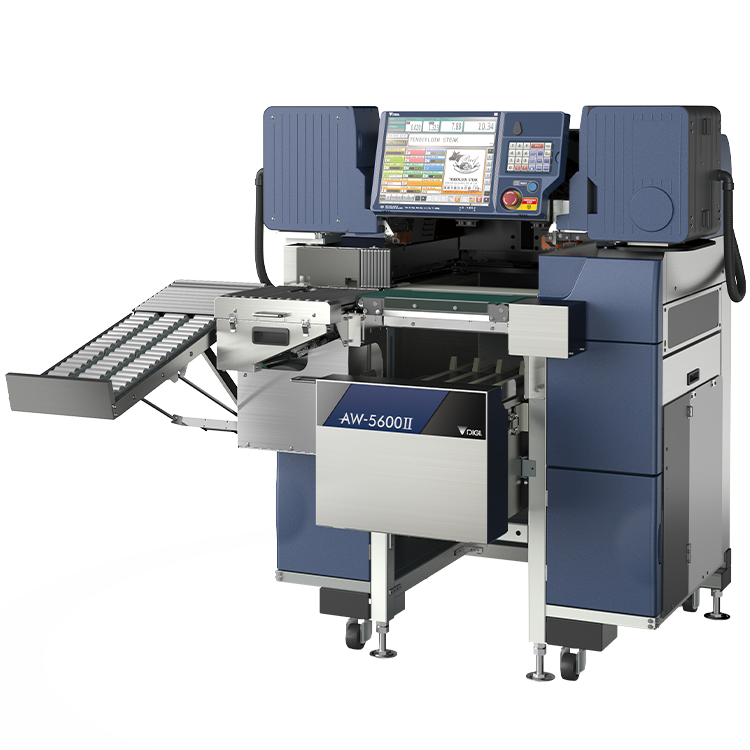

AW-5600ATII
Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness

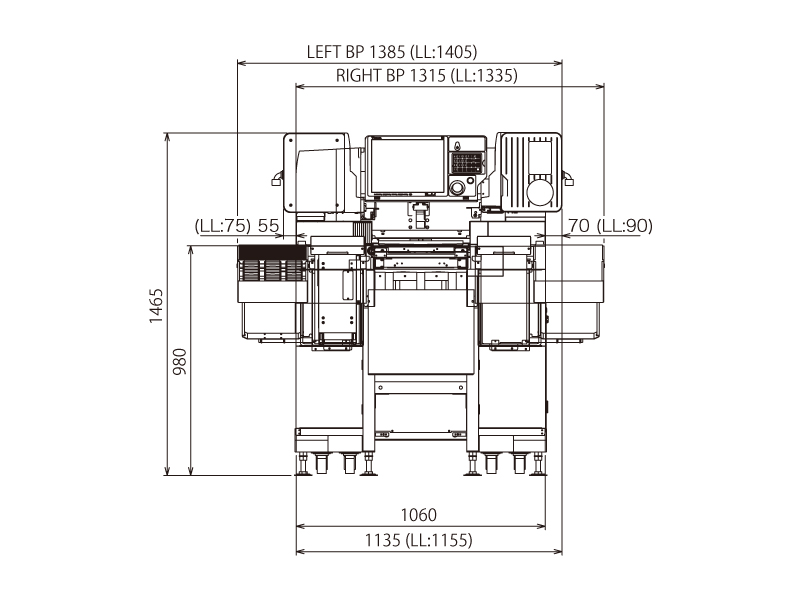

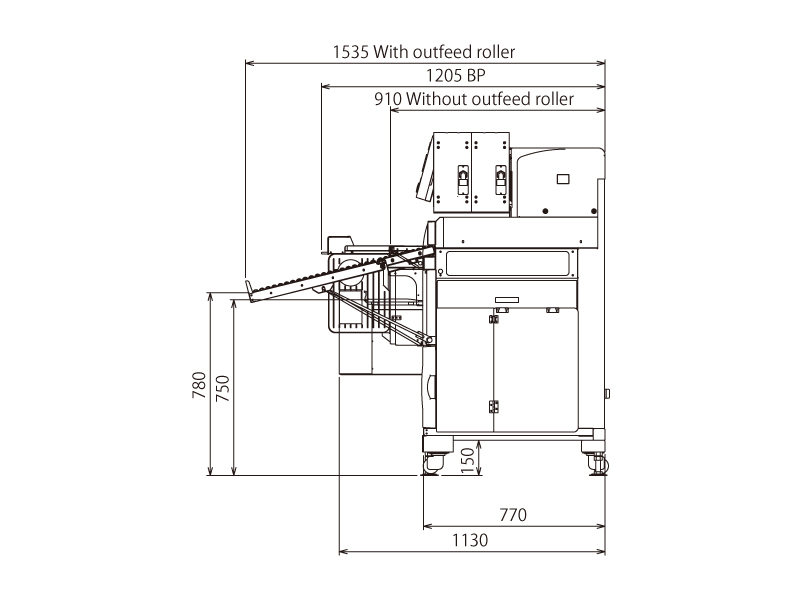

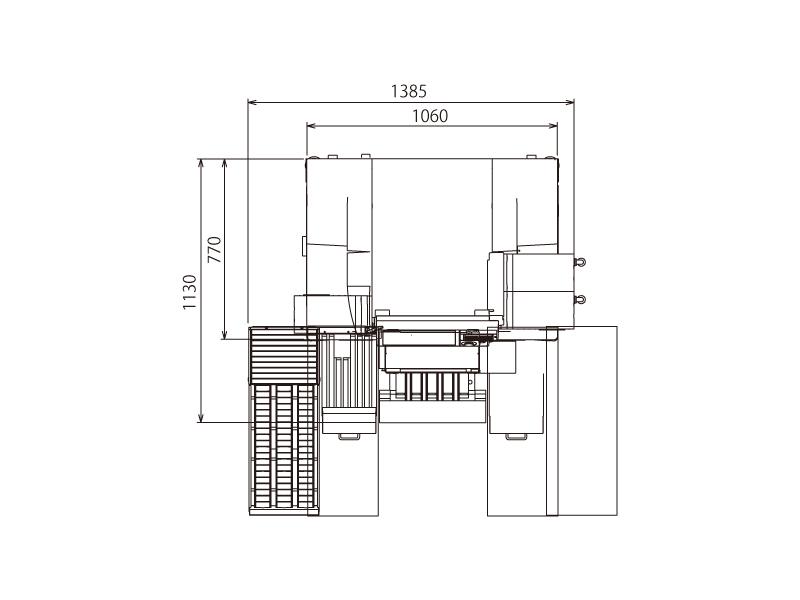

Dimensions
Wrapping

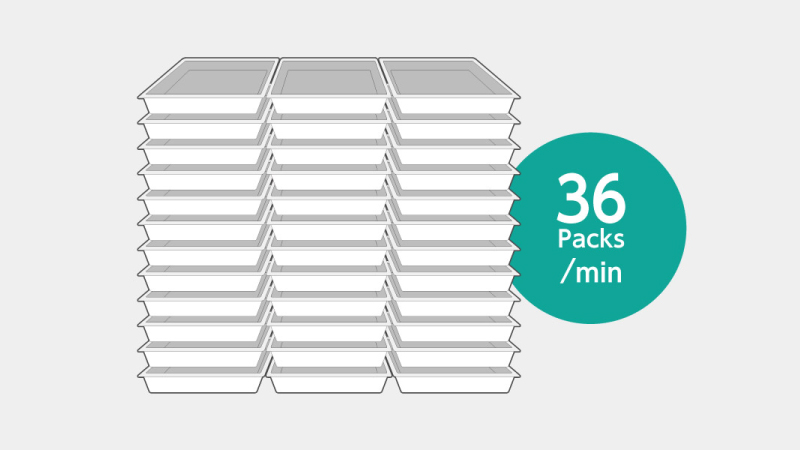

| Wrapping speed | Max. 36 packages/min. |
|---|---|
| Package size | Width: 130 to 380 mm / 5.1-15 inches Height: 10 to 130 mm /0.4-5.1 inches Depth: 80 to 254 mm / 3.1-10 inches The combination of maximum size of each dimensions cannot be used. The size of the package that can be wrapped also depends on the film to use. |
| Film roll capacity | One |

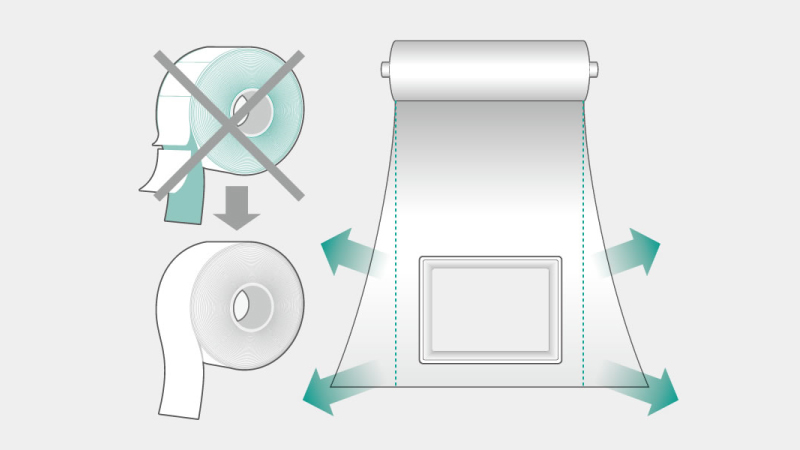

| Film width | 300 to 450 mm |
Weighing
| Interval type | Multi interval | Single interval | |
|---|---|---|---|
| Capacity | Max. 3/6 kg | Max. 6/15 kg | Max. 30 lb |
| Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
| Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb |
| Max. wrapping capacity | 5 kg | 5 kg | 11 lb |
Labeling
| Label type | Thermal printer |
|---|---|
| Labeling application | Automatic |
| Label width | 40-80 mm/1.6-3.1 inches |
| Label length | 28-105 mm/1.1-4.1 inches |
Operation console
| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch screen |
| Memory for programmable files | 18 GB |
General
| Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.2 kW 220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.2 kW |
|---|---|
| Net weight | Approx. 400 kg / 882 lb |
