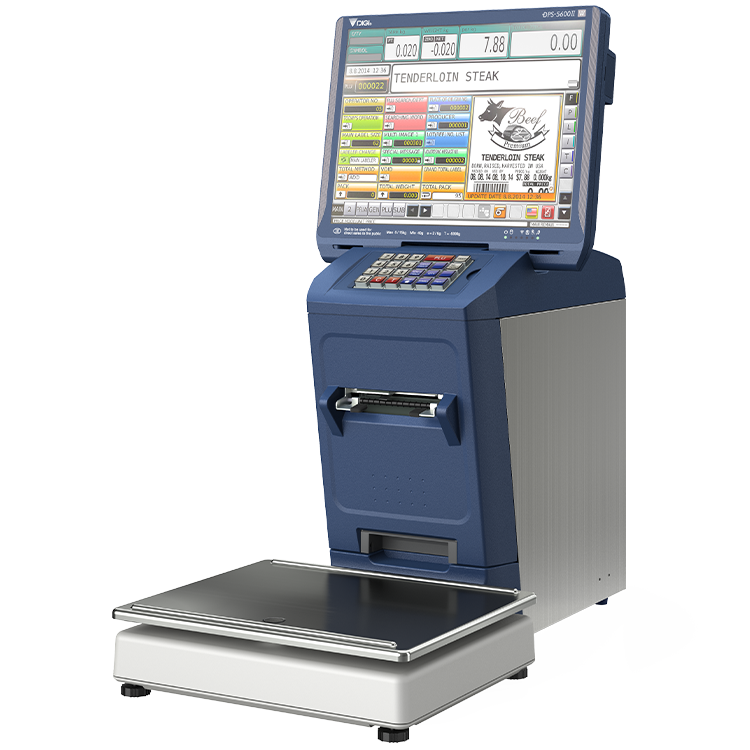

DPS-5600II
High performance pre-pack scale printer
Dimensions
Capacity
Interval type | Multi interval | Single inerval | |||
---|---|---|---|---|---|
Capacity | Max 3/6 kg | Max 6/15 kg | Max 15/30 kg | Max 30/60 lb | Max 30 lb |
Scale interval | e=1/2 g | e=2/5 g | e=5/10 g | e=0.01/0.02 lb | e=0.01 lb |
Weighing range | 20 g-6 kg | 40 g-15 kg | 100 g-30 kg | e=0.01-0.02 lb | 0.20-30 lb |
Thermal printer
Label type | Die-cut label | Linerless label |
---|---|---|
Label width | 25 - 80 mm/0.98-3.1 inches | 44-59 mm/1.73-2.3 inches |
Label length | 20-150 mm/0.79-5.9 inches | 20-500 mm/0.79-19.7 inches * Maximum printing length is 300 mm/11.8 inches |
Operation console
Display panel | TFT LCD color (15 inches) touch panel |
---|---|
Operation keys | Mechanical keys and touch screen |
Memory for programmable files | 18 GB |
General
Power source and power consumption | AC120 V; 60 Hz; 1.5 A,125 W AC220-240 V; 50/60 Hz; 1.0 A,125 W |
|
---|---|---|

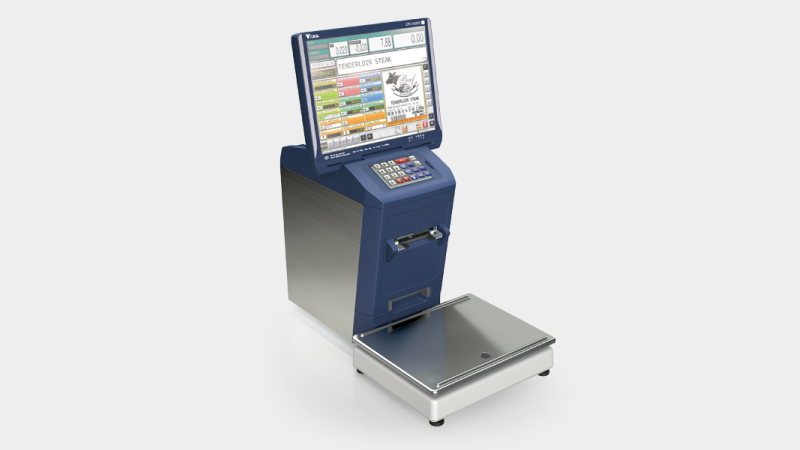

Net weight | Main unit (Standed configuration) Single labeler type:16.5 kg/36.4 lb |
|

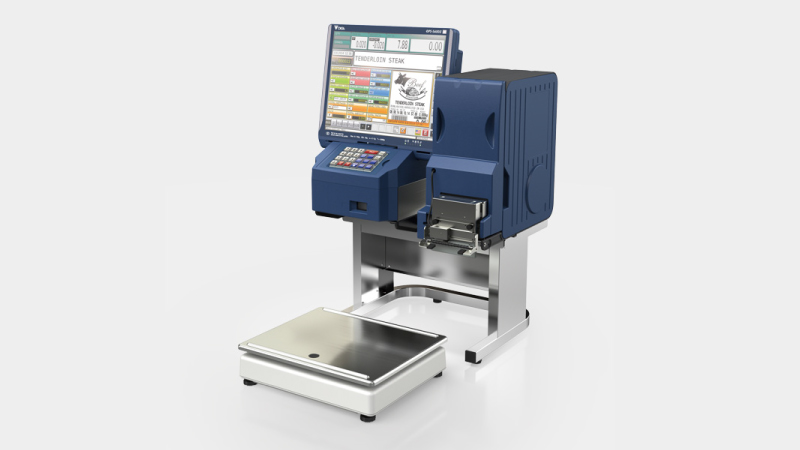

Main unit (Modular configuration) Single labeler type:19.7 kg/43.4 lb Twin labeler type:25.7 kg/56.7 lb |
||
Scale platform 3.8 kg/8.4 lb |
