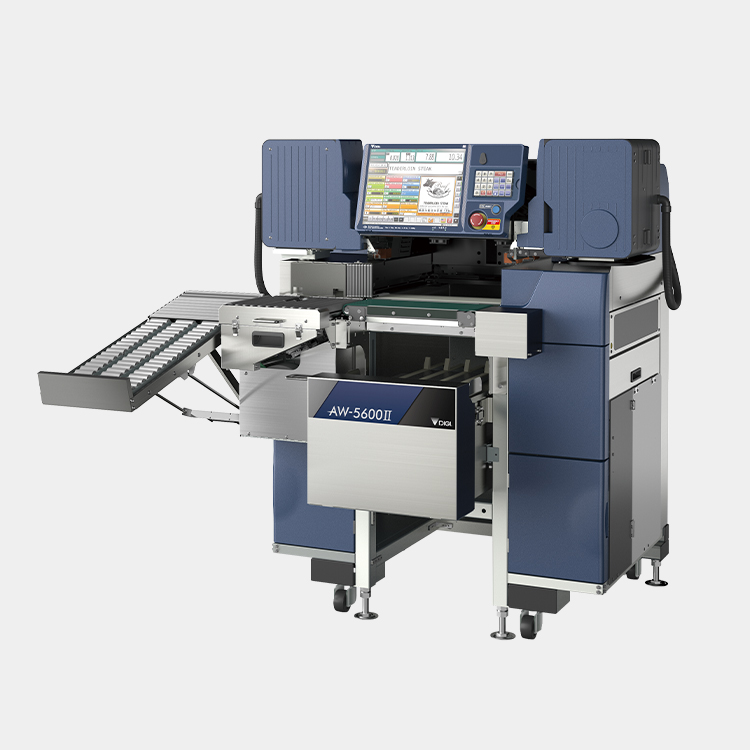

AW-5600ATII

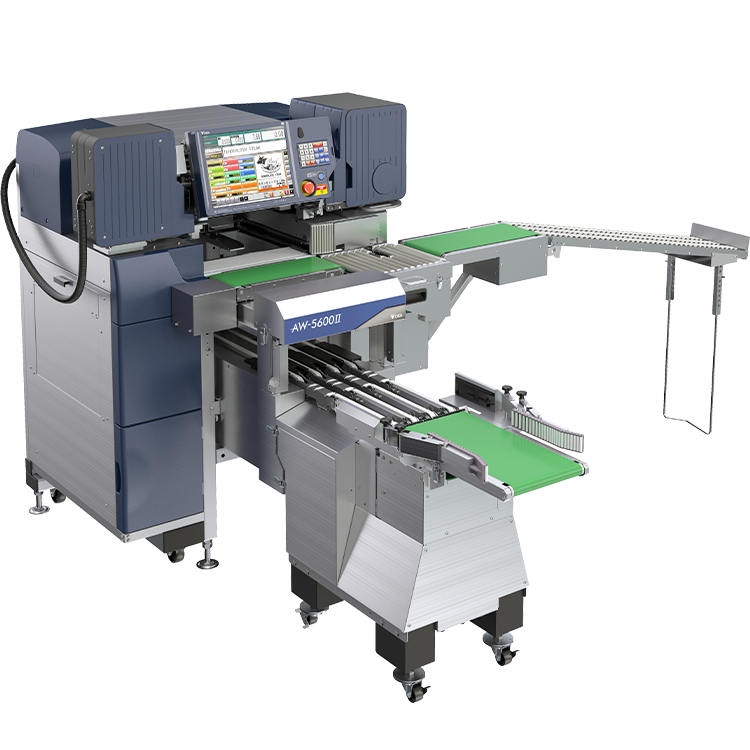

Auto-Infeed

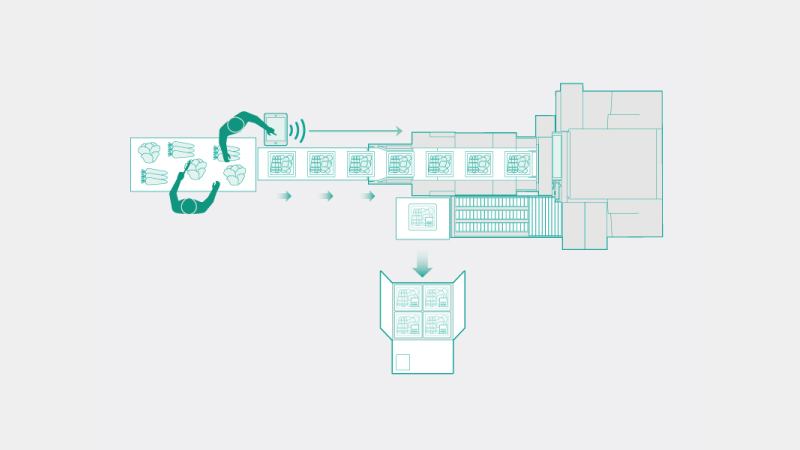

Fully integrated weigh-wrap-label solution with automatic infeed conveyor for more efficient operation and high productivity.

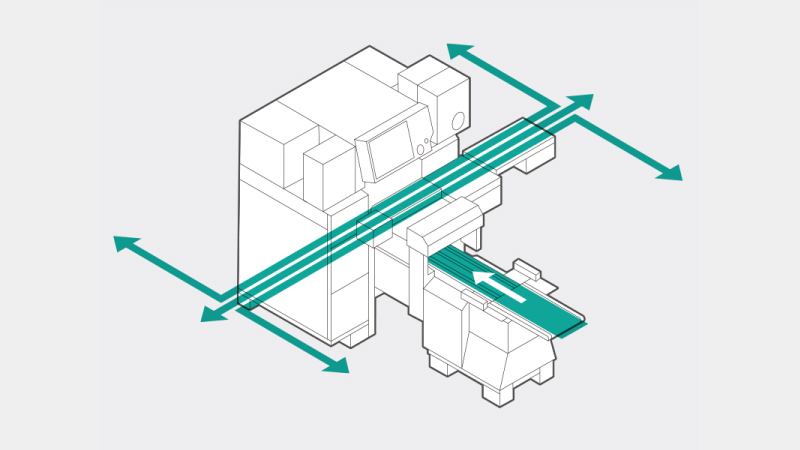

Dimensions
Wrapping

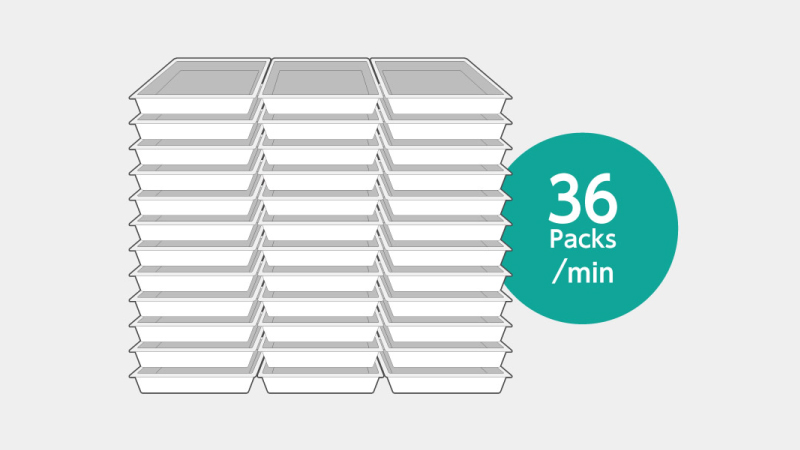

Wrapping speed | Max. 36 packages/min. |
---|---|
Package size | Width: 130 to 380 mm / 5.1-15 inches Height: 10 to 150 mm /0.4-5.9 inches Depth: 80 to 254 mm / 3.1-10 inches The combination of maximum size of each dimensions cannot be used. The size of the package that can be wrapped also depends on the film to use. |
Film roll capacity | One |

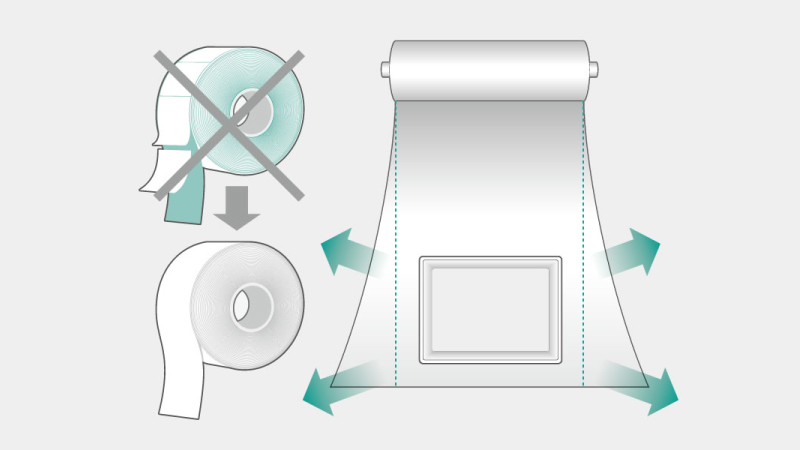

Film width | 300 to 450 mm |
Weighing
Interval type | Multi interval | Single inerval | |
---|---|---|---|
Capacity | Max. 3/6 kg | Max. 6/15 kg | Max. 30 lb |
Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb |
Max. wrapping capacity | 5 kg | 5 kg | 11 lb |
Labeling
Label type | Thermal printer |
---|---|
Labeling application | Automatic |
Label width | 40-80 mm/1.6-3.1 inches |
Label length | 28-105 mm/1.1-4.1 inches |
Operation console
Display panel | TFT LCD color (15 inches) touch panel |
---|---|
Operation keys | Mechanical keys and touch screen |
Memory for programmable files | 18 GB |
General
Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 2.4 kVA,2.4 kW 220-240 V; 1 φ; 50/60 Hz; 2.4 kVA,2.4 kW |
---|---|
Net weight | Approx. 490 kg / 1080 lb |
