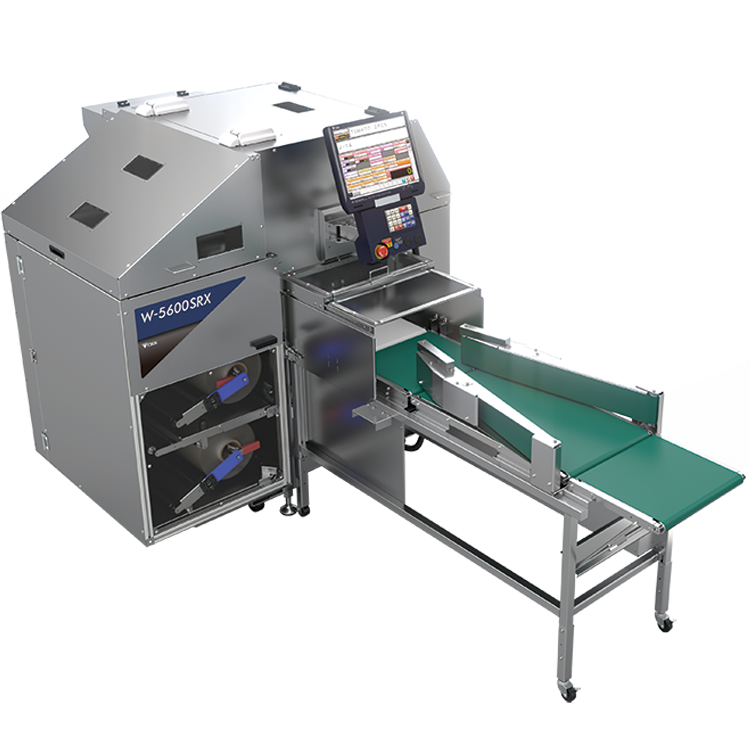

W-5600SRX

High-speed in-line stretch wrapping system

Dimensions

Front Viewunit = mm/inches

*Front View

unit = mm/inches

Side View

*Side View

Top View

*Top View

Wrapping

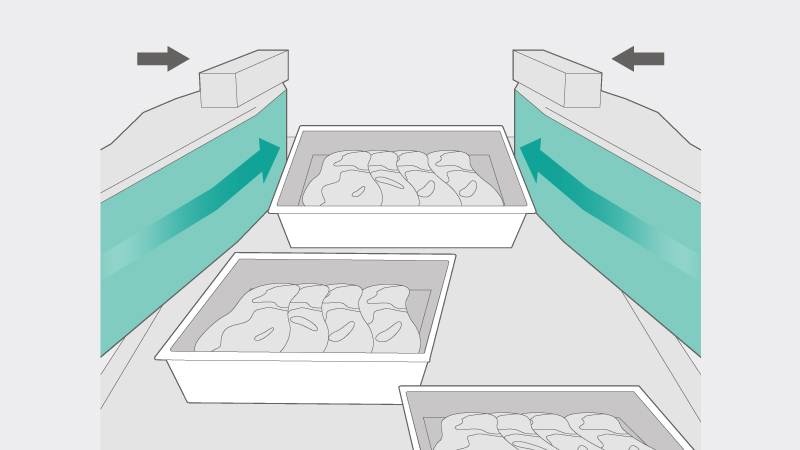

Wrapping method Stretch wrapping method
Max. wrapping capacity Up to 5kg

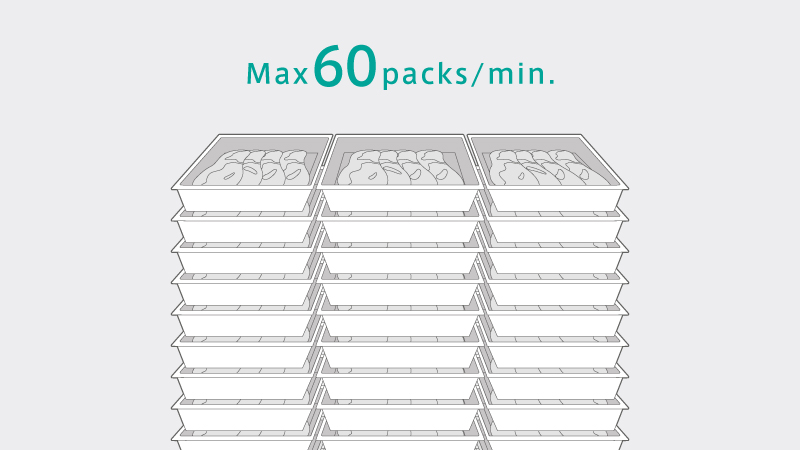

Wrapping speed Max. 1 package/sec. (60 packages/min.)
Package size
Width: 130 - 380mm (5.1" - 15")
Height: 10 - 150mm (0.4" - 5.9")
Depth: 80 - 260mm (3.1"- 10.2")

The combination of maximum size of each dimensions cannot be used.
The package size that can be wrapped also depends on the dimensions of the film in use.
Film roll capacity Two rolls (auto-switching)
Film type PVC, Polyethylene

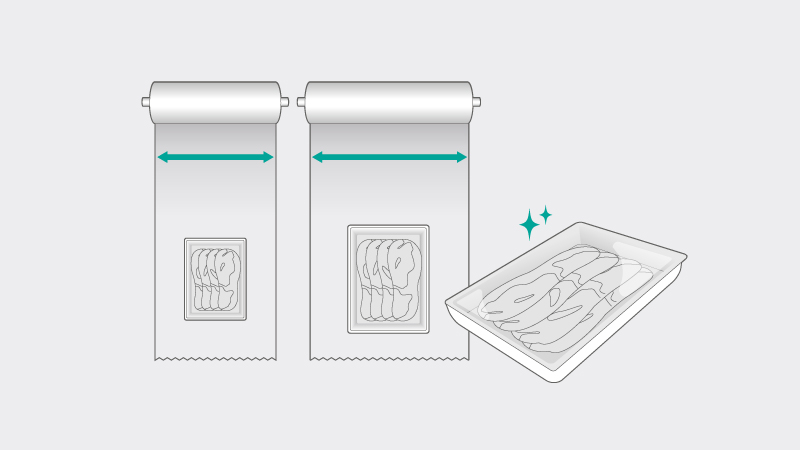

Film width
300 - 500mm (12" - 19.7")

Due to machine settings, the width difference between the two films in use has to be 50mm or 50mm increments.


Operation console

Display panel TFT LCD color (15 inches) touch panel
Keypad Mechanical keys and touch screen
Memory capacity for programmable files 18 GB


General

Power source and power consumption AC220-240V; 50/60Hz; 14A, 2.7kW
Net weight Approx. 600kg/1,322 lbs.
