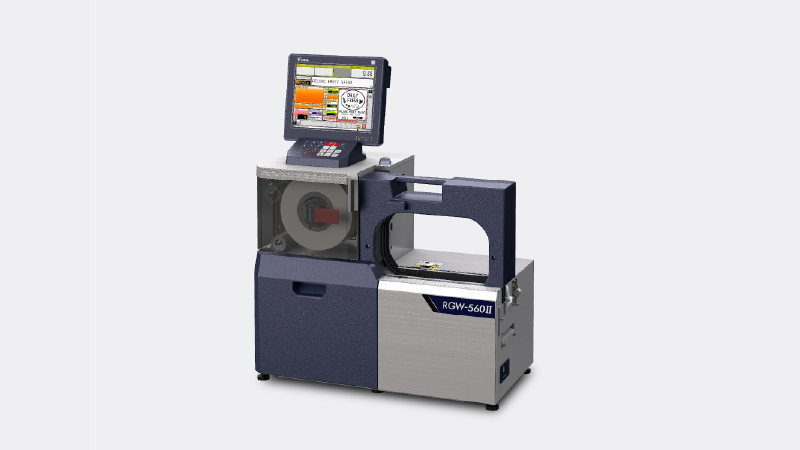

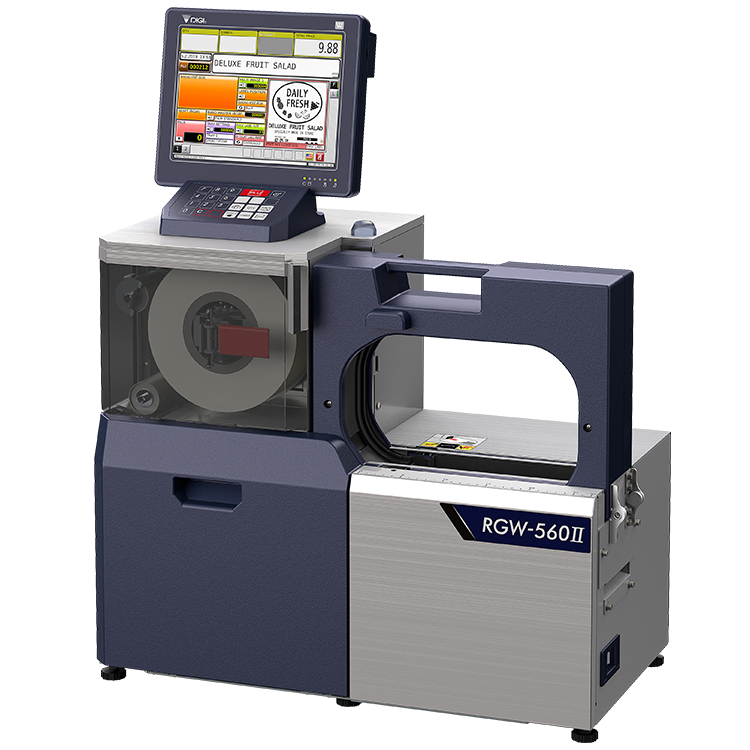

RGW-560II
Product Strap Banding Machine
Dimensions
Specifications
Banding
| Package size | Width: 50-240mm (2.0-9.4 inches) Height: 10-150mm (0.4-5.9 inches) Depth: 80mm or more (3.1 inches or more) |
|---|---|
| Banding speed | Max: 12 packages/min. Note: The banding speed may vary depending on the length of the band format. |
Printer

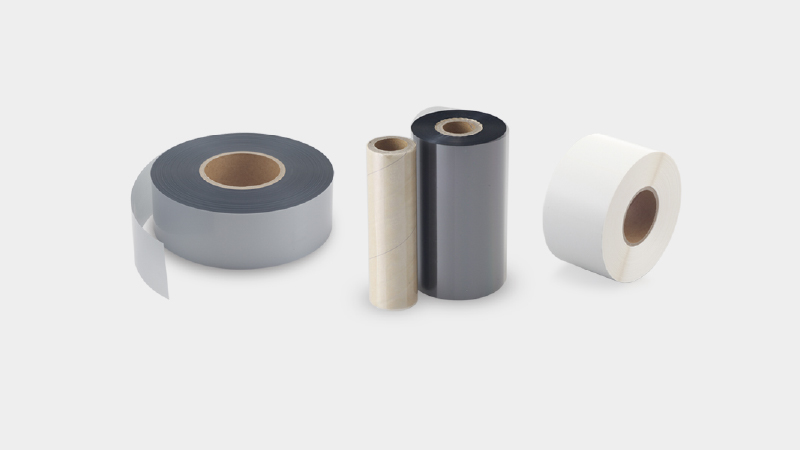

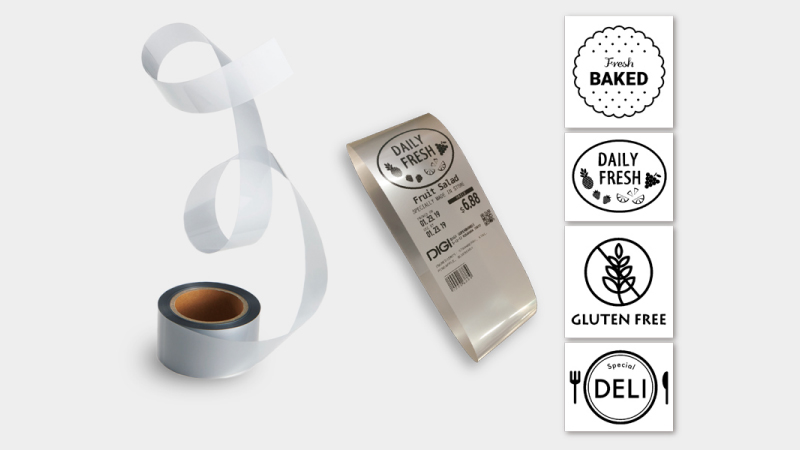

| Banding film type | OPP |
|---|---|
| Print method | Thermal transfer |
| Dot density | 11.8dot/mm (300dpi) |
| Film width | 60mm or 40mm |
| Printing area | Max. 300mm (Between 95mm to 395mm from top of banding label) |
Operation console
| Display panel | TFT LCD color (10.4 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch panel |
| Memory for programmable files | 18GB |
General
| Power source and power consumption |
AC 100-120 or 220-240V, 50/60Hz 280W |
|---|---|
| Net weight | ・Apporpx. 41.4kg (RGW-560Ⅱ) ・Apporpx. 38kg (RGW-560ⅡCT) |
| Operation humidity | 40 to 80%RH with no condensation |
