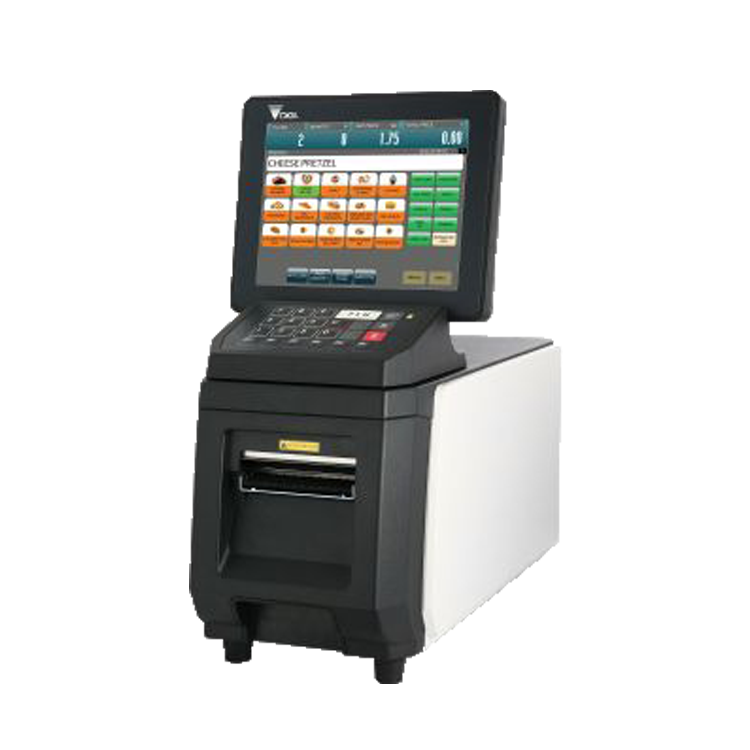

DP-5000e

Versatile printer designed for small work space

Dimensions

dp5000e_WP05_01
dp5000e_WP05_02
dp5000e_WP05_03

Specification

Model DP-5000e
Dimension W x D x H (mm) 220 x 423 x 423
Operation Display 8.4" TFT SVGA with Touch Panel
Display Size W x D (Pixels) 800 x 600

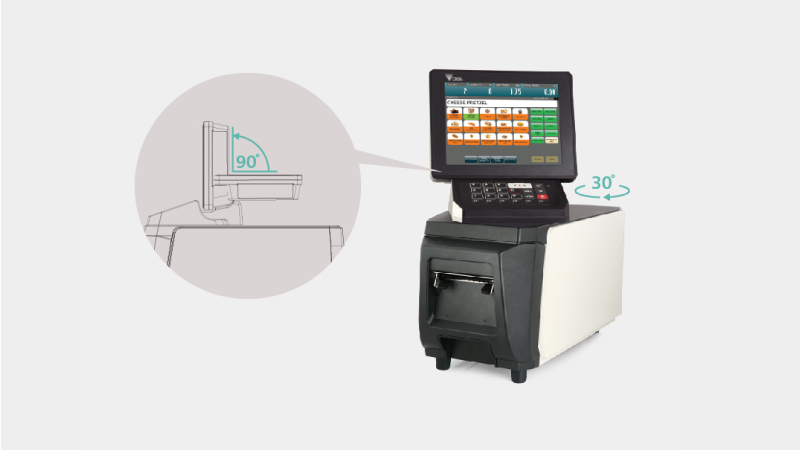

Display Rotatable Degree + / - 30 degree left and right ; 90 degree up and down

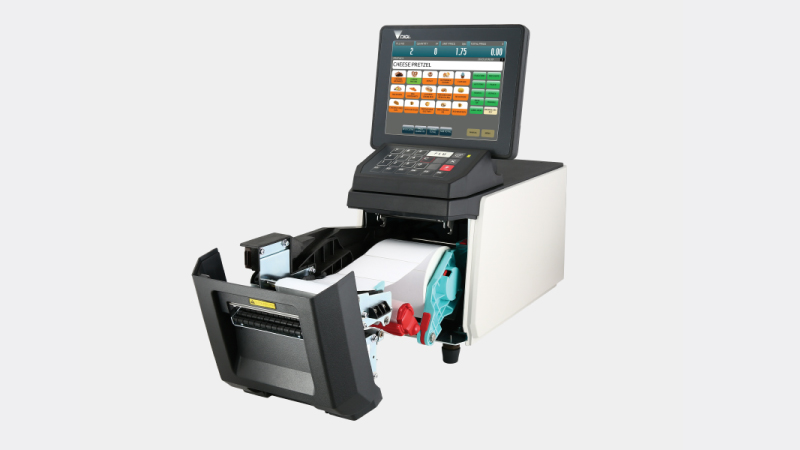

Label / Receipt Types Liner Linerless with Auto-Cutter
Roll Diameter Max 125mm Max 125mm
Roll Width Max 80mm Max 80mm
Print Width Max 80mm Max 80mm
Printing Speed Max 150mm / second* Max 150mm / second*
Print Resolution 300 dpi 300 dpi
Barcode Type Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix
Power Source AC 100V / 220V
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket
Net Weight 10.8 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
