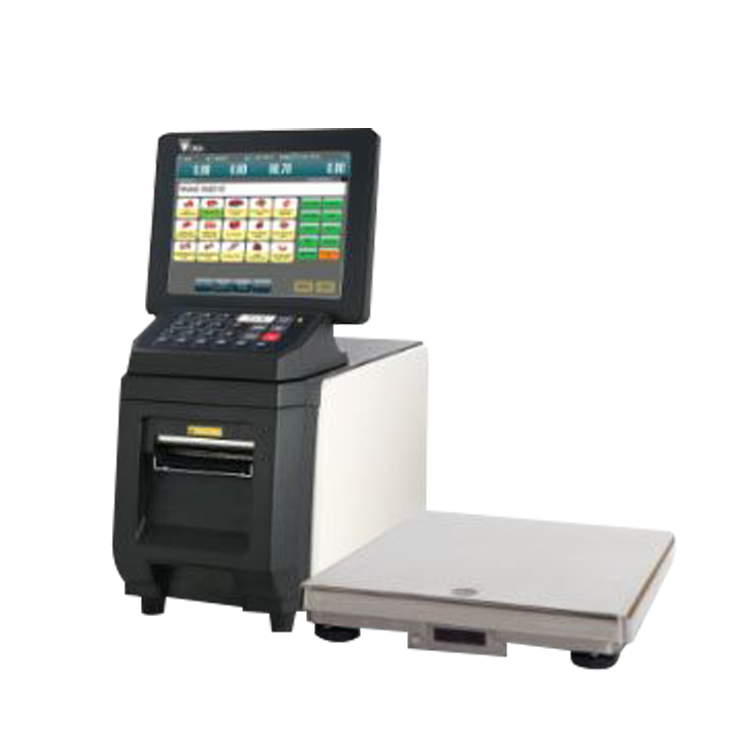

DPS-5000e

Versatile prepack scale designed for small work spaces

Dimensions

dps5000e_WP05_01
dps5000e_WP05_02
dps5000e_WP05_03

Specification

Capacity Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 5g/ 0.01lb e= 10g
1/ 6,000 - e= 5g
1/ 7,500 e= 2g -
Capacity Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 2/ 5g e= 5/ 10g




Model DPS-5000e
Dimension W x D x H (mm) DPS-5000e 220 x 423 x 423

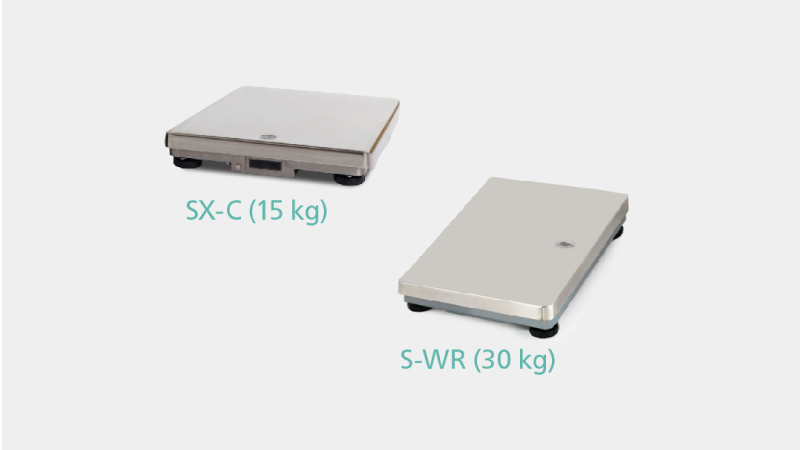

Platform  SX-C (15kg): 294 x 354 x 54 S-WR (30kg): 295 x 355 x 55
Short Stand (Option) 210 x 369 x 183
Operation Display 8.4" TFT SVGA with Touch Panel
  Display Size W x D (Pixels) 800 x 600

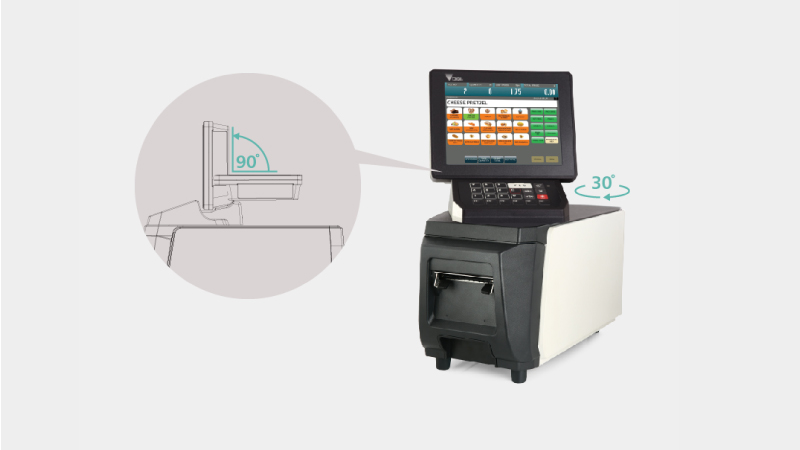

Display Rotatable Degree + / - 30 degree left and right ; 90 degree up and down
Label / Receipt Types Liner Linerless with Auto-Cutter
Roll Diameter Max 125mm Max 125mm
Roll Width Max 80mm Max 80mm
Print Width Max 80mm Max 80mm
Printing Speed Max 150mm / second* Max 150mm / second*
Print Resolution 300 dpi 300 dpi
Barcode Type Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix
Power Source AC 100V / 220V
Power Consumption 80W
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket
Net Weight DPS-5000e 11.2 kg
Platform SX-C: 6.65 kg S-WR: 4.5 kg
Short Stand (Option) 3.4 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
