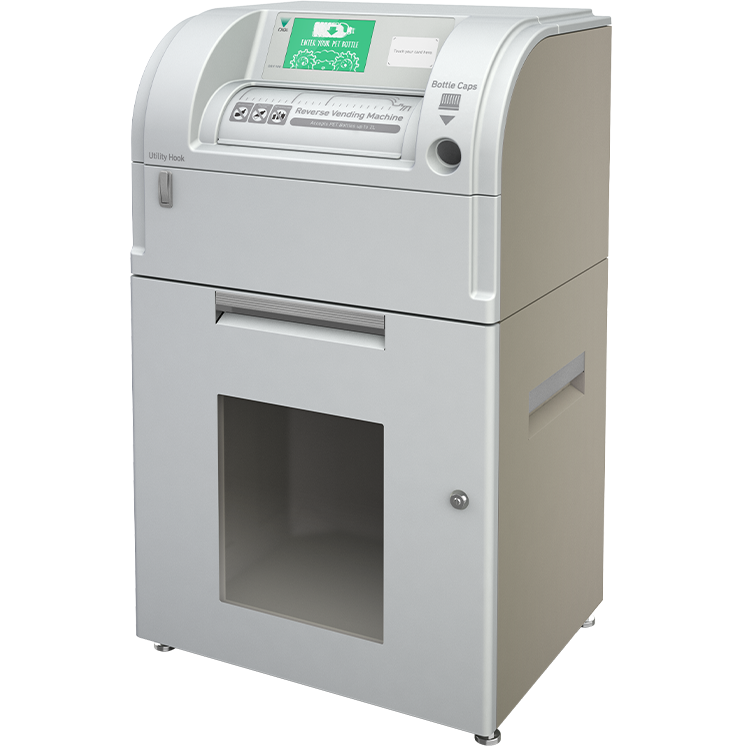

DRV-100
Sustainable PET plastic bottle recycling in a compact form factor

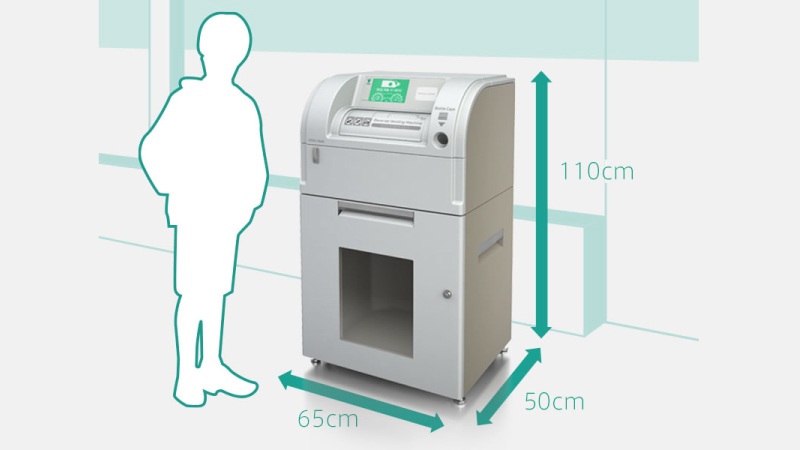

Dimensions
*DRV-100
*DRV-100T
Basic specifications
| DRV-100 | DRV-100T | |
|---|---|---|
| External Dimensions (W × D × H) |
650mm × 500mm × 1,100mm | 650mm × 500mm x1,330mm |
| Net Weight | Approx 149 kg | Approx 172 kg |
| Storage Box Size (W × D × H) |
530mm x 450mm × 440mm (Max) | 525mm x 445mm × 649mm (Max) |
| Collection Bag Capacity (W × D × H) *Estimated Size |
For bottles:100ℓ For caps 180mm × 120mm × 400mm |
For bottles :120ℓ For caps: 180mm × 120mm × 400mm |
| Power Supply Voltage/ Power Consumption |
Single phase 100V / 1.05kW | |
| Power Supply Connector | Flat blade two-pole plug with grounding prong 125V 15A rating | |
| Operating Environment (Temperature/ Humidity) |
0 to 40℃ 90%RH (Max) *with no condensation | |
| Processing Speed | About 10/ min | |
| Compatible Bottle Sizes | φ45 × 116mm – φ120 × 340mm | |
| Operating Noise Level | 68.7dB (Max) | |
| Bottle Material Recognition | Combination of all sensor inputs | |
| Display | 7.0 inch TFT color display | |
| Touch Panel | Resistive pressure-sensitive membrane touch panel | |
| Communications | Wireless mobile router | |
Note: The above specifications are for models sold in Japan.
