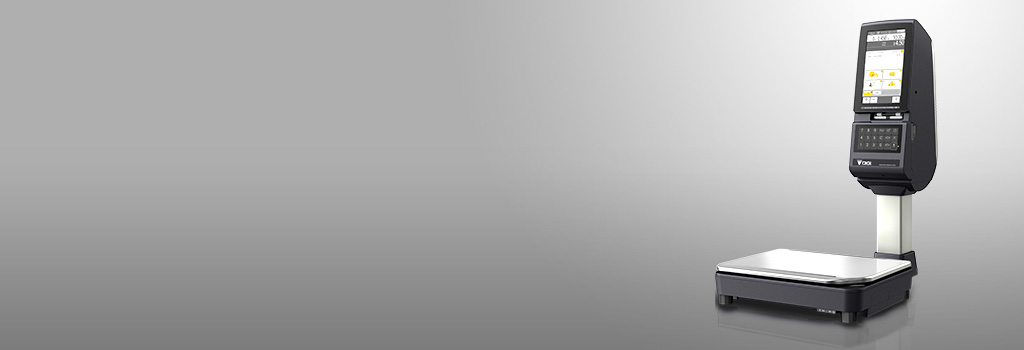

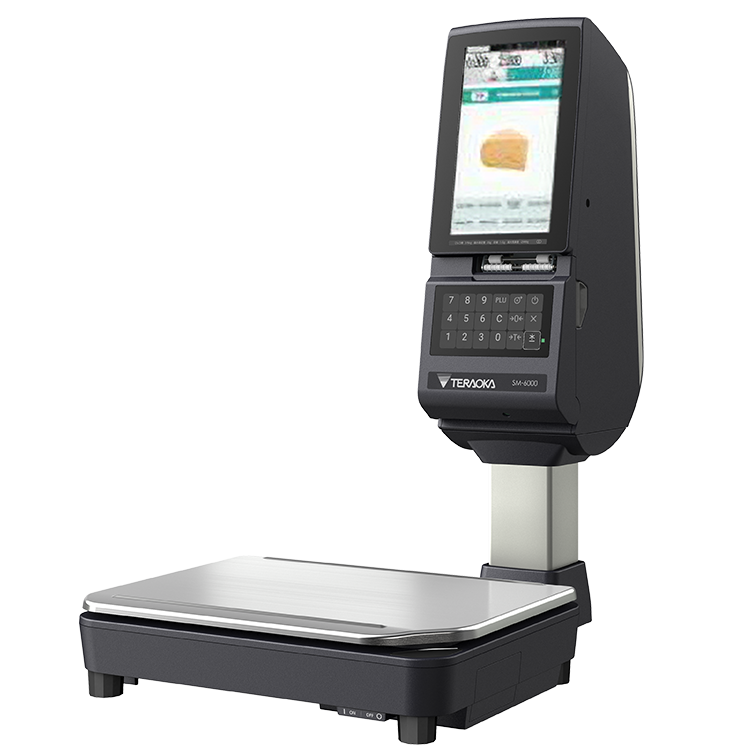

SM-6000

Be free from limits. Be free from the status quo.

Dimensions

sm6000_WP05_01
sm6000_WP05_02
sm6000_WP05_03

Specifications

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

Model SM-6000EV
(Long Pole)
SM-6000EV PLUS
(Long Pole)

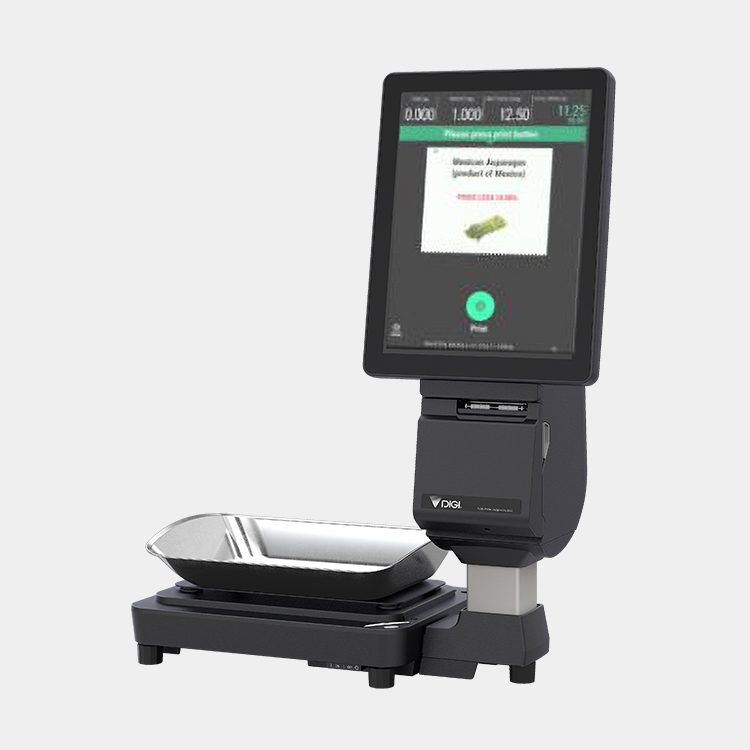

SM-6000SSP
(Long Pole)
Dimensions WxDxH [mm] 364 × 464 × 637 411 × 479 × 675 (793) 364 × 464 × 793
Operator Display 8" TFT WVGA with Capacitive Touch (480×800)
15" TFT XGA with Touch (768×1024)
Customer Display 8" WVGA (480×800)
15" TFT XGA (768×1024)
Display Resolution 1/3000, 1/6000, 1/7500
Keyboard 18 × Function Keys (For 8" Operator only)
Label / Receipt Types Liner Less With Auto-Cutter
Roll Diameter 95mm (Max)
Print Width 60mm (Max)
Paper Width 44mm (Min) - 62mm (Max)
Printing Speed 130mm / second* (Max)
Print Resolution 300 dpi
Power Source 100-240 VAC (32W typ/ 65W printing) complied power saving 80PLUS silver for 200~240VAC & 80PLUS Gold for 100~120VAC
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface Ethernet 10 /100 Base T, 4×USB 2.0, RJ11
Standard Built-in Speed ID, BS-04

To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
