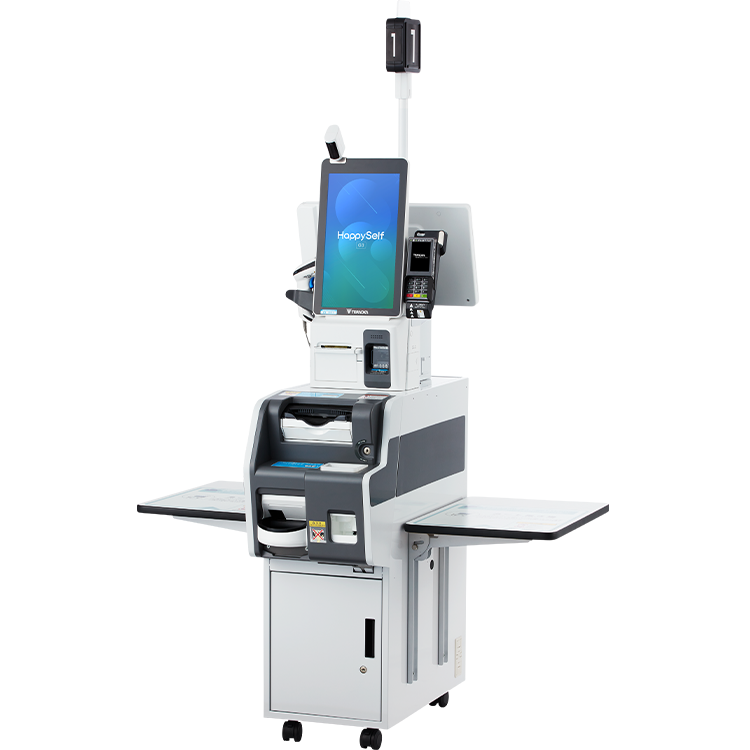

HappySelf (G3)

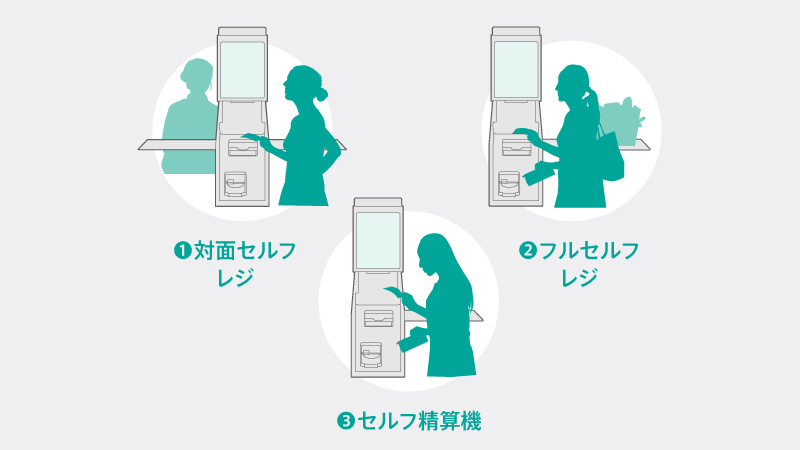

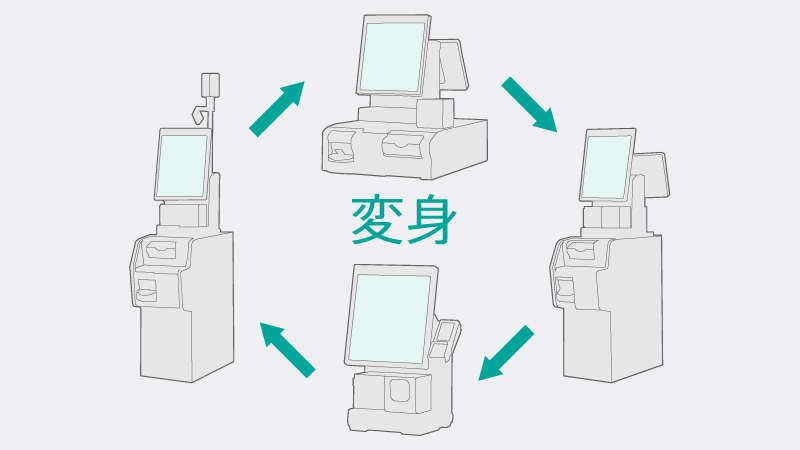

Semi-self checkout, full-self checkout, and self-payment functionality in one versatile unit. Multi-mode self checkout with enhanced flexibility.

HappySelf(G3) Option selection
Control unit OS Linux -
Main storage SSD: 32GB or more
HDD: 500GB or more
-
Interface USB2.0 port Side (left) x 6 Side (right) x 1 -
Serial port RS-232C x 4
Scanner port RS-232C × 1
LAN 1000/100/10BASE-TX × 1
For drawer 24V × 1 (6-pin)
Operator display Color LCD Touch panel 15" TFT color LCD
Keyboard Mechanical keys 52 keys
Customer display Color LCD Touch panel 15.6" TFT color LCD -
Receipt printer Printing method Thermal printing -
Printing speed Up to 250 mm/sec
Paper width 58 mm
Paper exchange Drop-in system
Magnetic card reader Slide type JIS-I/JIS-II compatible
Automatic change machine Fuji Electric ECS-777
Power supply unit Main power supply AC100V±10% 50/60Hz -
UPS Built-in UPS (for power failure shutdown)
Power consumption When connected to an automatic change ticket machine Maximum 210 W -
No automatic change ticket machine connection Maximum 100 W
* The configuration differs depending on the model type.
