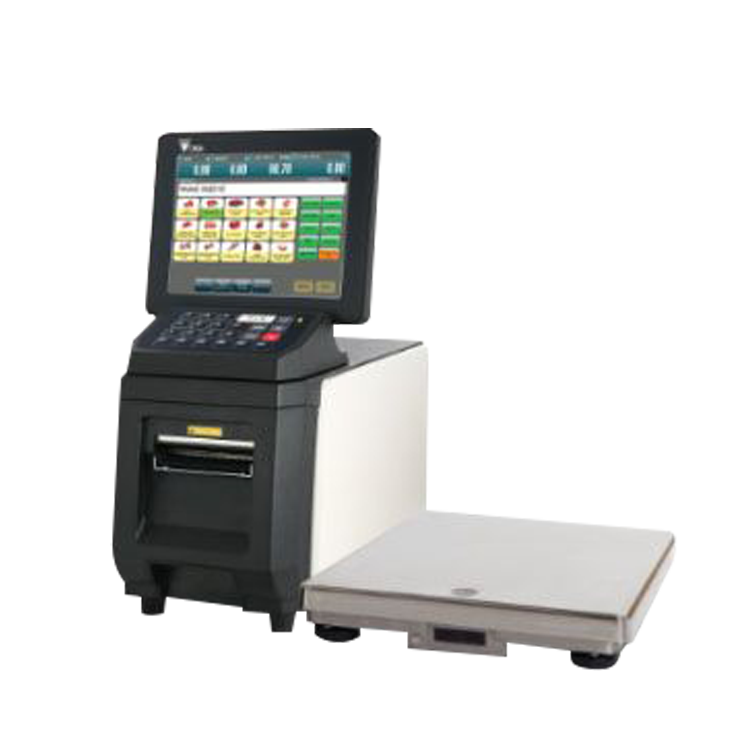

DPS-5000e
Versatile prepack scale designed for small work spaces
Dimensions
Specification
Capacity | Max 15kg/ 30lb | Max 30kg | |
---|---|---|---|
Single Interval | 1/ 3,000 | e= 5g/ 0.01lb | e= 10g |
1/ 6,000 | - | e= 5g | |
1/ 7,500 | e= 2g | - | |
Capacity | Max 6kg/ 15kg | Max 15kg/ 30kg | |
Multi Interval | 1/ 3,000 | e= 2/ 5g | e= 5/ 10g |
Model | DPS-5000e | ||||
---|---|---|---|---|---|
Dimension W x D x H (mm) | DPS-5000e | 220 x 423 x 423 | |||

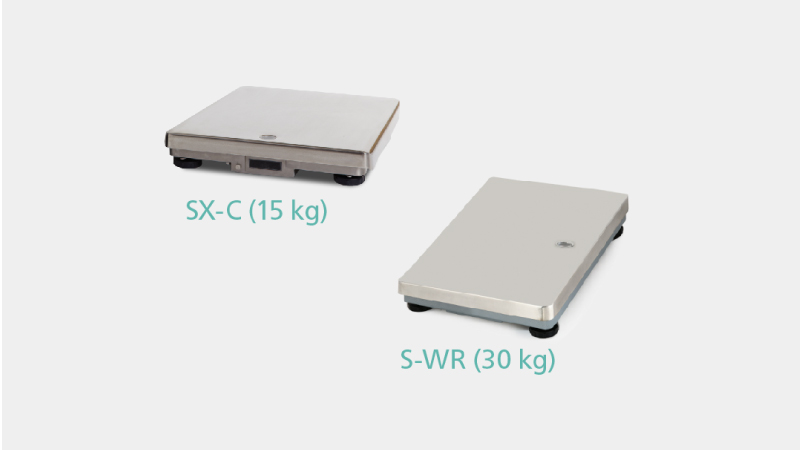

Platform | SX-C (15kg): 294 x 354 x 54 | S-WR (30kg): 295 x 355 x 55 | |||
Short Stand (Option) | 210 x 369 x 183 | ||||
Operation Display | 8.4" TFT SVGA with Touch Panel | ||||
Display Size W x D (Pixels) | 800 x 600 | ||||

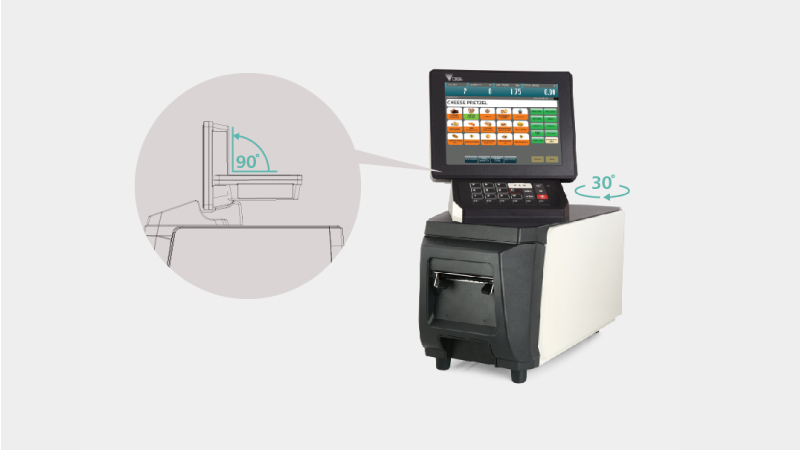

Display Rotatable Degree | + / - 30 degree left and right ; 90 degree up and down | ||||

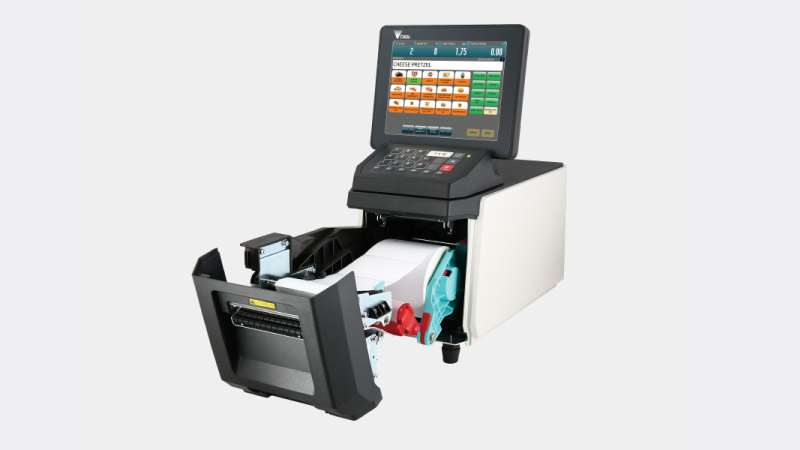

Label / Receipt | Types | Liner | Linerless with Auto-Cutter | ||
Roll Diameter | Max 125mm | Max 125mm | |||
Roll Width | Max 80mm | Max 80mm | |||
Print Width | Max 80mm | Max 80mm | |||
Printing Speed | Max 150mm / second* | Max 150mm / second* | |||
Print Resolution | 300 dpi | 300 dpi | |||
Barcode Type | Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix | ||||
Power Source | AC 100V / 220V | ||||
Power Consumption | 80W | ||||
Operating Temperature | -10℃ to +40℃ | ||||
Humidity | 15% to 85% RH Non-Condensation | ||||
Standard Interface | 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket | ||||
Net Weight | DPS-5000e | 11.2 kg | |||
Platform | SX-C: 6.65 kg | S-WR: 4.5 kg | |||
Short Stand (Option) | 3.4 kg |
