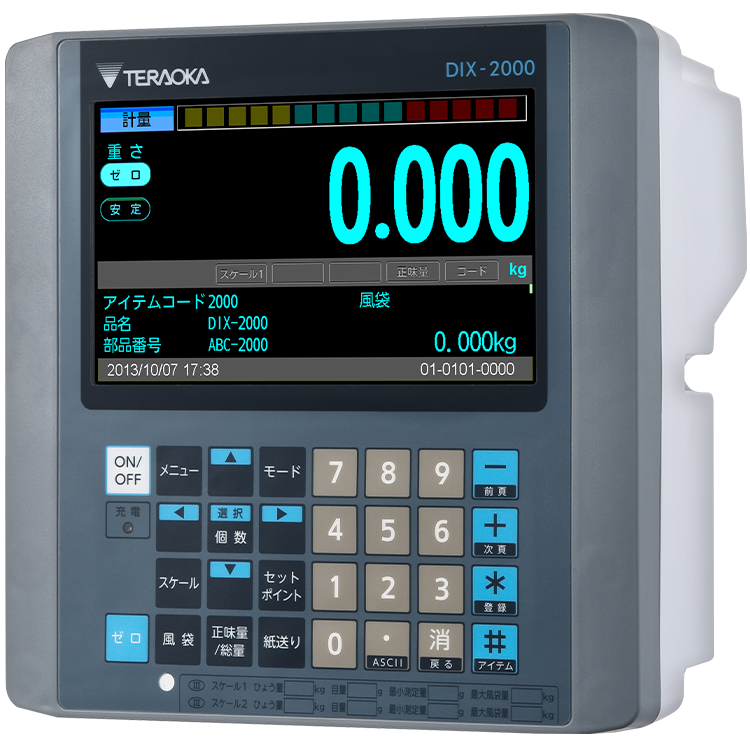

DIX-2000 Series

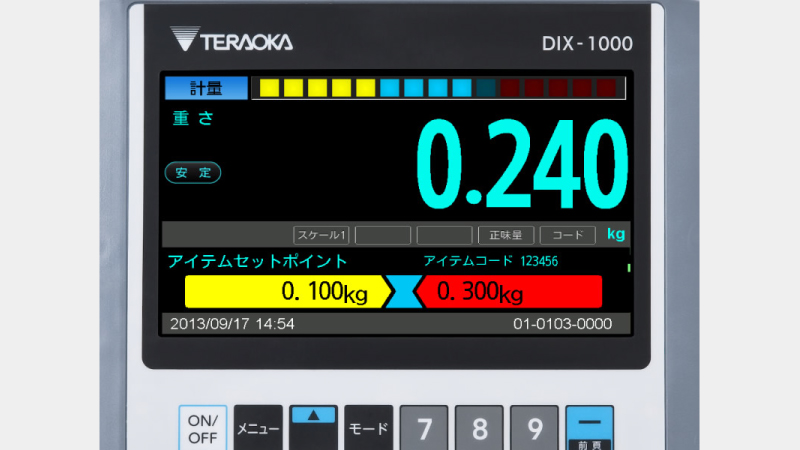

Function-rich indicator with large full-color display and high-level communications ability
Dimensions
| Model | DIX-2000 | DIX-1000 |
|---|---|---|
| Weighing | ||
| Display resolution | 1/60000 | |
| Internal resolution | 1/1000000 | |
| Loadcell excitation |
DC5±10%, Remote Sensing
Up to 2 x 350 ohm loadcells
|
|
| Loadcell sensitivity | 0.4mV/V～4.0mV/V | |
| AD conversion rate | 50 times/sec. | |
| Interface | ||
| Scale control | RS-232C, 2 scales, 5 set points output, 3 remote control input | |
| Memory | USB（for exclusive use USB memory), Ethernet | USB（for exclusive use USB memory) |
| Printing (for built-in printer type only) | ||
| Printing method | Dot impact | |
| Roll Size | Width: 44mm, Outer Diameter: 50mm, Inner Diameter: 12mm, Length: 23m | |
| General | ||
| Standard type/ built-in printer type | AC100V±10%（50/60Hｚ） | |
| Standard type/ built-in battery type |
100V/240V with AC Adapter
Power source: 36V, 1.81A
Charging time: Approx. 6 hours
|
|
| Power consumption |
Standard Type: Max. 11W
Built-in Printer Type: Max. 13W
Built-in Battery Type: Max. 36W（operating while charging)
|
|
| Service environment |
Temperature: -10 to 40 degrees C (no condensation)
Humidity: 15-85%(no condensation)
|
|
| International Protection compliance | IP65(standard type/ built-in battery type only) | |
