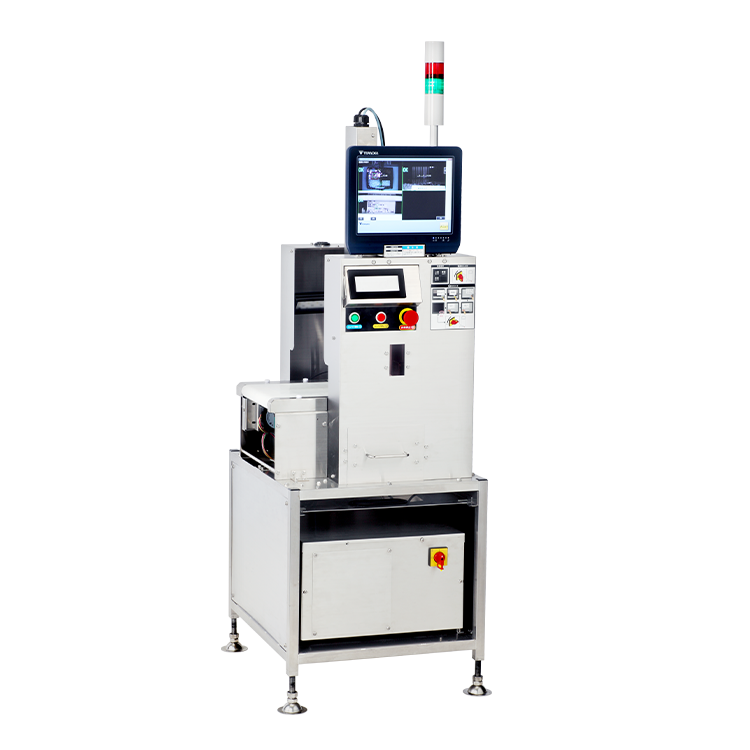

LIS-CS series
Expert automatic production line package inspection using a high-precision camera/scanner combination.
A variety of inspection/verification checks allows fully automatic detection of labeling defects to substantially save on labor in the label inspection process.
Dimensions
Common specification
Power-supply voltage | AC100V 50/60Hz |
---|---|
Maximum number inspection history saved | 4000 cases *1 |
Number of items that can be registered | 999 variety |
Maximum inspection capacity | 72 pieces/min. |
*1: One item for each item number change
General purpose model
LIS-CS USBC
|
LIS-CS UCBS
|
||
---|---|---|---|
Intended use | For tray packs, general food packs | ||
Device | Upper side: Scanner Lower side: Camera |
Upper side: Camera Lower side: Scanner |
|
Dimensions of main unit | Conveyor length | 550 mm | |
Depth | 550 mm | ||
Height | 1410 to 1560 mm | ||
Belt width | 230mm | ||
Path line | 750 mm to 850 mm | ||
Power consumption | 56 W (Max) *2 | ||
Integrated air sorting | × |
Specific use model
LIS-CS1
|
LIS-CS PLW
|
LIS-CS SND
|
||
---|---|---|---|---|
Intended use | For triangular rice ball inspection only | For Reverse pillow packaging rice ball inspection only | For sandwich inspection only | |
Device | Horizontal side: Camera Horizontal side: Scanner |
Upper side: Scanner Lower side: Camera |
Upper side: Camera Lower side: Scanner |
|
Dimensions of main unit | Conveyor length | 500 mm | 539 mm | 550 mm |
Depth | 550 mm | 665 mm | ||
Height | 1180 to 1330 mm | 1278 to 1378 mm | 1410 to 1560 mm | |
Belt width | 45 mm | 73.5 mm | 230 mm | |
Path line | 700 to 850 mm | 750 to 850 mm | ||
Power consumption | 27 W *2 | 30 W *2 | 50 W (Max) *2 | |
Integrated air sorting | ◯ |
** When considering, please check with the sales representative beforehand if the target product can be inspected with this product.
