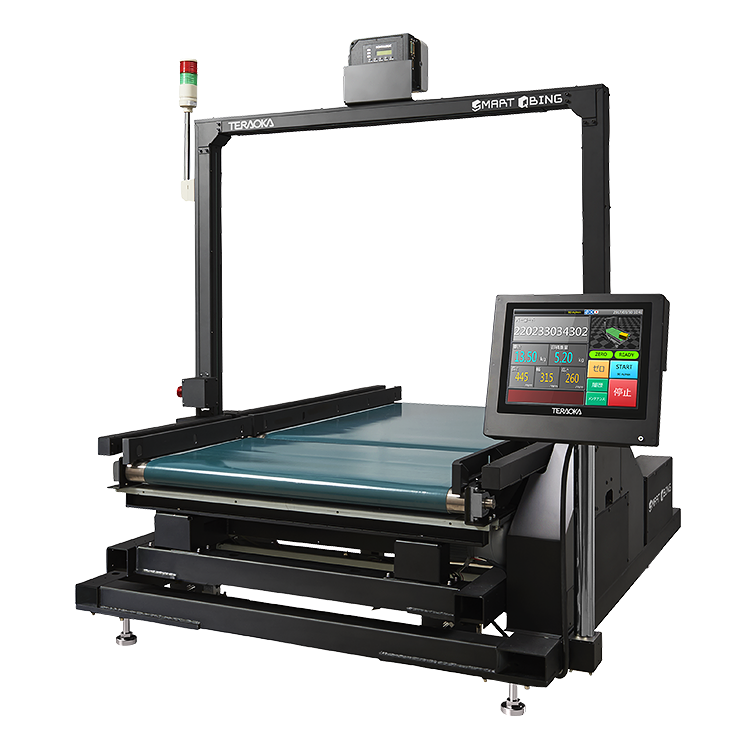

SMART QBING
Ce système de dimensionnement et de pesage automatique permet de mesurer rapidement les dimensions et le poids des colis sur un convoyeur. Mesure des articles à partir de 5 mm d'épaisseur - une première dans l’industrie!
SMART QBING specification
|
SQ-2002
SQ-2003 |
SQ-2202
SQ-2203 |
SQ-2200
|
SQ-3002
SQ-3003 |
SQ-3302
SQ-3303 |
SQ-3300
|
SQ-4302
|
|
|---|---|---|---|---|---|---|---|
|
Largeur du convoyeur
|
600mm | 900mm | 1220mm | ||||
|
Function
|
Weighing | Measurement･ Weighing |
Measurement | Weighing | Measurement･ Weighing |
Measurement | Measurement･Weighing |
|
Taille minimum du paquet
|
150(L)× 100(l)× 30(h) (*) When using thin item detection option, it becomes 5mm (h). |
||||||
|
Taille maximum du paquet
|
1530(L)× 600(l)× 600(h) | 1530(L)× 900(l)× 900(h) | 1530(L)× 1220(l)× 900(h) | ||||
|
Dimension de la balance
|
N/A | 5mm | N/A | 5mm | |||
|
Type de détection
|
N/A | Infrared transmission sensor | N/A | Infrared transmission sensor | |||
|
Capacité de pesage
|
50kg | N/A | 50kg | N/A | 50kg | ||
|
Echelon
|
50g (0～5kg)/ 100g (Over 5kg～50kg) |
N/A | 50g (0～5kg)/ 100g (Over 5kg～50kg) |
N/A | 50g (0～5kg)/ 100g (Over 5kg～50kg) | ||
|
Fourchette de pesage
|
200g～50kg | ||||||
|
Capteur de pesage
|
Loadcell | N/A | Loadcell | N/A | Loadcell | ||
|
Unités de pesage
|
2 groups (SQ-2002/SQ-2202) 3 groups (SQ-2003/SQ-2203) |
N/A | 2 groups (SQ-3002/SQ-3302) 3 groups (SQ-3003/SQ-3303) |
N/A | 2 groups | ||
|
Vitesse du convoyer
|
30～120m/min (variable) | ||||||
|
Intervalle minimum entre les paquets
|
700mm (SQ-2002/SQ-2202) 400mm (SQ-2003/SQ-2203) |
400mm | 700mm (SQ-3002/SQ-3302) 400mm (SQ-3003/SQ-3303) |
400mm | 700mm | ||
|
Interfaces
|
RS-232, RS-422, Ethernet (100BASE-TX), DIO (External control signal input / output), USB (Data storage only) | ||||||
|
Alimentation
|
AC200V, 3-phase, 50/60Hz | ||||||
|
Consommation
|
1.1kVA | ||||||
|
Température de fonctionnement
|
-10 ～ +40℃/ 15 ～ 85%RH (no condensation) | ||||||
|
Dimensions (mm)
|
1735(L)× 1050(l)× 566(h) | 1735(L)× 1030(l)× 1240(h) | 1735(L)× 1350(l)× 566(h) | 1735(L)× 1350(l)× 1560(h) | 1735(L)× 1670(l)× 1560(h) | ||
|
Poids net
|
400kg (SQ-2002) 405kg (SQ-2003) |
410kg (SQ-2202) 415kg (SQ-2203) |
390kg | 440kg (SQ-3002) 445kg (SQ-3003) |
460kg (SQ-3302) 465kg (SQ-3303) |
450kg | 500kg |
