aw5600cpr-2_WP02

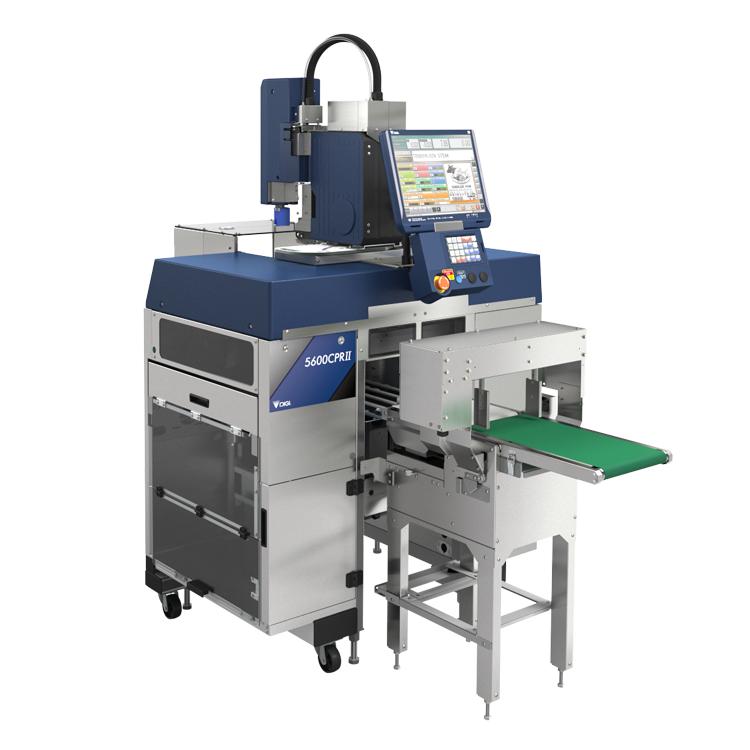

AW-5600CPRII-IWC

Integrated in-line weigh-wrap-label system

Dimensions

aw5600cpr-2_WP05_02
aw5600cpr-2_WP05_01
aw5600cpr-2_WP05_03

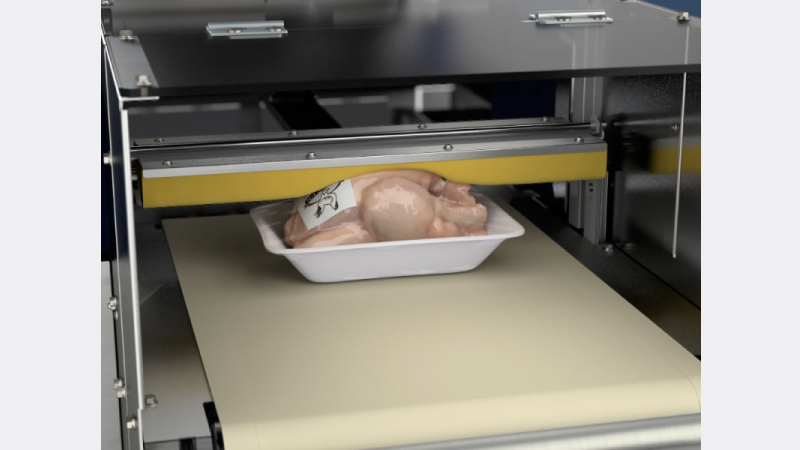

Wrapping

Wrapping speed Max. 30 packages/min.
Package size Width: 130-350 mm/5.1-13.8 inches
Height: 10-150 mm/0.4-5.9 inches
Depth: 80-230 mm/3.1-9.0 inches
Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated. The available sizes of package also depends on the film size.

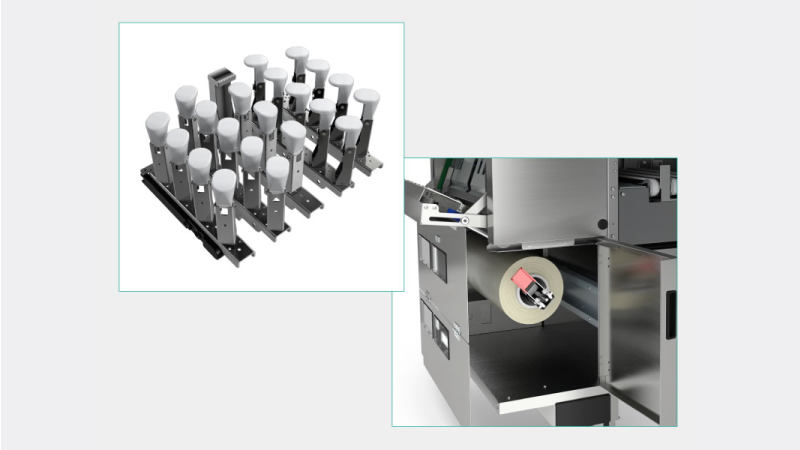

Number of film roll One
Film width 300 to 500 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max 3/6 kg Max 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Thermal printer

Label type Die-cut label Linerless label
Label width 40-80 mm/ 1.6-3.1 inches 44-59 mm/ 1.73-2.3 inches
Label length 28-105 mm/ 1.1-4.1 inches 28-105 mm/1.1-4.1 inches*
* Maximum printing length is 300 mm/ 11.8 inches
Label roll diameter Max. 210 mm (8.2 inches)
Label roll core diameter 76 mm (3.0 inches)

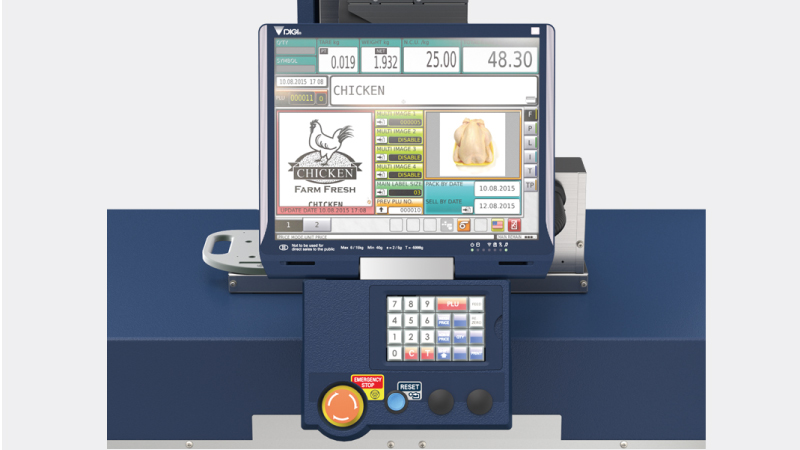

Operation console

Operation console TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW
220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW
Net weight Approx. 372 kg (AW-5600CPRII IWC Single Labeler Type)
