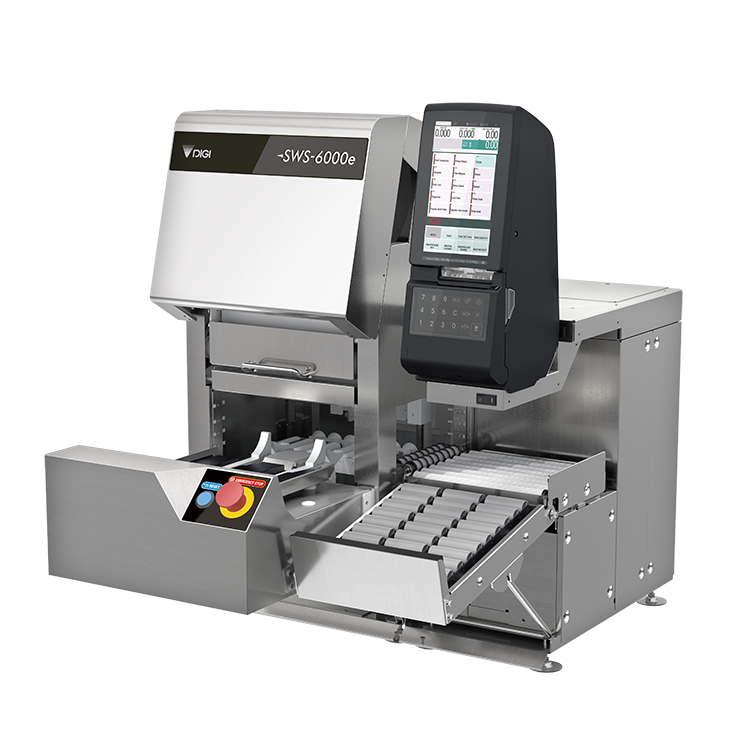

SWS-6000e

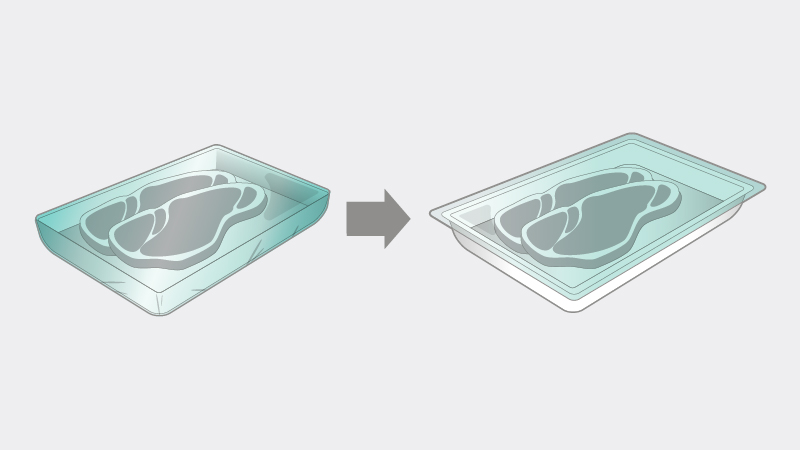

A tabletop tray sealer with integrated weigh-seal-label functionality

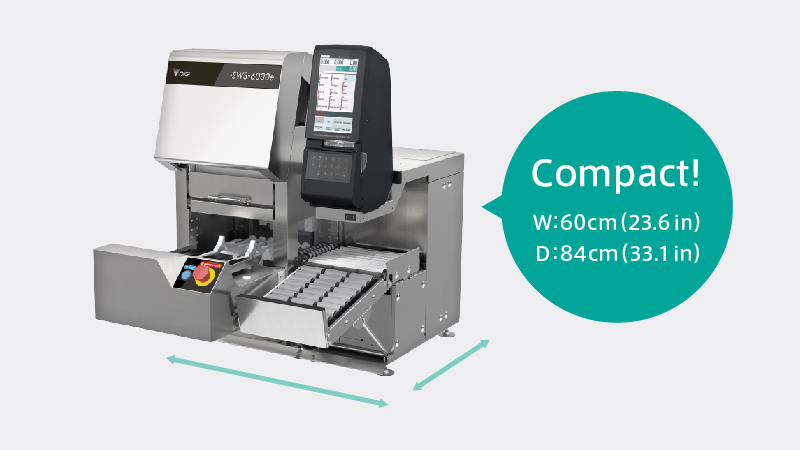

Dimensions

WP05
WP05
WP05

Packing

Package Size Width: 240mm (9.4 inches)
Depth: 140mm or 190mm (5.5 or 7.5 inches)
Height: 30-80mm (1.2-3.1 inches)
Packing Speed Max. 10 packages/min
Number of Film Rolls 1 roll
Film Width 250mm (9.8 inches)


Weighing

Interval Type Multi-interval Single interval
Capacity Max. 3/6kg Max. 30lb
Scale Interval e=1/2g e=0.01lb
Weighing Range 20g-6kg 0.20lb-30lb
Max. Packing Capacity 50g-1kg 0.11lb-2.2lb


Thermal Printer

Label Type Linerless Label
Label Print Width Max. 61mm (2.4 inches)
Label Print Length Max. 350mm (13.8 inches)
Dot Density 12 dot/mm (300dpi)


General

Display Panel 8" TFT WVGA with Capacitive Touch (480 x 800)
Power Consumption 220-240V;1φ;50/60Hz;1.0Kw
Net Weight 97.5kg
Operating Temperature 10 to 30℃ with no condensation
Operating Humidity 80% RH (Max.) with no condensation
