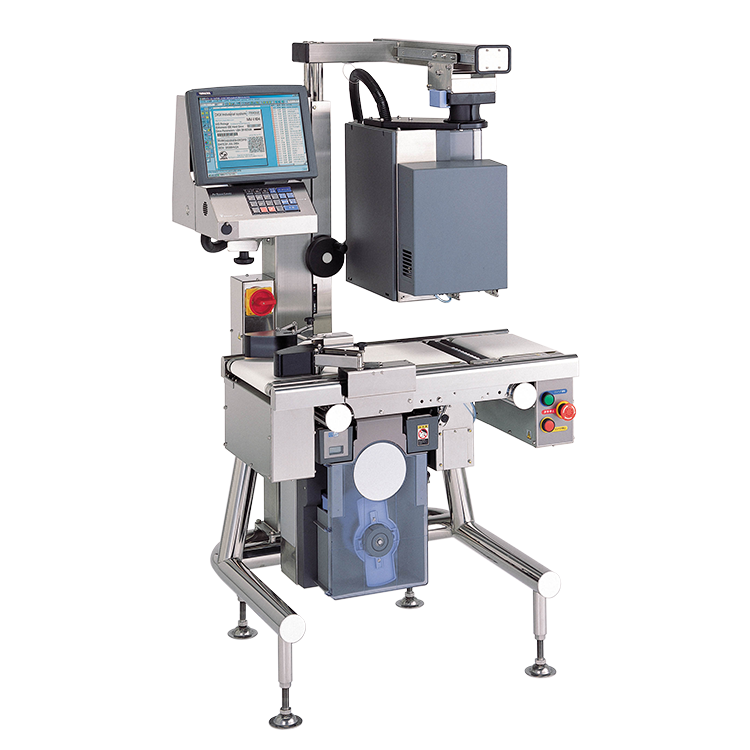

![AP-700-WS02](./product_file/file/ap700_WP02_01.png)

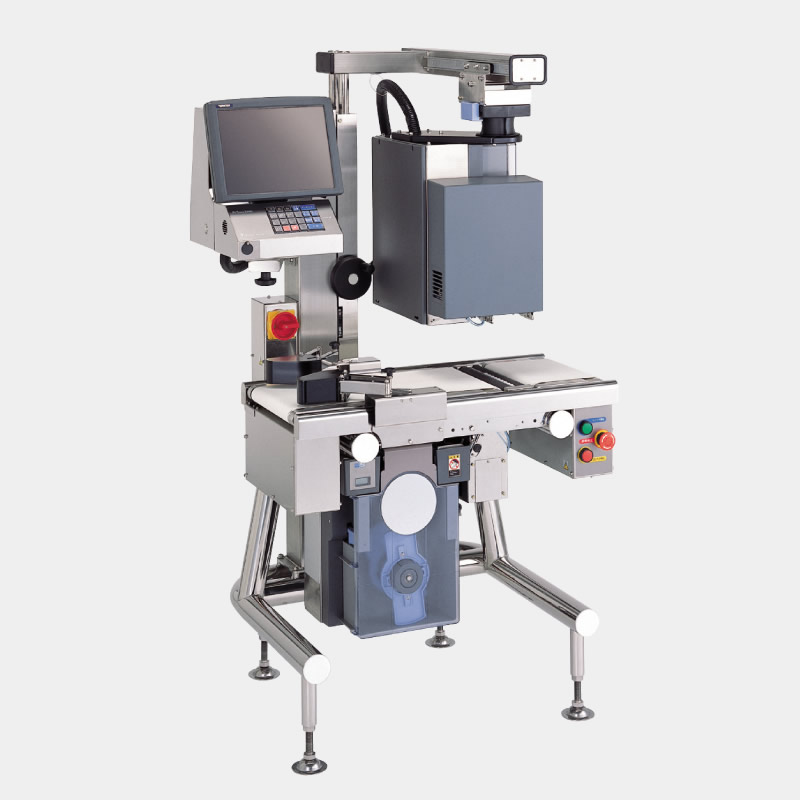

Versatile automatic thermal labeler
AP-700
Food IndustryMain Features
AP-700 is a general purpose automatic labeler with easy to use large color display. Flexibly meets various demands for new label layout and format.
![AP-700-WP04](./product_file/file/ap700_WP04_01.jpg)

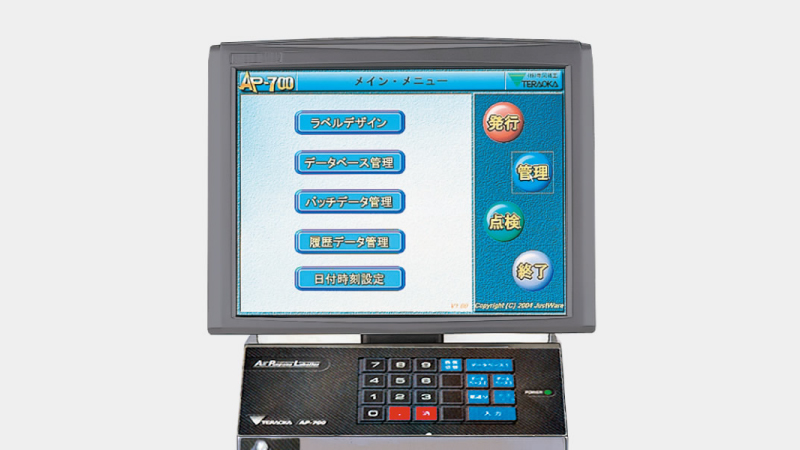

Large display for easy operation
A 12.1-inch LCD display has high visibility and makes operation very easy. Label format design can be done flexibly by following instructions on the screen.
![AP-700-WP04](./product_file/file/ap700_WP03_04.jpg)
Clear print image
A 300dpi thermal print head together with a wide variety of fonts provides excellent printing. Also prints QR codes.
![AP-700-WP04](./product_file/file/ap700_WP04_03.jpg)

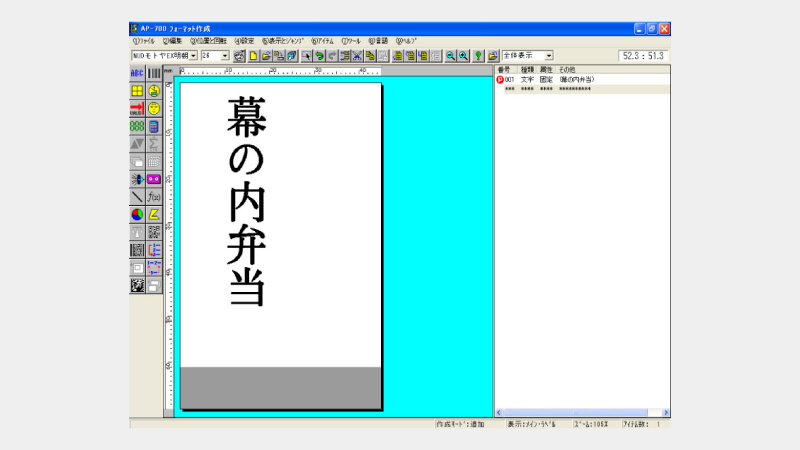

Flexible and easy label designing
Designing new label formats is very easy for anybody. Labels and product databases can be created on a computer, and then transferred to the labeler via a USB memory.
Specifications

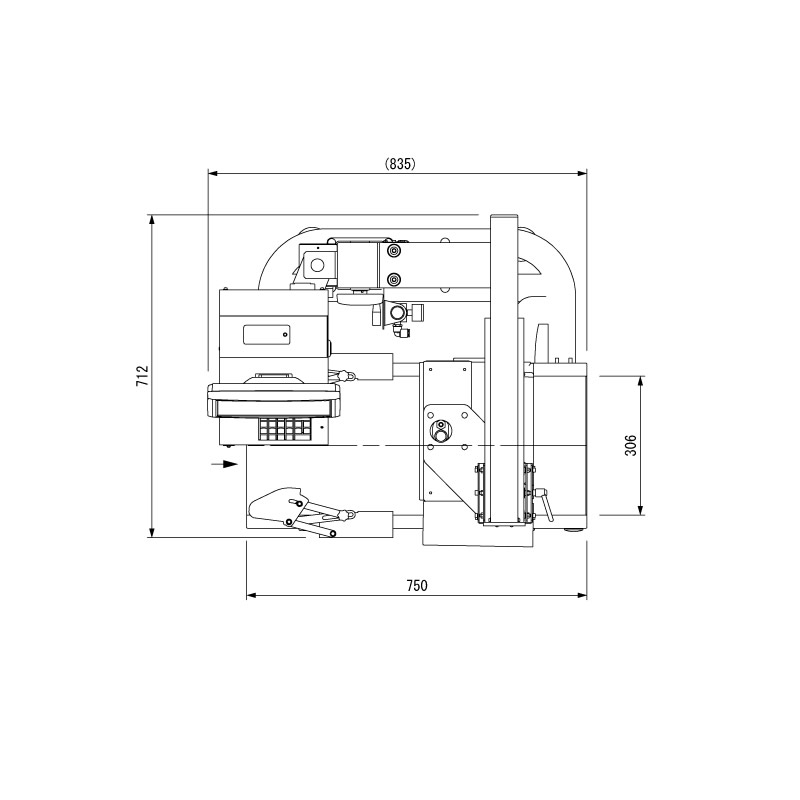

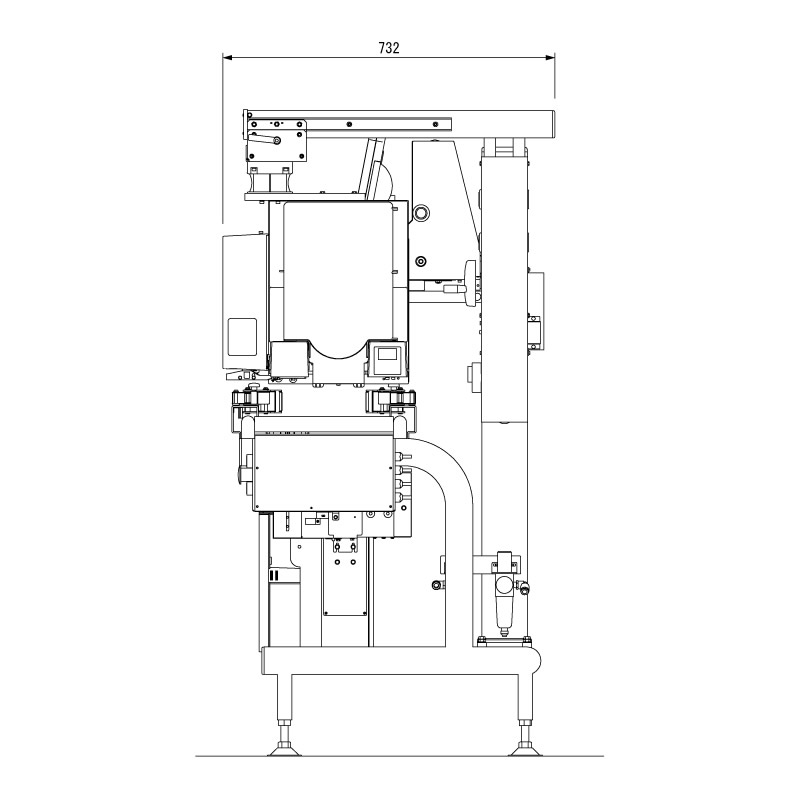

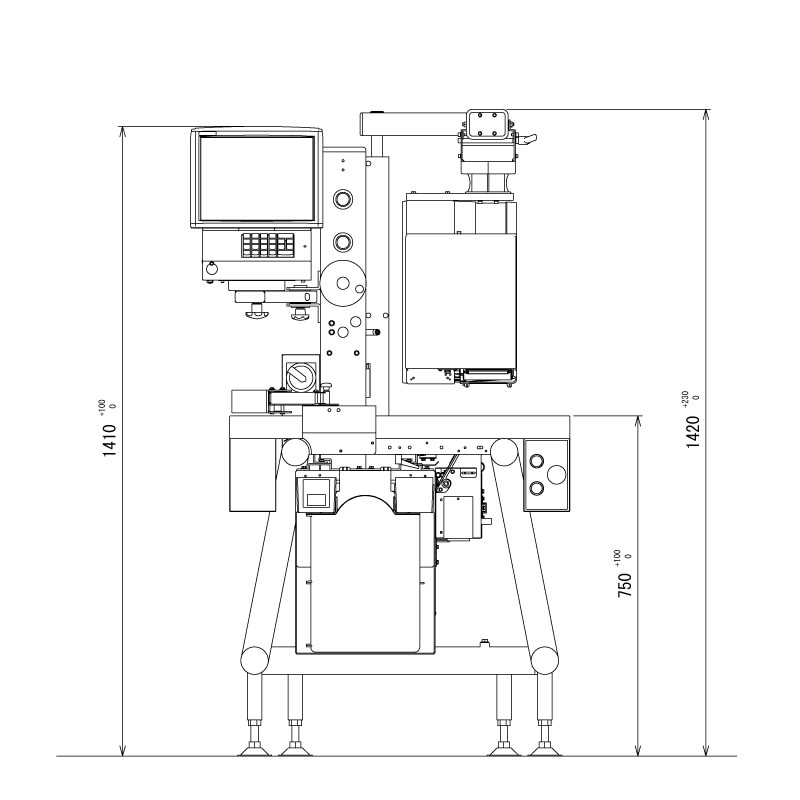

Dimensions
Printing method | Thermal printing |
---|---|
Label print speed | max. 200mm/sec. |
Package size | Width: 50 to 240 mm |
Length: 70 to 350mm | |
Height: 15 to 190mm | |
Label size (for U type) | Width: 40 to 80mm |
Length: 28 to 100mm | |
Label size (for U type/High precision applicator) | Width: 20 to 80m |
Length: 20 to 100mm | |
Label size (for B type) | Width: 40 to 80mm |
Length: 28 to 80mm | |
Label outer diameter | 200mm with 76mm core |
Power consumption | 59.2 to 86.5W/270 to 540W (dependig on configuration) |
Measurement (mm) | W: 681 x L: 750 x H: 1545 |
Conveyor height | 800±50mm |
Power supply | 100V or 220 to 240V single phase |
Conveyor speed | 0 to 50mm/min.(adjustable) |
Air source | Top application max. 1.61ℓ/label Bottom application max. 2.36ℓ/label |
Variations
Top and bottom applicator

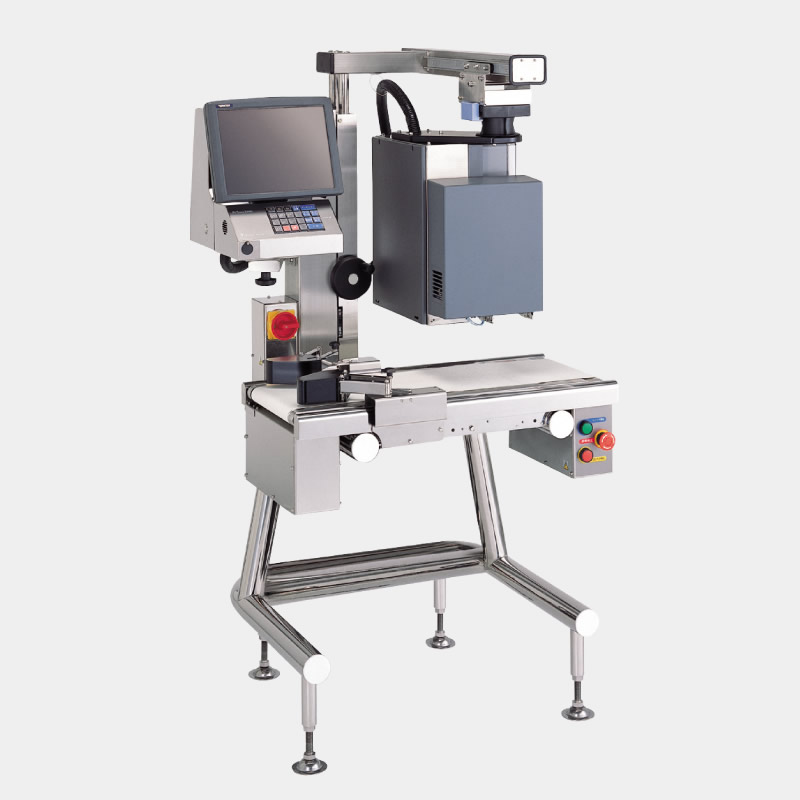

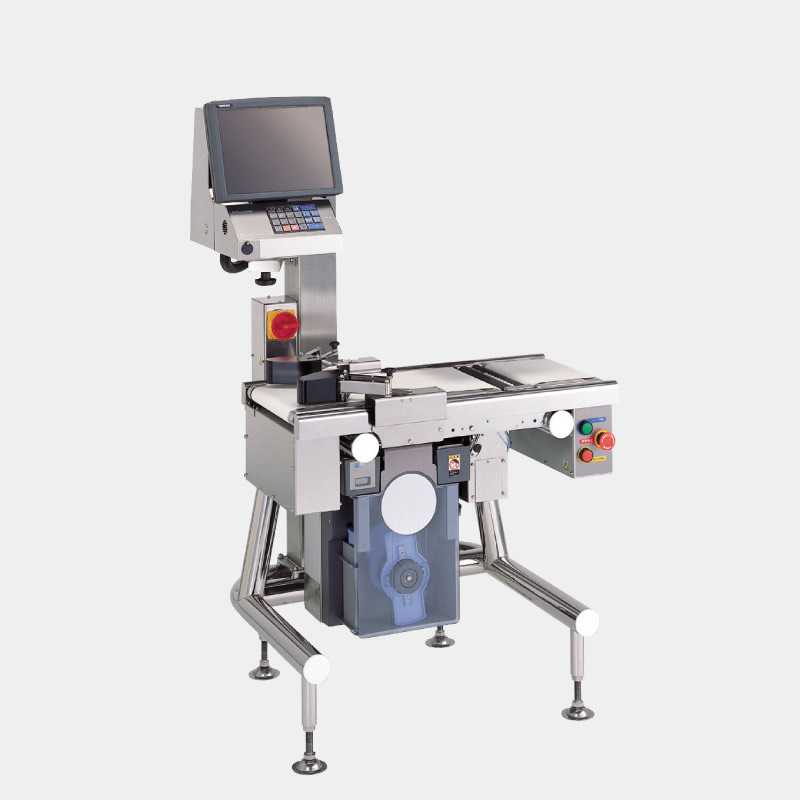

Model | AP-700UB | AP-700U | AP-700B |
---|---|---|---|
![]() |
![]() |
![]() |
|
Top applicator | ● | ● | |
Bottom applicator | ● | ● |
