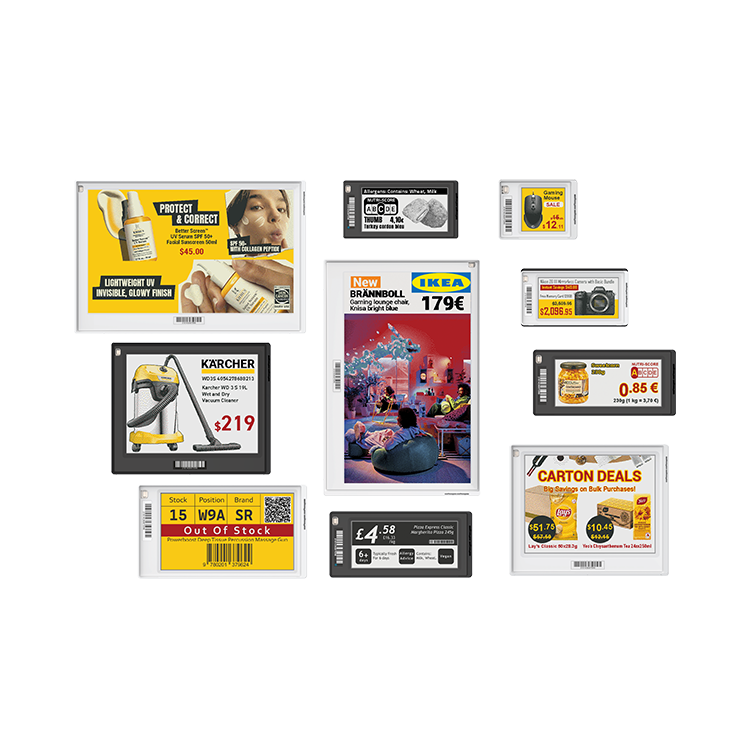

ESL- InfoTag
Reimagine Possibilities
Specification
| Model | InfoTag 1.54" | InfoTag 2.13" | InfoTag 2.9" | InfoTag 3.7" | InfoTag 4.2" | InfoTag 5.83" | InfoTag 7.5" | |
|---|---|---|---|---|---|---|---|---|
| Dimension W x H x D (mm) |
50 x 38 x 16 | 70 x 38 x 16 | 90 x 42 x 16 | 104 x 58 x 16 | 103 x 85 x 18 | 138 x 108 x 18 | 187 x 123 x 18 | |
| Screen Size | 1.54" | 2.13" | 2.9" | 3.7" | 4.2" | 5.83" | 7.5" | |
| Display Size | Pixels | 152 x 152 | 250 x 122 | 296 x 128 | 416 x 240 | 400 x 300 | 648 x 480 | 880 x 528 |
| mm | 27 x 27 | 49 x 24 | 67 x 29 | 82 x 47 | 85 x 64 | 119 x 88 | 163 x 98 | |
| Resolution (DPI) | 140 | 131 | 112 | 130 | 120 | 138 | 136 | |
| Display Colours | Black, White, Red and Yellow | |||||||
| Operating Temperature | 5°C to 40°C | |||||||
| Display Technology | ePaper | |||||||
| Compliance | CE, RoHS | |||||||
| Operating Humidity | 65% Max. RH Non-Condensing | |||||||
| Water Protection (IP Rating) |
IPX5 | |||||||
| NFC | Available | |||||||

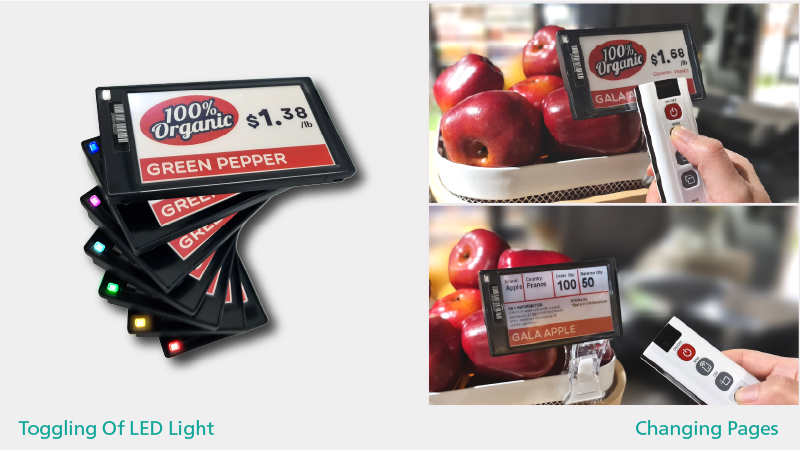

| LED Colours | Red, Yellow, Green, Cyan, Magenta, Blue and White | |||||||
| Model | InfoTag 1.54" | InfoTag 2.13" | InfoTag 2.9" | InfoTag 3.7" | InfoTag 4.2" | InfoTag 5.83" | InfoTag 7.5" | |
|---|---|---|---|---|---|---|---|---|
| Dimension W x H x D (mm) |
50 x 38 x 16 | 70 x 38 x 16 | 90 x 42 x 16 | 104 x 58 x 16 | 103 x 85 x 18 | 138 x 108 x 18 | 187 x 123 x 18 | |
| Screen Size | 1.54" | 2.13" | 2.9" | 3.7" | 4.2" | 5.83" | 7.5" | |
| Display Size | Pixels | 152 x 152 | 250 x 122 | 296 x 128 | 416 x 240 | 400 x 300 | 648 x 480 | 800 x 480 |
| mm | 27 x 27 | 49 x 24 | 67 x 29 | 82 x 47 | 85 x 64 | 119 x 88 | 163 x 98 | |
| Resolution (DPI) | 140 | 131 | 112 | 130 | 120 | 138 | 124 | |
| Display Colours | Black, White and Red | |||||||
| Operating Temperature | 5°C to 40°C | |||||||
| Display Technology | ePaper | |||||||
| Compliance | CE, RoHS | |||||||
| Operating Humidity | 65% Max. RH Non-Condensing | |||||||
| Water Protection (IP Rating) |
IPX5 | |||||||
| NFC | Available | |||||||
| LED Colours | Red, Yellow, Green, Cyan, Magenta, Blue and White | |||||||
| Model | InfoTag 2.13" LT | InfoTag 2.9" LT | |
|---|---|---|---|
| Dimension W x H x D (mm) |
70 x 38 x 16 | 90 x 42 x 16 | |
| Screen Size | 2.13" | 2.9" | |
| Display Size | Pixels | 250 x 122 | 296 x 128 |
| mm | 49 x 24 | 67 x 29 | |
| Resolution (DPI) | 131 | 112 | |
| Display Colours | Black and White | ||
| Operating Temperature | Normal | ― | |
| Low | -25°C to 5°C | ||
| Display Technology | ePaper | ||
| Compliance | CE, RoHS | ||
| Operating Humidity | 85% Max. RH Non-Condensing | ||
| Water Protection (IP Rating) |
IPX5 | ||
| NFC | Available | ||
| LED Colours | Red, Yellow, Green, Cyan, Magenta, Blue and White | ||
