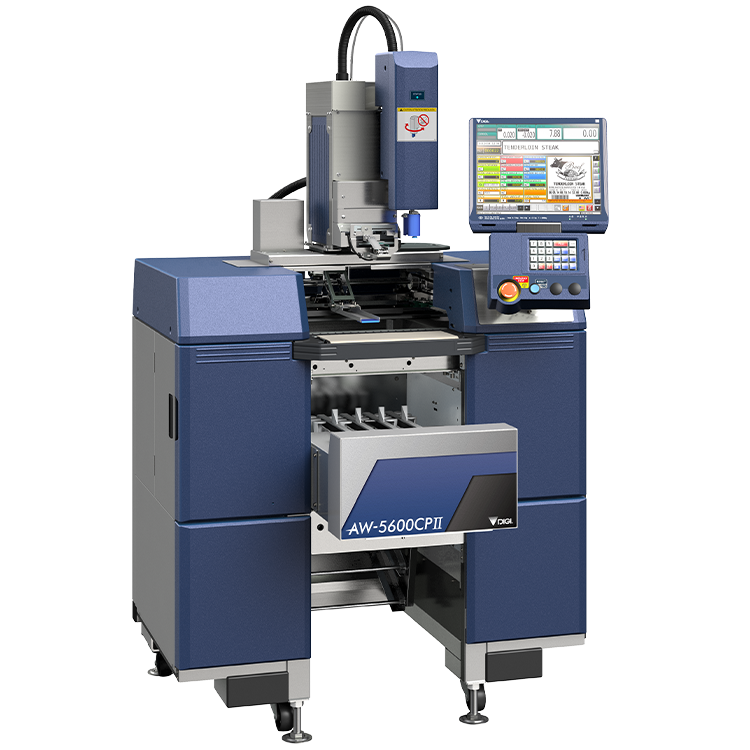

AW-5600CPII

Compact integrated weigh-wrap-label system

Dimensiones

aw5600cp-2_WP05_01
aw5600cp-2_WP05_02
aw5600cp-2_WP05_03


Wrapping

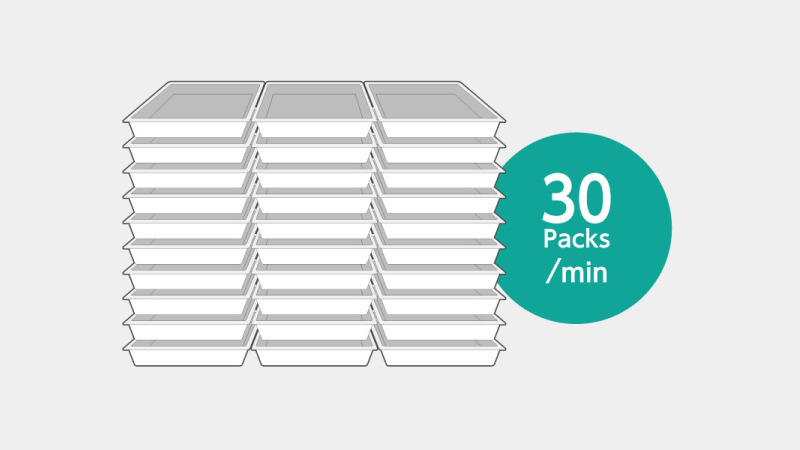

Wrapping speed Max. 30 packages/min.
Package size Width: 130 to 350 mm/5.1-13.8 inches
Height :  10 to 130 mm/0.4-5.1 inches
Depth :  80 to 230 mm/3.1-9.0 inches

* The combination of maximum size of each dimension cannot be used.
The size of the package that can be wrapped also depends on the film used.
Film width 300 to 500 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max 3/6 kg Max 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g - 6 kg 40 g - 15 kg 0.20 - 30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb

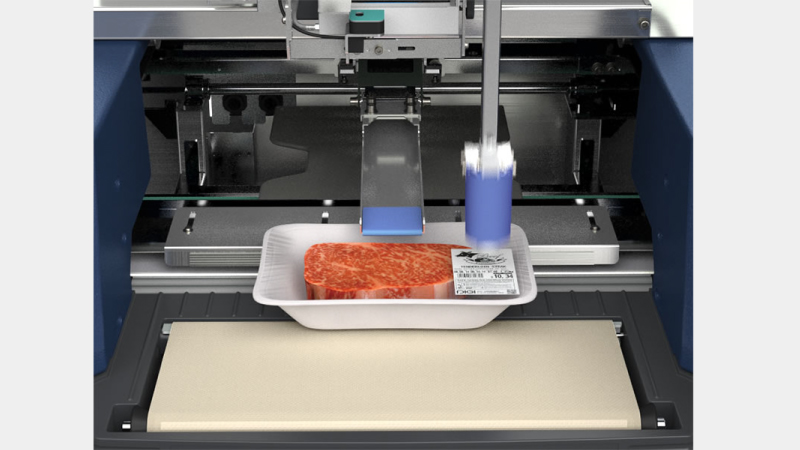

Labeling

Labeling application Automatic application Manual application
Die-cut Label Linerless Label Die-cut Label Linerless Label
Label width 40 - 80 mm/
1.6-3.1 inches
44 - 59 mm/
1.73-2.3 inches
25 - 80 mm/
0.98-3.1 inches
44 - 59 mm/
1.73-2.3 inches
Label length 28 - 105 mm/
1.1-4.1 inches
28 - 105 mm/
1.1-4.1 inches
20 - 150 mm/
0.79-5.9 inches
20 - 500 mm/
0.79-19.7 inches*
* Maximum printing length is 300 mm/11.8 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.5 kW
220-240 V; 1 φ; 50/60 Hz; 1.8 kVA,1.5 kW
Net weight Approx. 360 kg
