w5600cpr-2_WP02_01

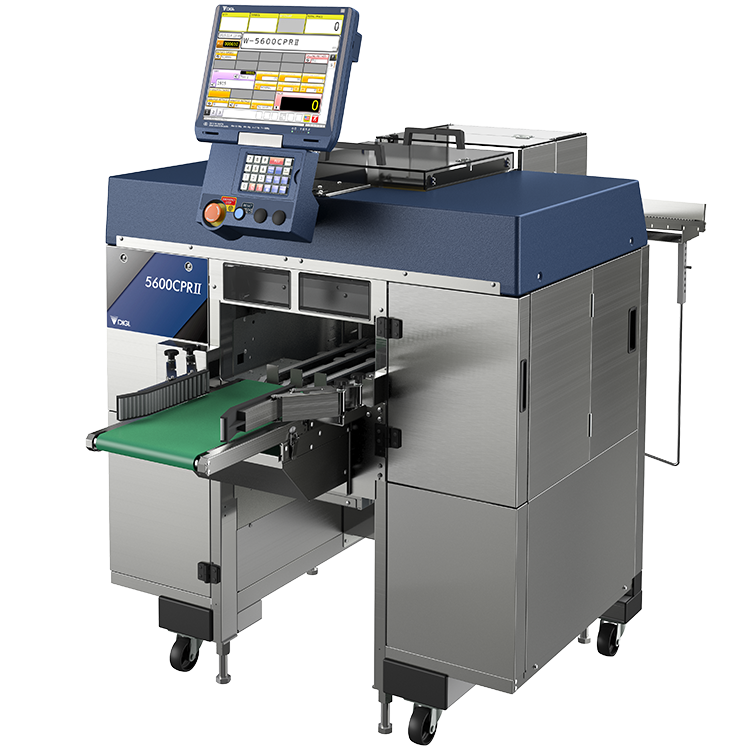

W-5600CPRII

The latest in-line automatic wrapping solution

Dimensiones

w5600cpr-2_WP05_01
w5600cpr-2_WP05_03
w5600cpr-2_WP05_02

Wrapping

Wrapping Speed Max. 30 packages/min.
Package Size Width: 130-350 mm/ 5.1-13.8 inches
Height: 10-150 mm/ 0.4-5.9 inches
Depth: 80-230 mm/ 3.1-9.0 inches
Packages with the combined maximum measurements of the 3 dimensions cannot be accommodated.
The available sizes of package also depends on the film size.
Film width One
Film Size 300  to 500 mm

Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Mechanical keys and touch screen 18 GB

General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.0 kW
220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.0 kW
Net Weight Approx. 340 kg
