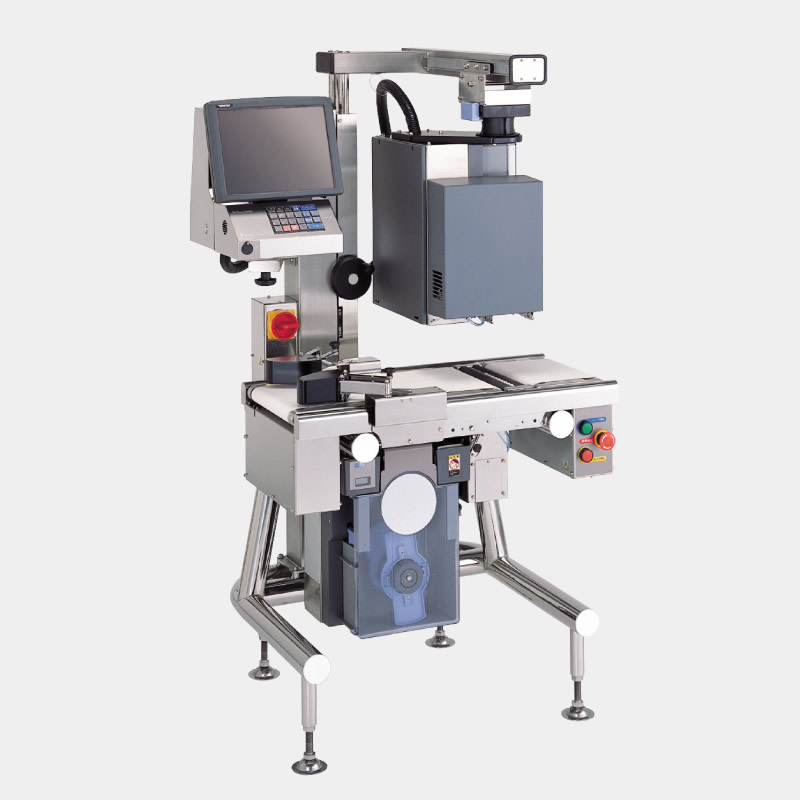

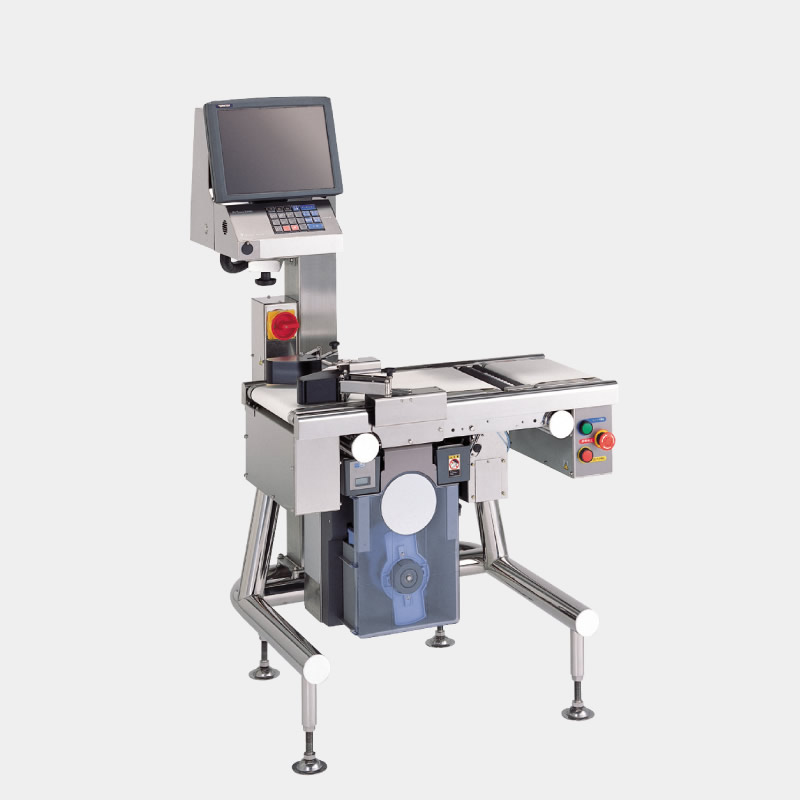

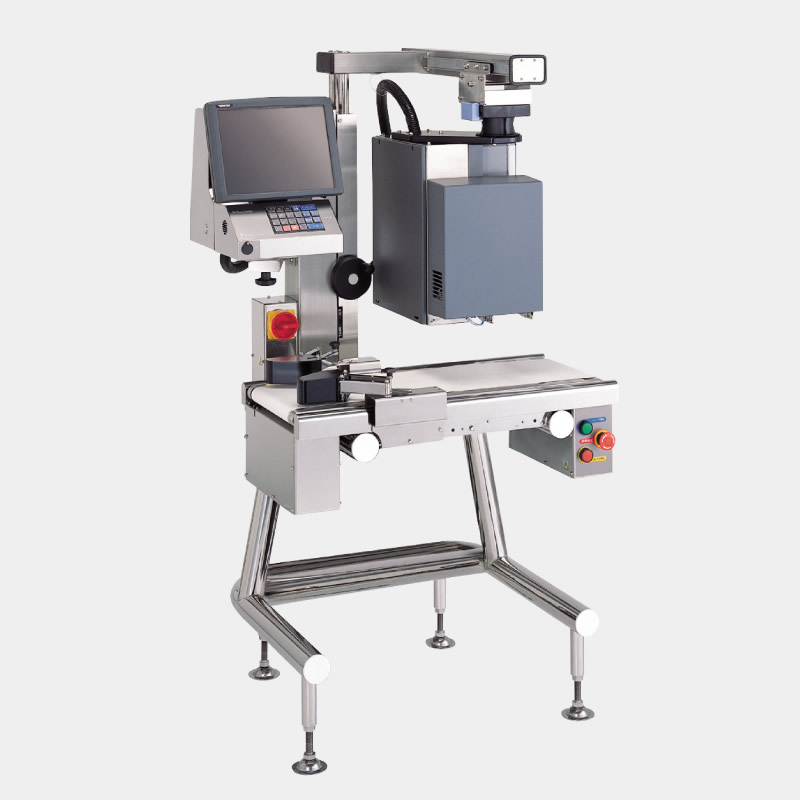

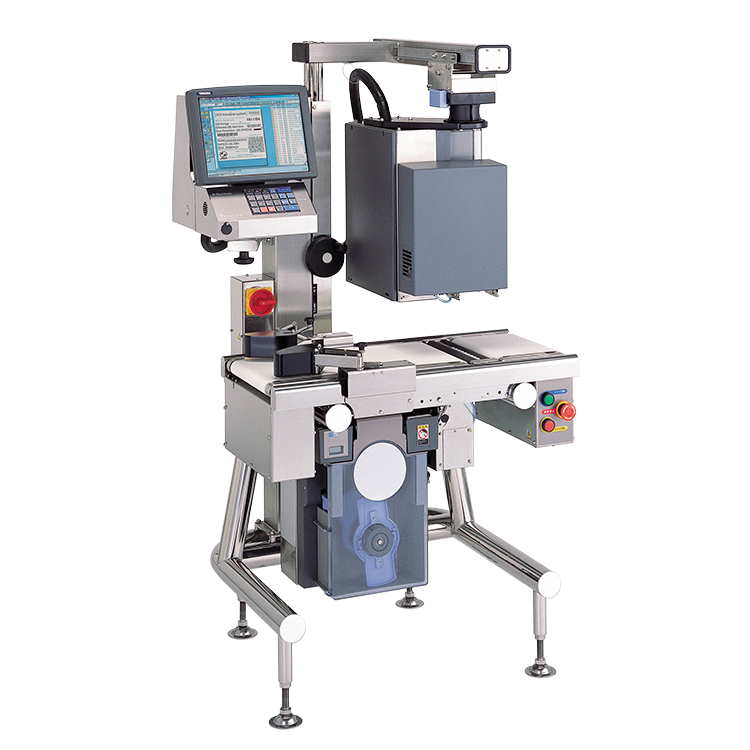

AP-700
Versatile automatic thermal labeler
Dimensions
Printing method | Thermal printing |
---|---|
Label print speed | max. 200mm/sec. |
Package size | Width: 50 to 240 mm |
Length: 70 to 350mm | |
Height: 15 to 190mm | |
Label size (for U type) | Width: 40 to 80mm |
Length: 28 to 100mm | |
Label size (for U type/High precision applicator) | Width: 20 to 80m |
Length: 20 to 100mm | |
Label size (for B type) | Width: 40 to 80mm |
Length: 28 to 80mm | |
Label outer diameter | 200mm with 76mm core |
Power consumption | 59.2 to 86.5W/270 to 540W (dependig on configuration) |
Measurement (mm) | W: 681 x L: 750 x H: 1545 |
Conveyor height | 800±50mm |
Power supply | 100V or 220 to 240V single phase |
Conveyor speed | 0 to 50mm/min.(adjustable) |
Air source | Top application max. 1.61ℓ/label Bottom application max. 2.36ℓ/label |
