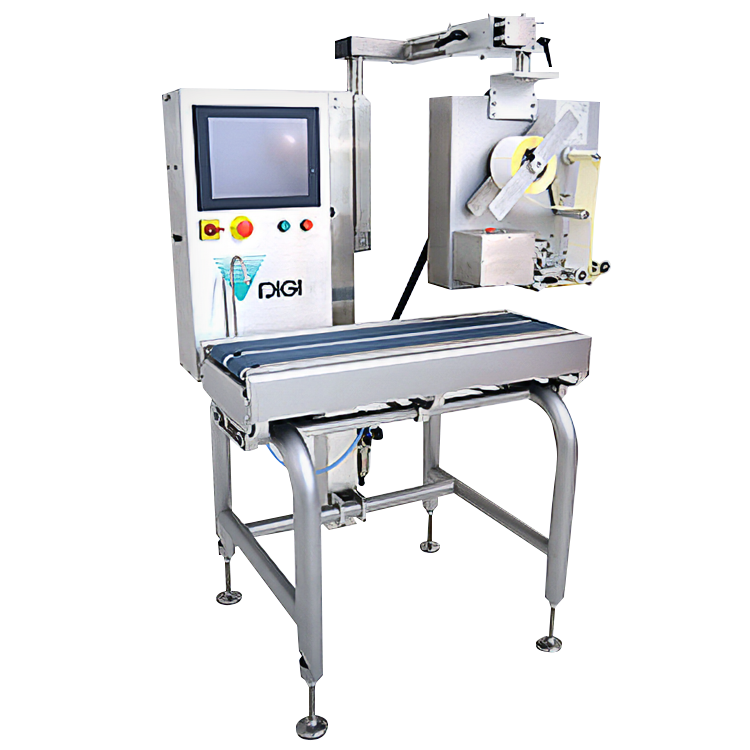

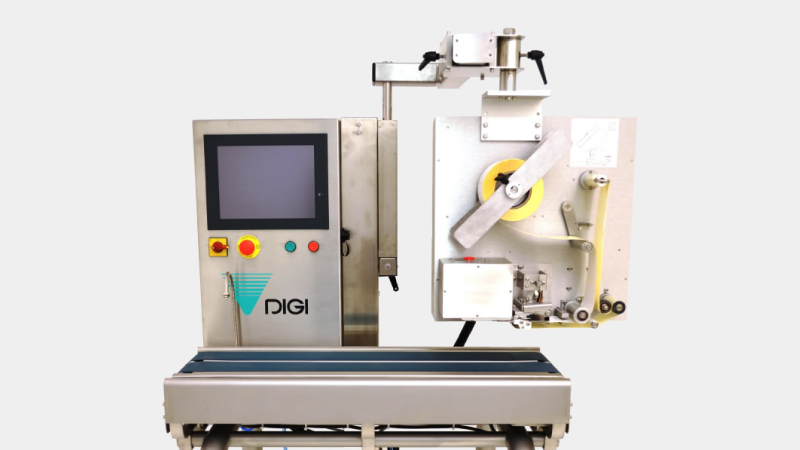

HC-700E
High speed print and apply system
Dimensions

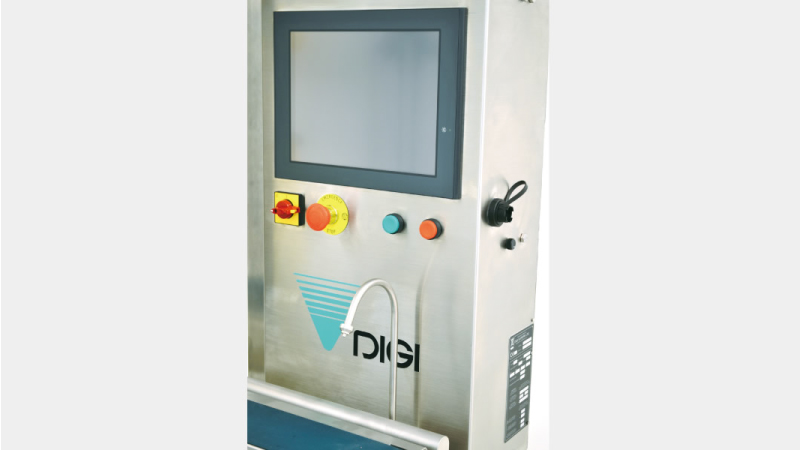

Display

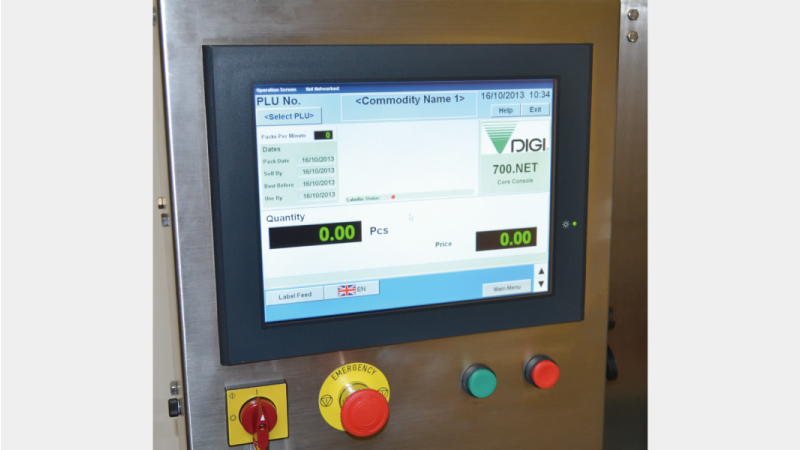

Screen | 12.1 colour high brightness TFT LCD |
---|---|
Touch panel | Sealed resistive touch screen |
Operation and general specification
Standard conveyor length | 900mm |
---|---|
Conveyor speed | Independent control via potentiometer 0 to 50m/min |
Pack size
Pack size capable | Width: 40 to 250mm, Height: 180mm maximum |
---|

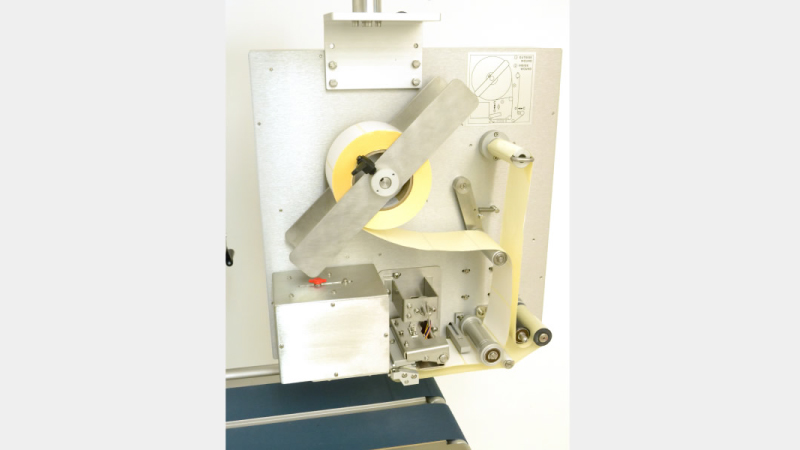

Labeler-LC
Label size | Width: 36 to 90mm, Height: 40 to 105mm |
---|---|
Label roll | max 300mm diameter, 36mm & 76mm core, inside/outside wound |
Label application system | air box |
Print speed | 50 to 200mm/sec |
Print head | 80mm at 300dpi |
