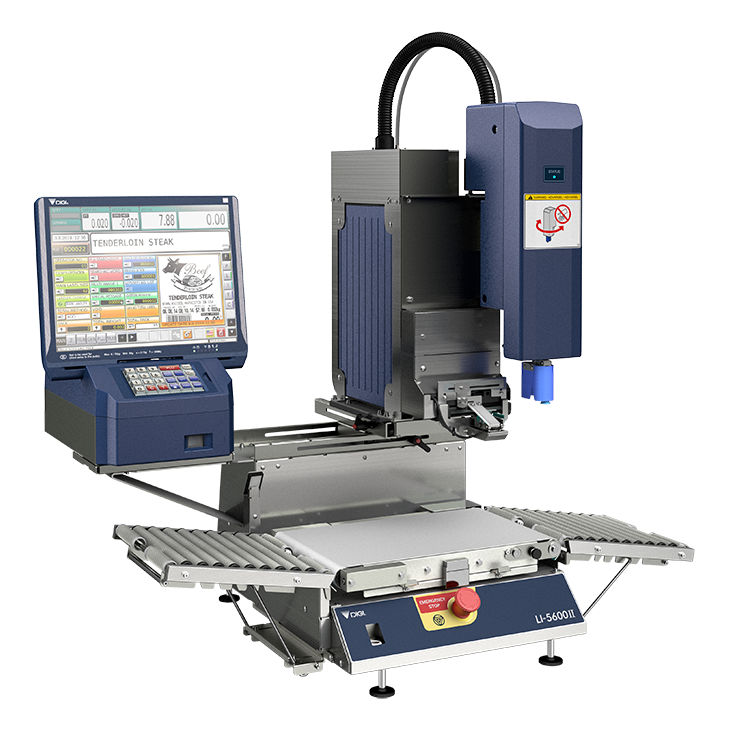

LI-5600II
A convenient and complete solution for a wide range of in-store applications
Dimensions
Conveyor
| Model | Type A | Type B |
|---|---|---|
| Speed | Max. 26 packages/min. | Max. 35 packages/min. |
| Package Size | Width: 50-390 mm/1.9-15.4 inches Height: 1-150 mm/0.04-5.9 inches Depth: 50-230 mm/1.9-9.1 inches |
|
| Direction | Left → Right or Right → Left | |
Weighing
* Unit varies by country| Interval type | Multi-interval | Single-interval | |
|---|---|---|---|
| Capacity | Max 3/6 kg | Max 6/15 kg | Max 30 lb |
| Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
| Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb |
| Conveyor capacity | Max 6 kg | Max 15 kg | 30 lb |
Thermal printer
* Maximum printing length is 300 mm/11.8 inches| Model | Type A and B | |||
|---|---|---|---|---|
| Labeling application | Automatic application | Manual application | ||
| Label type | Die-cut Label | Linerless Label | Die-cut Label | Linerless Label |
| Label size | Width: 40-80 mm/ 1.57-3.15 inches Length: 28-105 mm/ 1.10-4.13 inches |
Width: 44-78 mm/ 1.73-3.07 inches Length: 28-105 mm/ 1.10-4.13 inches |
Width: 40-80 mm/ 1.57-3.15 inches Length: 20-150 mm/ 0.79-5.91 inches |
Width: 44-78 mm/ 1.73-3.07 inches Length: 20-500 mm/ 0.79-19.69 inches* * Maximum printing length is 300 mm/11.8 inches |
| Labeling angle | 0 or 90 or 180 or 270 degree | |||
| Font | True type font | |||
Operation console

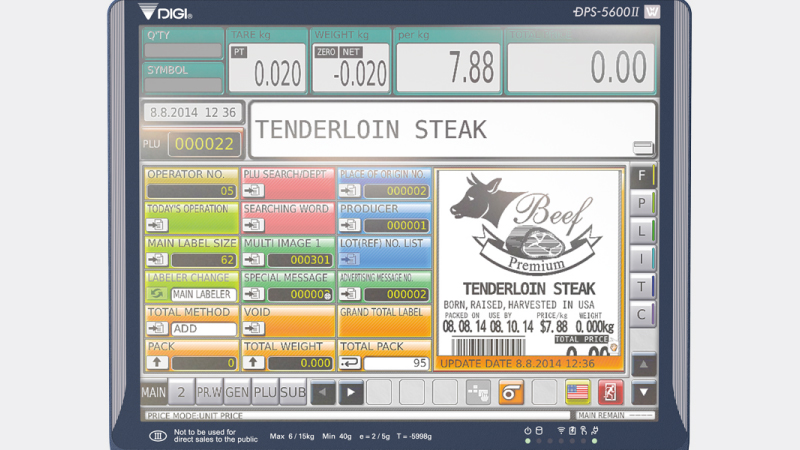

| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Memory for programmable files | 32 GB |
General
| Model | Type A | Type B |
|---|---|---|
| Power source and power consumption | 230 V;1 φ;50/60 Hz;0.7 A;160 W | Scale Conv: 230 V;1 φ;50/60 Hz;0.8 A;160 W Labelling Conv: 230 V;1 φ;50/60 Hz;0.9A;165 W |
| Net weight | Approx. 59 kg | Approx. 112 kg (TWIN + POP labeler type) |
