Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
Main Features

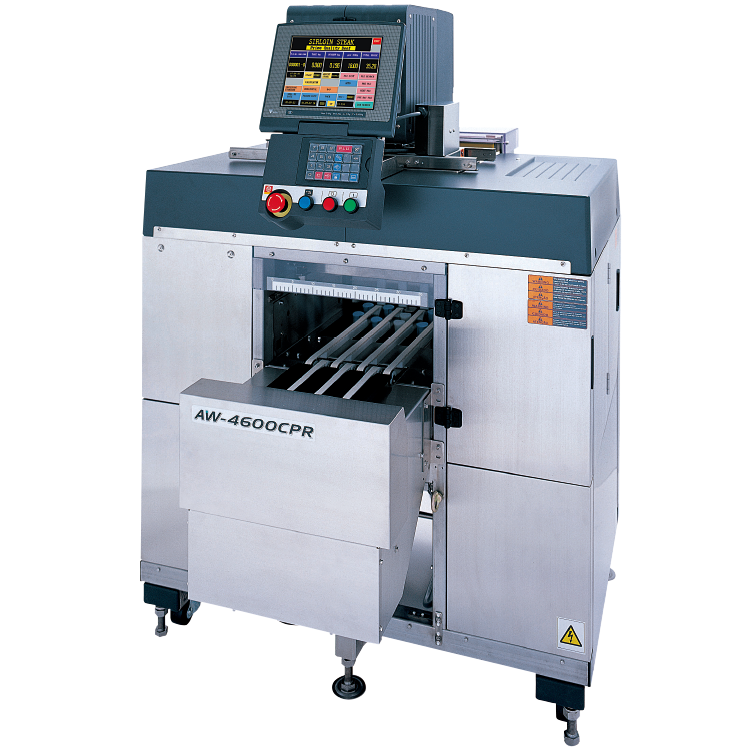

AW-4600CPR is a fully automatic, integrated weigh/wrap/label system designed for in-line operation. It is capable of wrapping large packages in spite of its compact size.

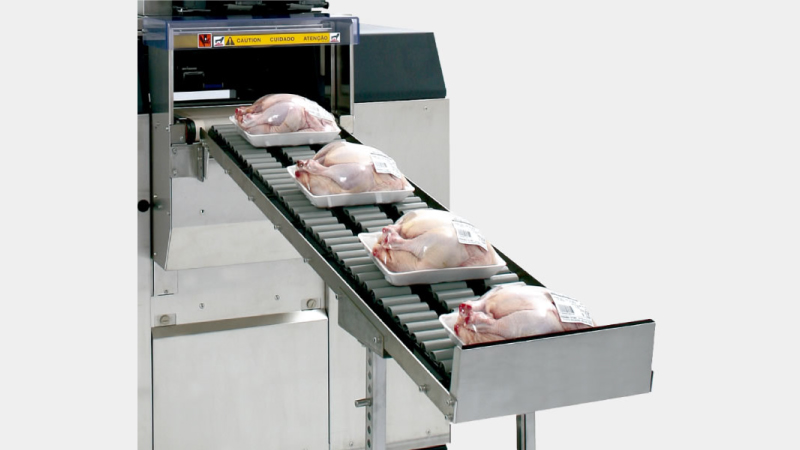

High productivity
Increases productivity with high speed processing of up to 30 packages a minute.
Streamlines in-line operation
With the optional automatic infeed conveyor, you can fully automate your production line.

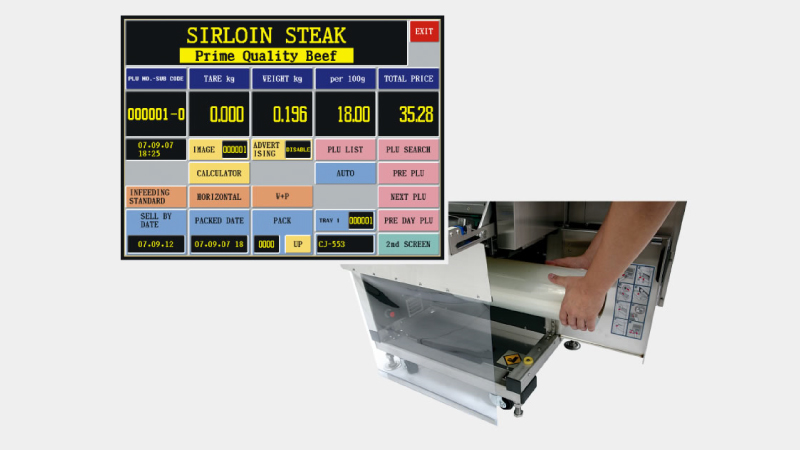

Easy operation
Operation through the large, clear color touch screen is easy for anybody. Simple construction also makes it very easy to change the film roll, so no time is wasted during operation.
Specifications

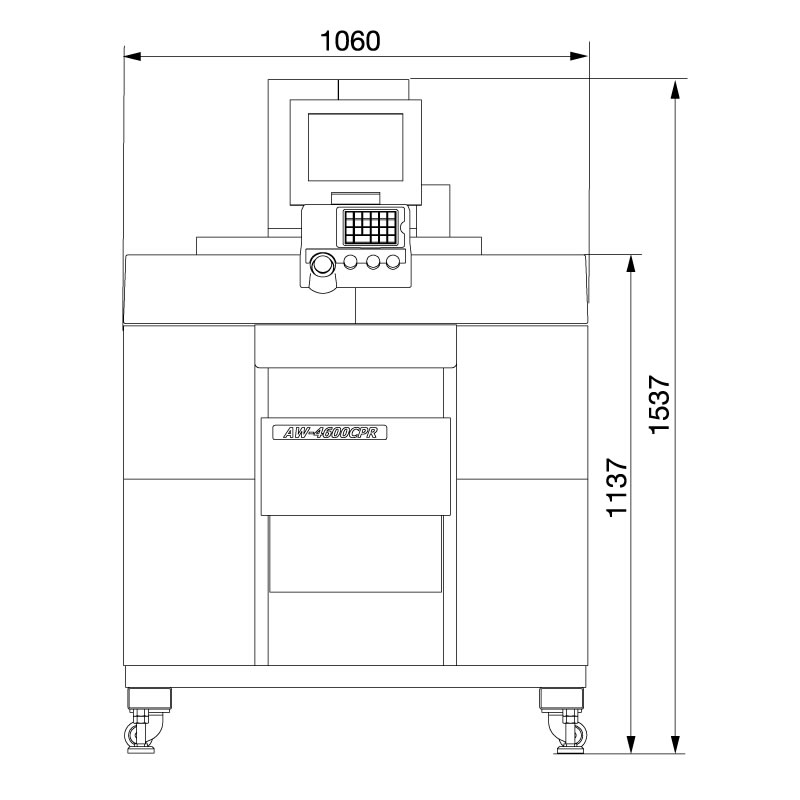

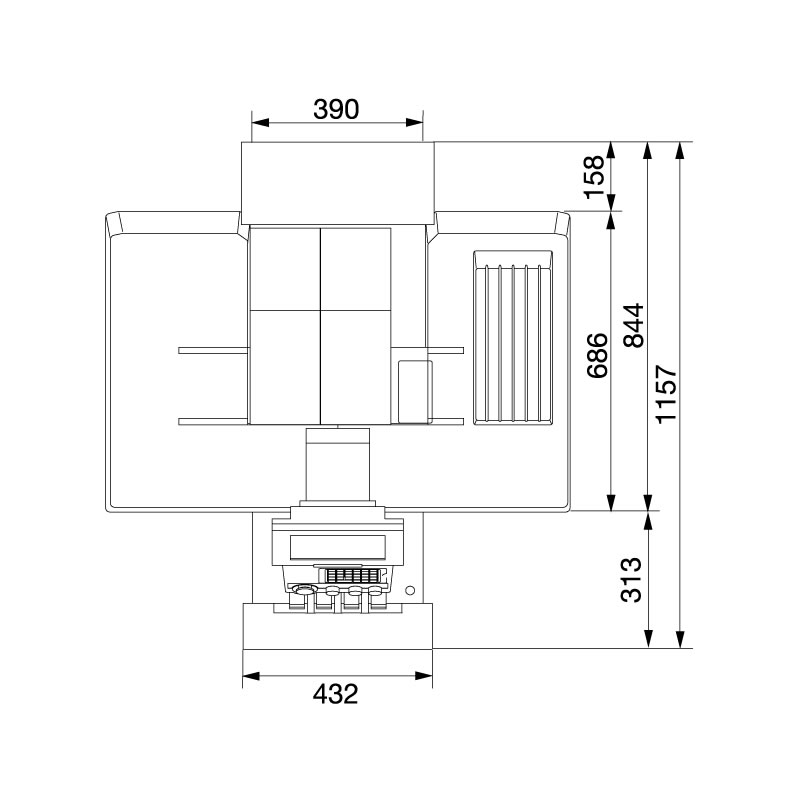

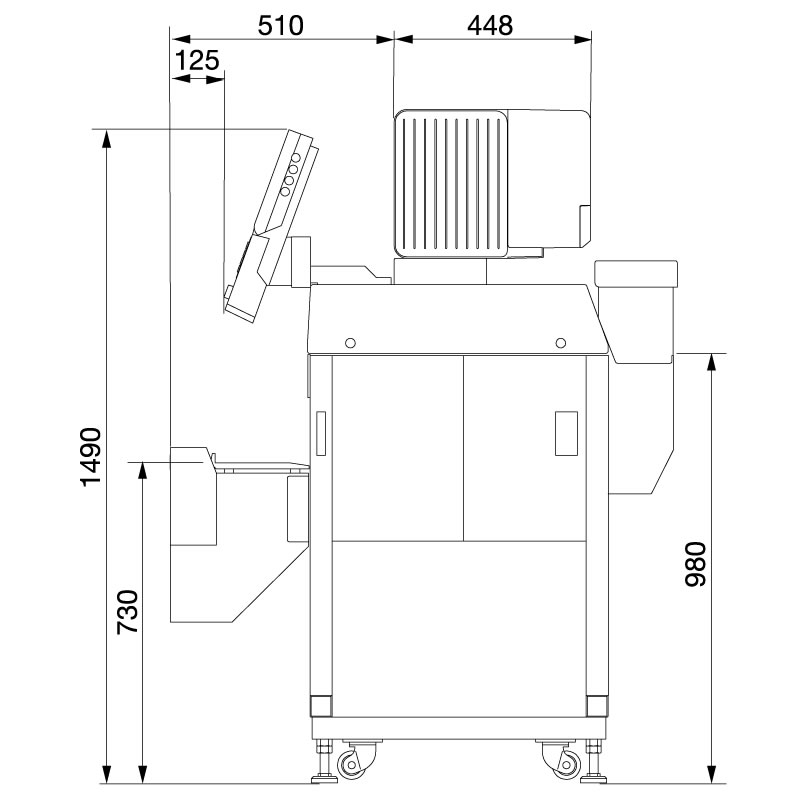

Dimensions
Wrapping
| Wrapping Speed | Max. 30 packages/min. |
|---|---|
| Package Size | Width: 130 to 380mm / Height : 10 to 150mm / Depth : 80 to 260mm The maximum combination of the above dimension is not available and the available package size depends on the film width. |
| Film Roll Capacity | One |
| Film Size | Accepts 300 to 500mm rolls |
Weighing
| Multi interval | Single inerval | |||
| Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
| Scale Inerval | e=2/5g | e=1/2g | e=0.01 lb | |
Labeling
| Label Type | Thermal paper | |
|---|---|---|
| Labeling Application | Automatic | |
| Label Size | Width: 40 to 80mm | |
| Net Weight | 325kg Single labeler type |
|
|---|---|---|
Variations

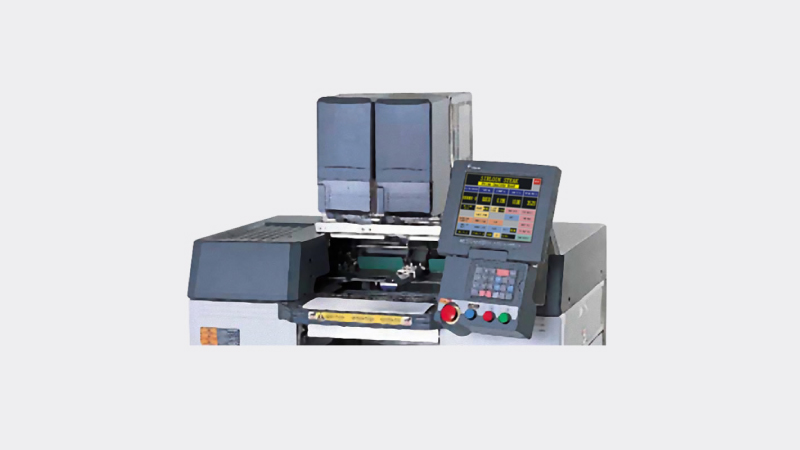

AW-4600CPR Twin
Twin labeler type
Twin labeler alters labels to be applied. Only one label is applied to each package. Good when altering labels by item or by destination.

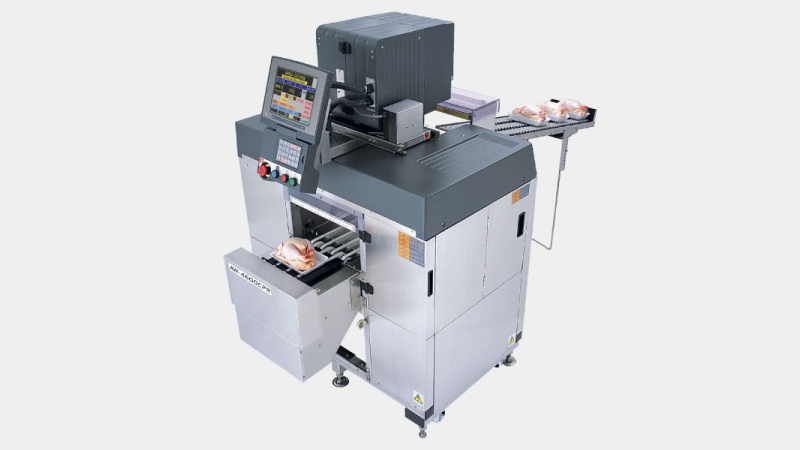

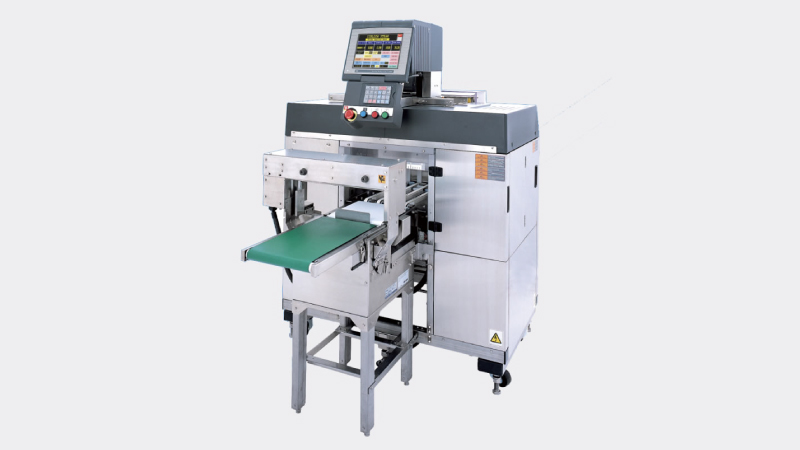

AW-4600CPR IWC
Auto infeed type
The AW-4600CPR IWC has an automatic infeed conveyor, allowing items to be fed directly from the conveyor in the previous stage. A centering device helps correct the package figure and reduces wrapping errors.
