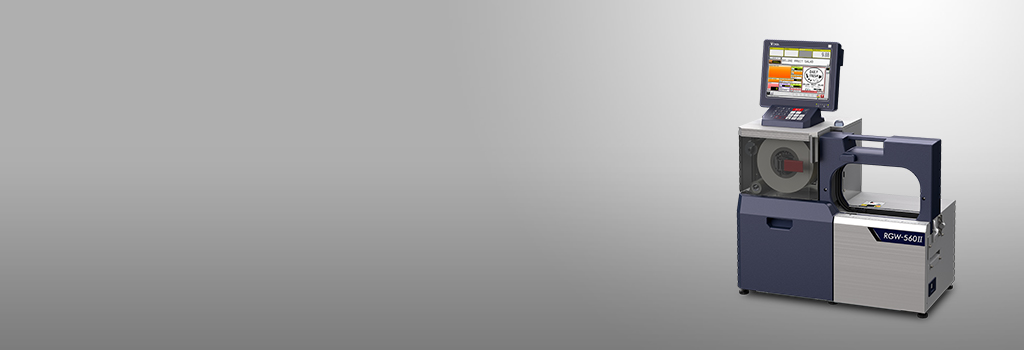

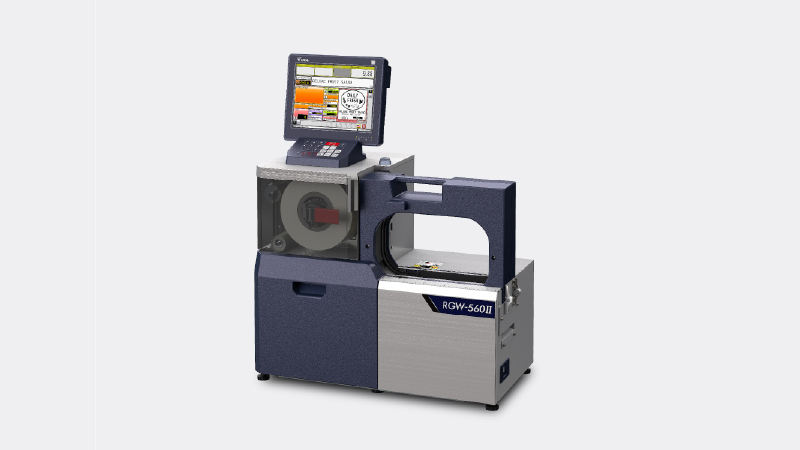

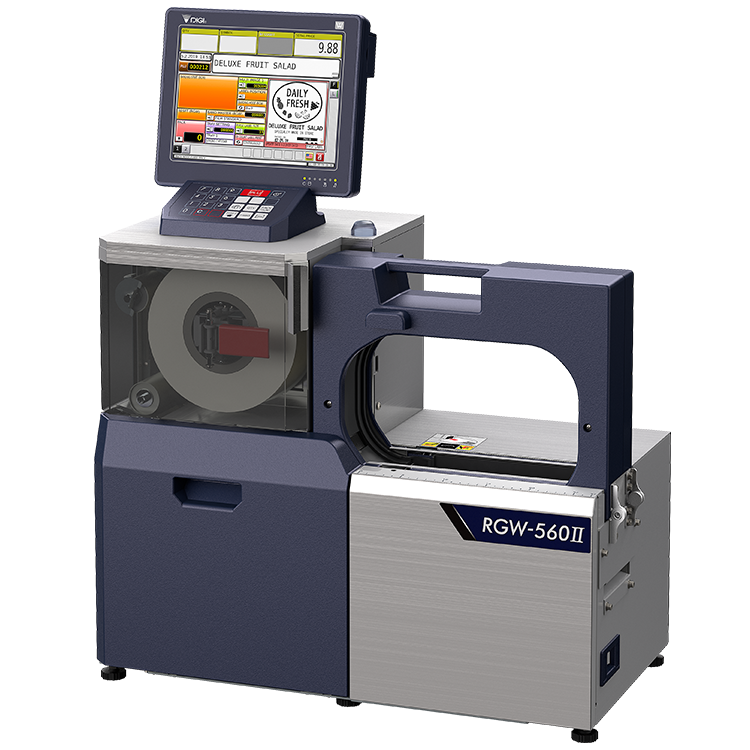

RGW-560II

Product Strap Banding Machine

Dimensions

rgw560-2_WP05_01
rgw560-2_WP05_02
rgw560-2_WP05_03

Specifications



Banding

Package size Width: 50-240mm (2.0-9.4 inches)
Height: 10-150mm (0.4-5.9 inches)
Depth: 80mm ir nire (3.1 inches or more)
Banding speed Max: 12 packages/min.
Note: The banding speed may vary depending on the length of the band format.


Printer

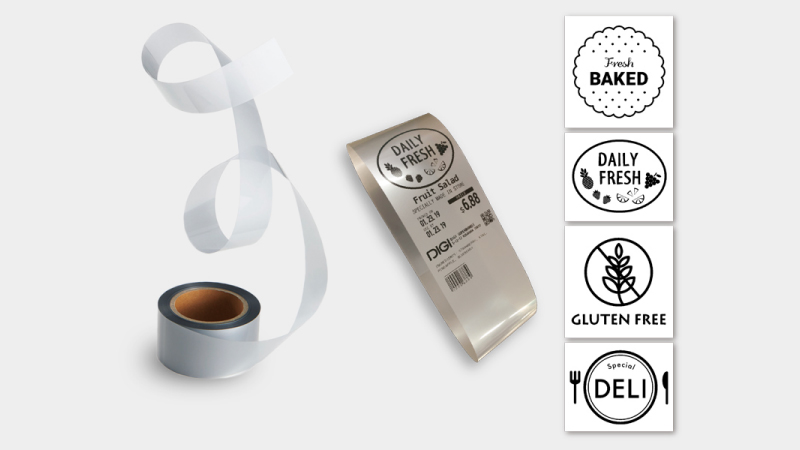

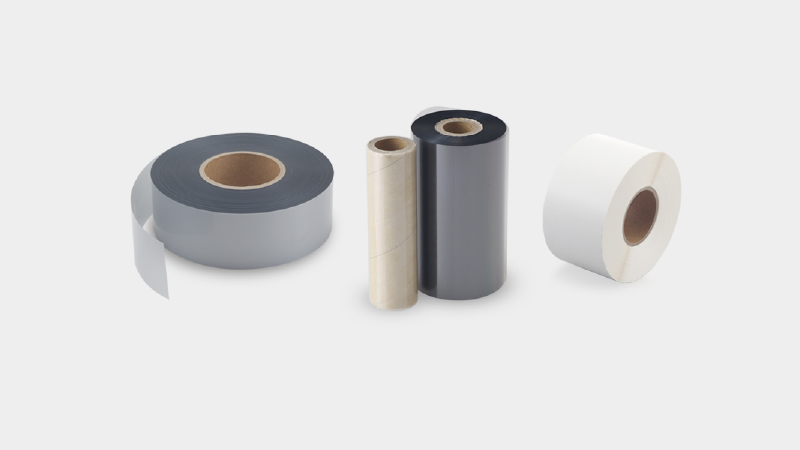

Banding film type OPP
Print method Thermal transfer
Dot density 11.8dot/mm (300dpi)
Film width 60mm
Printing area Max. 300mm (Between 95mm to 395mm from top of banding label)


Operation console

Display panel TFT LCD color (10.4 inches) touch panel
Operation keys Mechanical keys and touch panel
Memory for programmable files 18GB


General

Power source
and power consumption
AC 100-120 or 220-240V, 50/60Hz  280W
Net weight ・Apporpx. 41.4kg (RGW-560Ⅱ)
・Apporpx. 38kg (RGW-560ⅡCT)
Operation humidity 40 to 80%RH with no condensation
