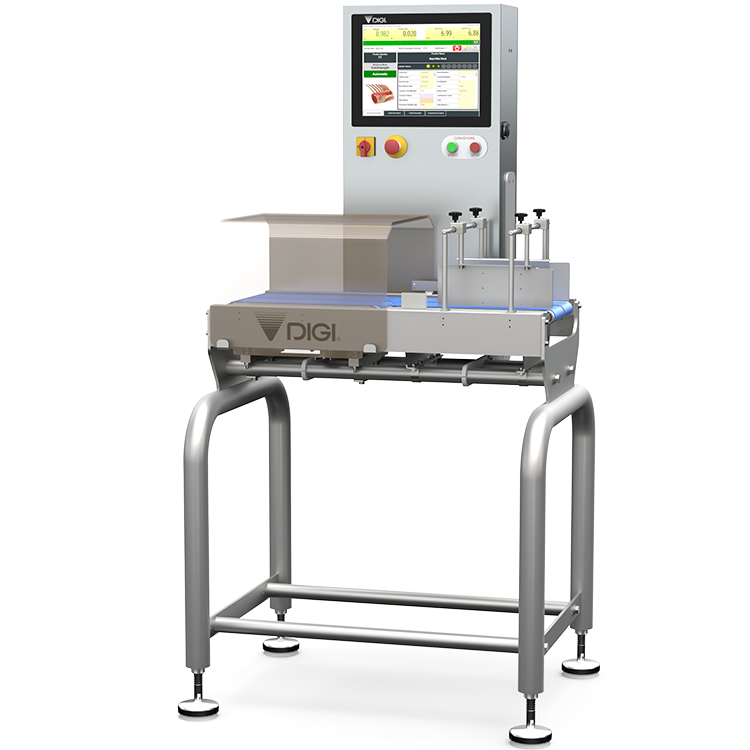

Compact, Single-Framed Checkweighing System For High Productivity
CW-800
Industria alimentareCaratteristiche principali
The CW-800's compact, single-framed design makes it ideal for integration into existing lines. With a pack speed of up to 150ppm, its high productivity will ensure targets are met.
Automatic Checkweighing of up to 150ppm
Understanding the demands of the modern production environment, the CW-800 has been designed with a direct drive conveyor system that provides reliable processing of up to 150 packs per minute.

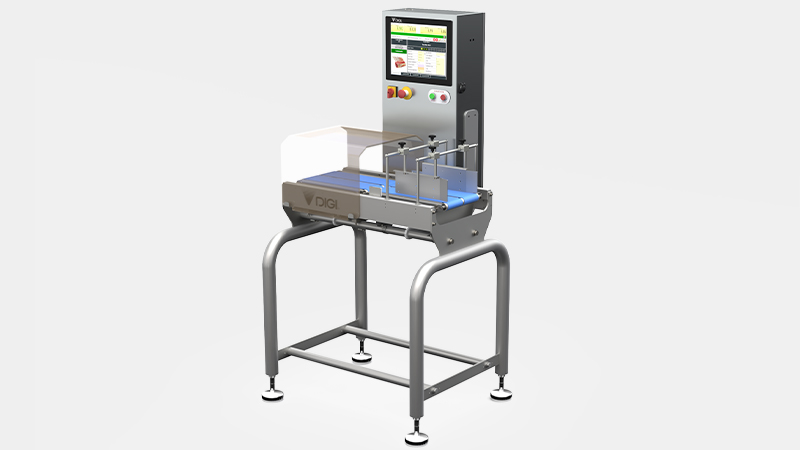

Compact Design
The CW-800 is based on a single 304L grade stainless steel frame, ensuring that valuable floor space is not used unnecessarily. Please refer to 'specifications' for all dimensions.

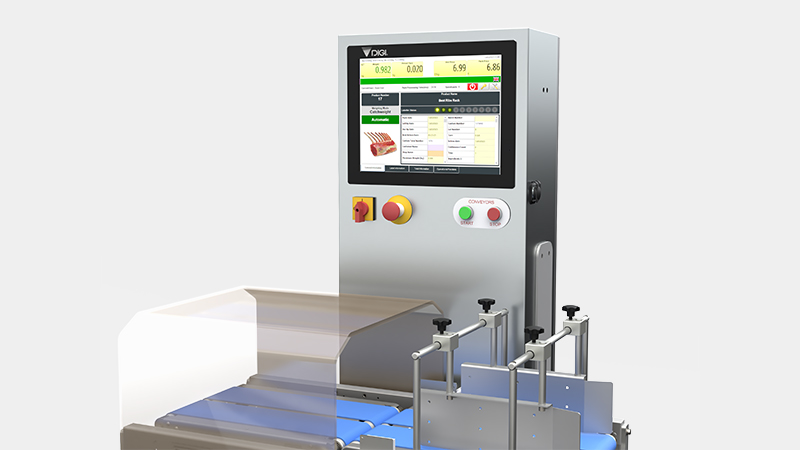

User-Friendly Interface
The CW-800 uses an industrial PC, utilising DIGI’s WorldView software running on Microsoft® Windows® operating system. WorldView provides flexible software control for the automation and performance of DIGI's full range of Checkweighers and Weigh Price Labelers.
Dati tecnici

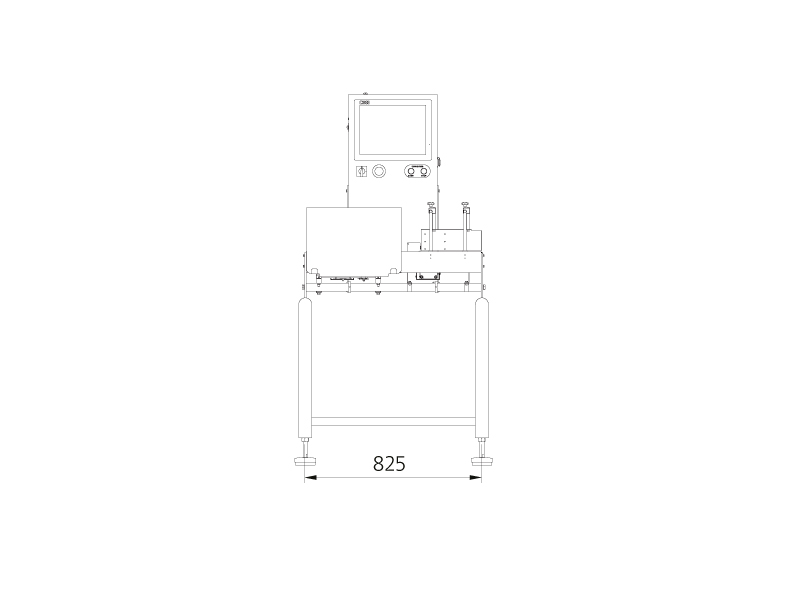

Dimensioni
Weighing
| Capacity | Max 6 kg | ||
|---|---|---|---|
| Single Interval | e= 1g | ||
| Pack Speed | up to 150 packs per minute | ||
| Pack Size | L80-300mm x W40-250mm | ||
Display
| Screen | 15" Colour LCD touchscreen |
|---|---|
| Touch panel | XGA a-Si TFT LCD Resistive touch |
Operation
| Weighing Modes | Fixed Weight, Average (Emark) |
|---|---|
| Communication | Ethernet, USB, RS232 |
| Operating System | Windows 10 OS |
| Language | Multi-lingual Unicode |
| Software | WorldView (embedded application) |
| Database | SQL |
| Connectivity | Remote programming and control |
| Connectivity to meet industry standards | |
| Customisable output data | |
| Interconnectivity to back-office data management |
General
| Power Supply | 220-240V(115V Option) 50/60Hz AC Single Phase |
|---|---|
| Operating Temperature | 0 to +30°C |
Standard Features
| Scale Cover | 'lift-off' formed polycarbonate |
|---|---|
| Sensors | Overhead retro reflective |

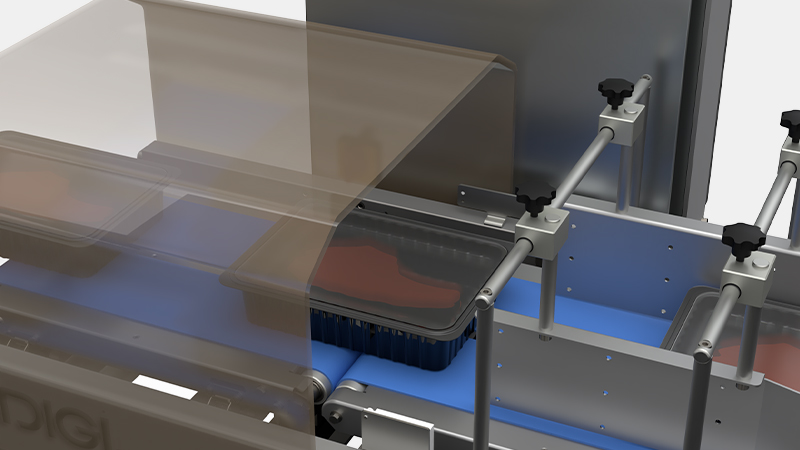

| Pack Guides | Adjustable width pack guides |
| Conveyors | Blue belts |
Varianti

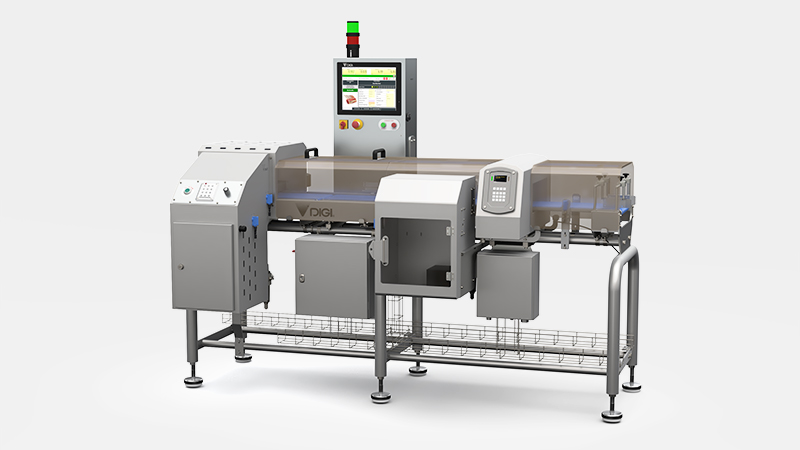

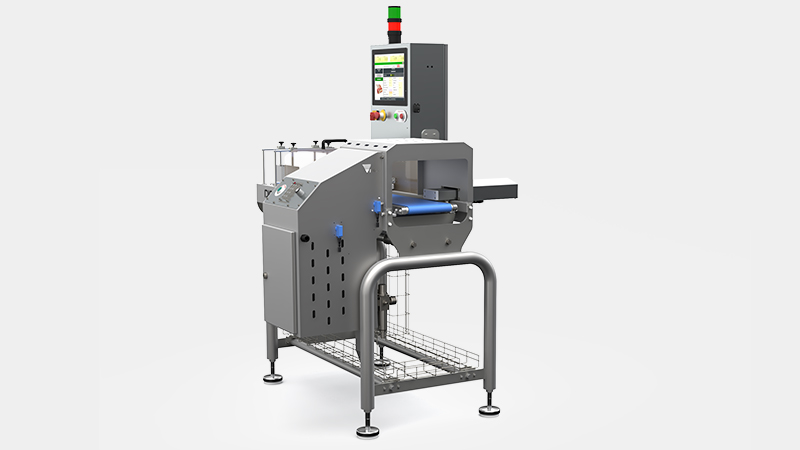

CW-800 with Rejection (CW-800RJ)
